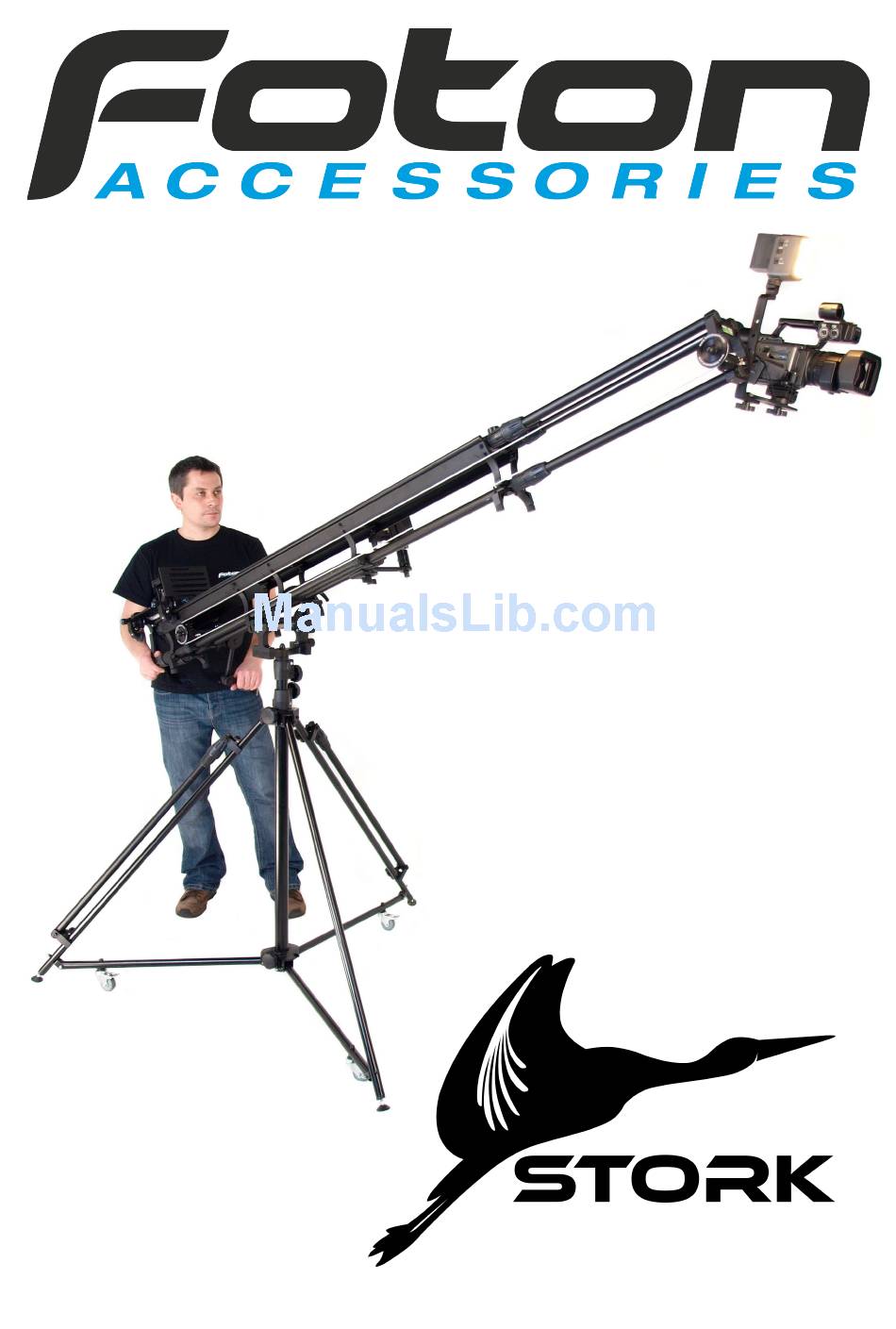

- Page 1 SmartCrane...
- Page 2 Dear Customer, thank you for choosing SmartCrane “STORK”. This unique product is combination of professional Crane and fully functional Slider. SmartCrane gives cameraman brand new possibilities, letting him capture images from unusual angle or taking dynamic and smooth shots. Thanks to innovative solutions, Crane's Head keeps right Camcorder vertical position independently of the boom movement.
-
Page 3: Basic Information
1. Basic information. Specifications: Maximum boom length - 365 cm Minimum boom length - 182 cm Tripod maximum height - 145 cm Maximum operation height - 310 cm Slider length - 160 cm Packaging: Trolley and accessories Boom (Slider) Tripod Weight: Tripod - 9.9 kg Boom (Slider) - 8.7 kg... - Page 4 2. Assembly. To assemble the SmartCrane “STORK”, you need to mount the boom (Slider) in the holder on top of the Tripod (1) and secure it with knobs 2 and 3. Next you need to put the brake on and lock it with knobs (5 and 6).
- Page 5 3. Tripod. Tripod legs are equipped with regulated feet that let you level SmartCrane despite of bedding. Tripod is supplied with three wheels for easy SmartCrane transportation. Each such wheel is equipped with own break which let you stabilize SmartCrane properly. If you’d like to use wheels instead of feet, first you need to loosen the knob (9) and push the leg bracing down.
- Page 6 Before you start Crane operations, you’ll need to set right arm length first. Next you’ll have to put the cord on the head's and the crank's wheels (10). “STORK” is supplied with three cords o odpowiednio dobranej długości. of different length. The choice is based on set arm length.
- Page 7 Three basic regulations (12, 13 and 14) helps you to level camcorder properly. That means that should keep right vertical position while let freely. Mounting additional weights (15) at the end of crane arm is necessary for proper crane functionality. Telescopic system lets you prolong arm’s length on both ends which facilitates crane leveling.
- Page 8 5. Slider. To prepare Slider for work, first you’ll have to set boom (Slider) in desired position and then secure it with additional supporting arms (17 and 18). Supporting arms applied properly guarantee sliders stability. Telescopic design of supporting elements (17 and 18) allows easy and secure adjust of Sliders position.
- Page 9 160 cm Slider may be used as a separate device. Thanks to adjustable feet it may be properly leveled on different bedding and surfaces. You may also use surrounding equipment, f. e. chairs, stools or tables as mounting basis, to get right high or angle.
- Page 10 6. Trolley. After mounting trolley on sliders rails you may link it with the cord (19). With linked trolley, you can use the crank as a trolley drive. Trolley is equipped with double set of wheels with adjustable grip. In horizontal and oblique sliders position, additional wheels act as brakes.
- Page 11 In vertical sliders position, trolleys head may be mounted at 90 degrees angle for easier operations. While not used, trolley may be attached at the end of cranes arm for easier storage. It also helps to get right crane balance.
- Page 12 Thank you for choosing our product. We've made all the possible effort to make SmartCrane “STORK” product of the best quality and exceptional functionality. Please let us know, if operating our product creates any questions or this User Guide does not explain any issue in sufficient way.
