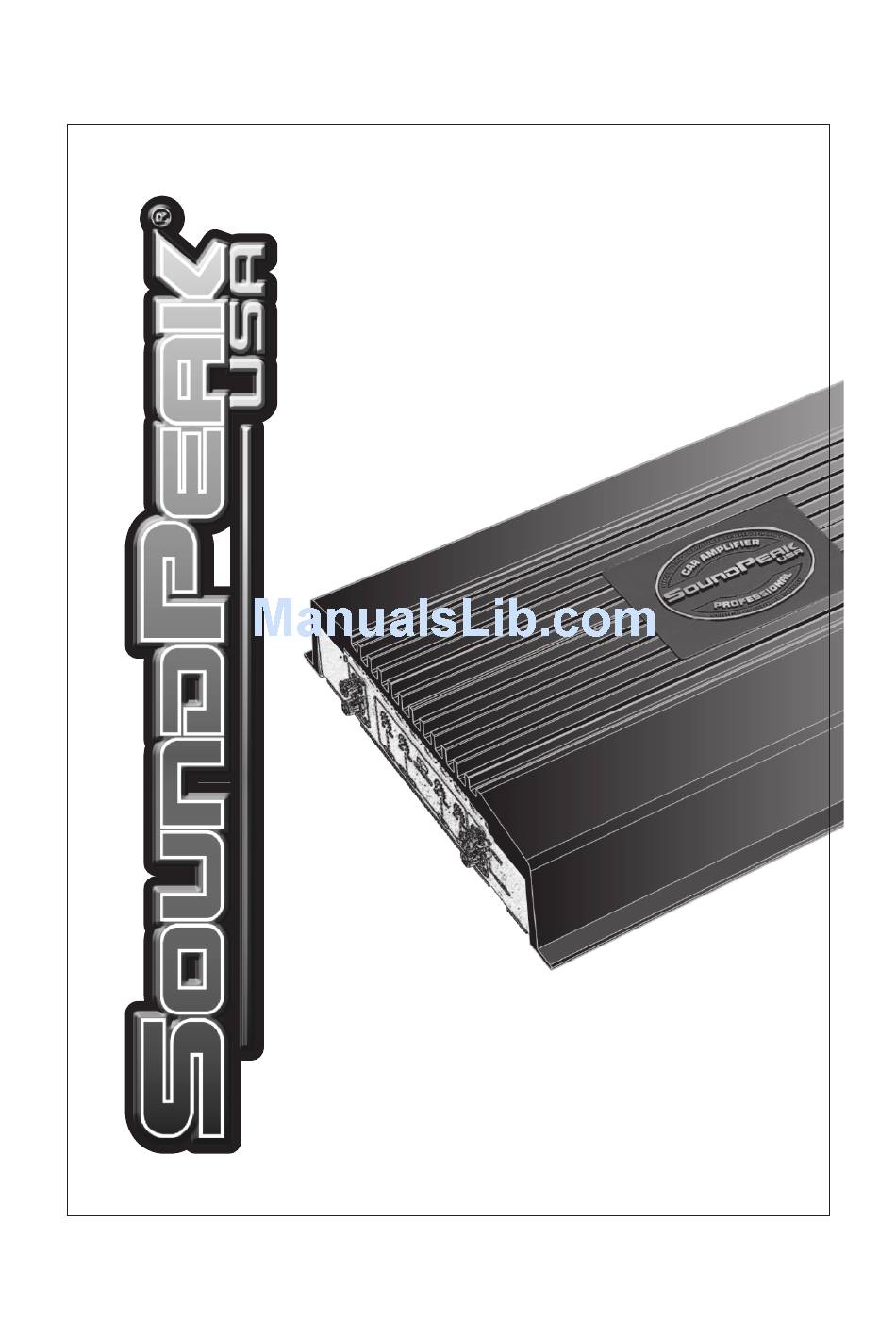

- Page 1 OWNER'S MANUAL Super Natural Sound High Performance Technology SP-1500.2 dbPRO SP-2000.2 dbPRO SP-2300.2 dbPRO...
- Page 2 FEATURES [SP-1500.2 dbPRO] 2/1 Channel Bridgeable Class A/B Amplifier MOSFET PWM Power Supply Stable into 1 Ohm Load Workable 24dB Octave Crossover Slope Variable Low Pass Filter (LPF) Variable High Pass Filter (HPF) HPF/FULL/LPF Selectable Switch Variable Bass Boost On/Off...
- Page 3 RCA CONNECTION [SP-1500.2 dbPRO / SP-2000.2 dbPRO / SP-2300.2 dbPRO] INPUT OUTPUT CH1/L CH1/L REMOTE BASS SENSITIVITY SONIC BOOST FULL Prot. 30Hz 250Hz 50Hz 500Hz 18dB Power CH2/R CH2/R Wired Remote Control to INPUT of ADDITIONAL AMPLIFIERS HEAD UNIT The amplifier is equipped with RCA type signal input for low level input.
- Page 4 POWER CONNECTION [SP-1500.2 dbPRO / SP-2000.2 dbPRO / SP-2300.2 dbPRO] SPEAKER OUTPUT POWER BRIDGE GROUND to REMOTE Turn-on from HEAD UNIT Recommended Ampere SP-1500.2 dbPRO:150A (External Type Fuse) BATTERY HEAD UNIT SP-2000.2 dbPRO:250A (External Type Fuse) SP-2300.2 dbPRO:300A (External Type Fuse)
- Page 5 SPEAKER CONNECTION [SP-1500.2 dbPRO / SP-2000.2 dbPRO / SP-2300.2 dbPRO ] 1 Channel Bridged Speaker Impedance 2~8 ohms SPEAKER OUTPUT CH1-MONO SUBWOOFER BRIDGE 2 Channel Stereo SPEAKER OUTPUT Speaker Impedance 1~8 ohms BRIDGE 3 Channel Tri Mode CH3-MONO SUBWOOFER SPEAKER OUTPUT...
-
Page 6: Trouble Shooting
TROUBLE SHOOTING This power amplifier has protection features to prevent damage from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, protection LED will light up and system will be turned off. Prior to checking the wiring for any fault, you should turn all level controls down and turn off power. -
Page 7: Specifications
SPECIFICATIONS [SP-1500.2 dbPRO] Rated power output -RMS power, 4 ohm stereo 280W x 2CH -RMS power, 2 ohm stereo 500W x 2CH -RMS power, 1 ohm stereo 750W x 2CH -RMS power, 4 ohm bridged 950W x 1CH -RMS power, 2 ohm bridged... - Page 8 Designed and Engineered in USA. Made in Korea...
