Bluecctv BHR20-V801 Manual

IR WATERPROOF CAMERA
BHR20-V801
MANUAL
FEATURE
1 . New generation, new technology Aurora
2. This camera is incredibly flexible to install with its 3-axis camera con-
struction, which makes the camera ceiling, wall or slope mountable.
3. This product is weather-proof to resist rain, snow and other weather
factors(IP66).
4. 20M range visible in total darkness with 20pcs of IR LEDs.(Indoor)
5. Supreme Resolution(700 TV-Line)
6. Day & Night function
7. Support 4 different privacy zone
8. DWDR(Digital Wide Dynamic Range)
9. Multi function : High Light Mask, Lens Shading Compensation, Motion
Detection
1 0. Dynamic IR : When IR LED is turned on in B/W, the objects can be
clearly identified due to the function thatdecreases screen saturation
ofobjectswithina shortdistance.
1 1 . Multi-language full OSD support
CAUTION
1 . Please study the instruction manual before your applications and
keep it for your future reference.
2. Do not flash LED light directly on the eyes when LEDs are on.
3. Do not install the camera on a unstable surface.
It will cause falling or other hazards.
4. Do not use improper power, it could cause fire or electric shock.
(Use the AC adaptor 1 2V DC regulated, 1 A)
5. Do not disassemble or re-model the camera, it could cause fire,
electric shock or other hazards.
6. Stop using the camera when you find a malfunction like smoke or
unusual heat, it could cause fire or electric shock.
7. Due to the possibility of water leakage, do not cut or peel off the
cable. In case you cutor peel off the cable, the warranty will be void.
8. Do not adhere dangerous articles to the camera.
9. Power cable or video cable should be always loose.
Do not keep the cables tight or twisted.
1 0. Do not leave the unit along with an unstable stand or table.
1 1 . Please use the camera unitwithin given temperature and electricity limit.
1 2. Please make sure that installation should be done by qualified service
person only.
1 3. Do not disassemble the unit by yourself. When there is problemwith
the unit please contact after-sale service center or the shop where
you bought.

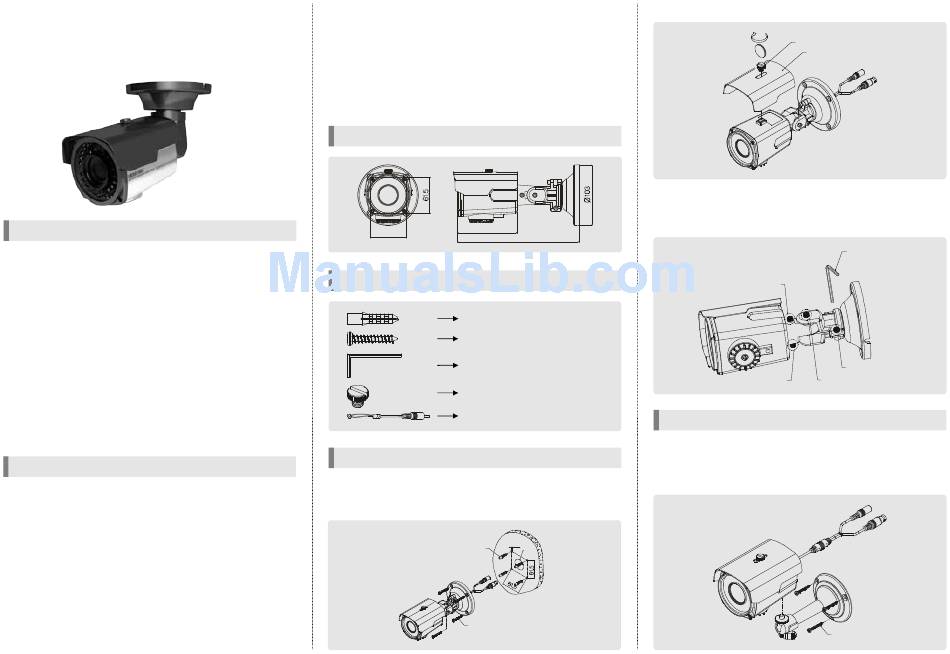

DIMENSION
DSP adopted.
ACCESSORIES
HOW TO INSTALL(Built-in bracket type)
1 . Make a hole of Ø 25mm in diameter for passing cable.
2. Drill four holes on the wall or ceiling and insert the anchors.
3. Arrange the cables and fix the screws.
1 02
61 .5
207
ANCHOR 6x30, 4EA
SCREW 4x35 TP1PAN SUS, 4EA
WRENCH 3mm L TYPE, 1 EA
SUNVISOR BOLT, 1 EA
Extra video output cable for installation ,
1 EA(option)
Ø 6
ANCHOR 6x30, 4EA
Ø 25
SCREW Tp14x35, 4EA
4. Attach the sunvisor and fix the sunvisor fixing bolt.
BOLT
SUNVISOR
5. Loosen the bolt A, C-1and C-2 by using the 3mmwrench included.
6. Face the direction of the camera to monitor.
7. Tighen the bolt A, B, C-1 , C-2 to complete adjustment.
BOLT C-1
BOL T C-2 BOLT B
HOW TO INSTALL(Stand bracket type - Option)
1 . Attach the bracket to the camera's bottom hole tightly.(In case of
installing the camera on the ceiling, attach the bracket to the
sunvisor fixing bolt hole on top of the camera.)
2. Fix the camera and bracket on the wall or ceiling.
WRENCH
BOLT A
SCREW, 3EA
