User Manual for XS2500

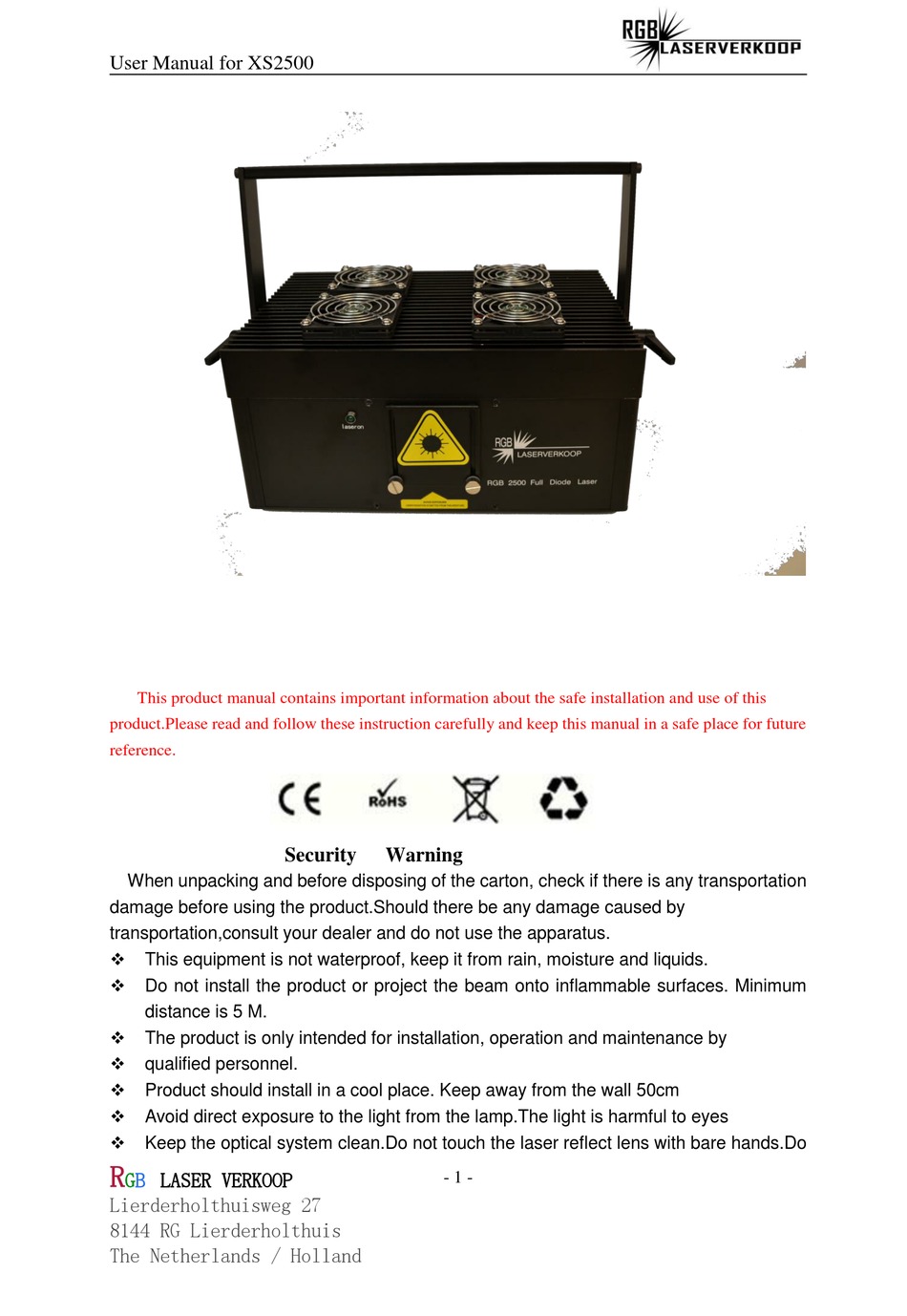

This product manual contains important information about the safe installation and use of this
product.Please read and follow these instruction carefully and keep this manual in a safe place for future
reference.
When unpacking and before disposing of the carton, check if there is any transportation
damage before using the product.Should there be any damage caused by
transportation,consult your dealer and do not use the apparatus.
This equipment is not waterproof, keep it from rain, moisture and liquids.
Do not install the product or project the beam onto inflammable surfaces. Minimum
distance is 5 M.
The product is only intended for installation, operation and maintenance by
qualified personnel.
Product should install in a cool place. Keep away from the wall 50cm
Avoid direct exposure to the light from the lamp.The light is harmful to eyes
Keep the optical system clean.Do not touch the laser reflect lens with bare hands.Do
R
GB
LASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
Security
Warning
- 1 -
Advertisement
Summary of Contents for RGB Laserverkoop XS2500
- Page 1 User Manual for XS2500 This product manual contains important information about the safe installation and use of this product.Please read and follow these instruction carefully and keep this manual in a safe place for future reference. Security Warning When unpacking and before disposing of the carton, check if there is any transportation damage before using the product.Should there be any damage caused by...
- Page 2 If you have any questions,don't hesitate to consult our dealer or manufacturer. XS2500 laser projector adopts embedded technology which enable laser moving,scaling,rotating,turn spin and gradually draw,animation,text,broken pen,wave laser effect can be achieved easily.
- Page 3 User Manual for XS2500 6.Modulating signal: 0~30K Analogue 7.Laser Patterns:256 pieces built-in laser patterns 8.DMX Channel:12CH 9.Scanner system: 30 kpps 10.Control signal:DMX-512 international standard signal 11.Control mode:Music,auto,master-slave and DMX-512l,ILDA Control 12.Cooling system:fan 13.Operation environement :Indoor 14.Operation temperature:-10°C～40°C 15. Net Weight : 8 kg 16.Dimension Size : mm...
- Page 4 User Manual for XS2500 This product accepts digital control signals in protocol DMX512(1990).The amount of lighting fixtures connected in parallel is no more than 32.Connect the DMX controller's Output to the first lighting fixture's Input cable with a 2 core XLR signal cable(Shown as above ),connect the first lighting fixture's Output cable to the...
- Page 5 User Manual for XS2500 Description CHANNEL NUMBER FUCTION 0-73 Light closing 74-110 PRG mode 111-147 ILD mode Modes 148-184 Audio mode 185-221 Auto Mode 222-255 Hand-operating Pictures/Files Hand-operating PRG/ILD mode 0-255 Choosing files Pictures changing，changed with each two numbers. Flash/Files...
-
Page 6: Troubleshooting
User Manual for XS2500 102-118 Cyan 119-135 White red green blue four colors subsection 136-152 Blue Yellow Purple Cyan four colors subsection 153-169 White red green blue purple cyan seven colors subsections 170-186 White red green blue four color subsection... - Page 7 User Manual for XS2500 Power connection is not correct.Re-connect the power. The product doesn't Power supply is damaged or abnormal.Call a switch on qualified personnel to fix it. Connection of control board is not correct.Call a qualified personnel to fix it.
