Summary of Contents for GE Security NetworX NX-216Z8

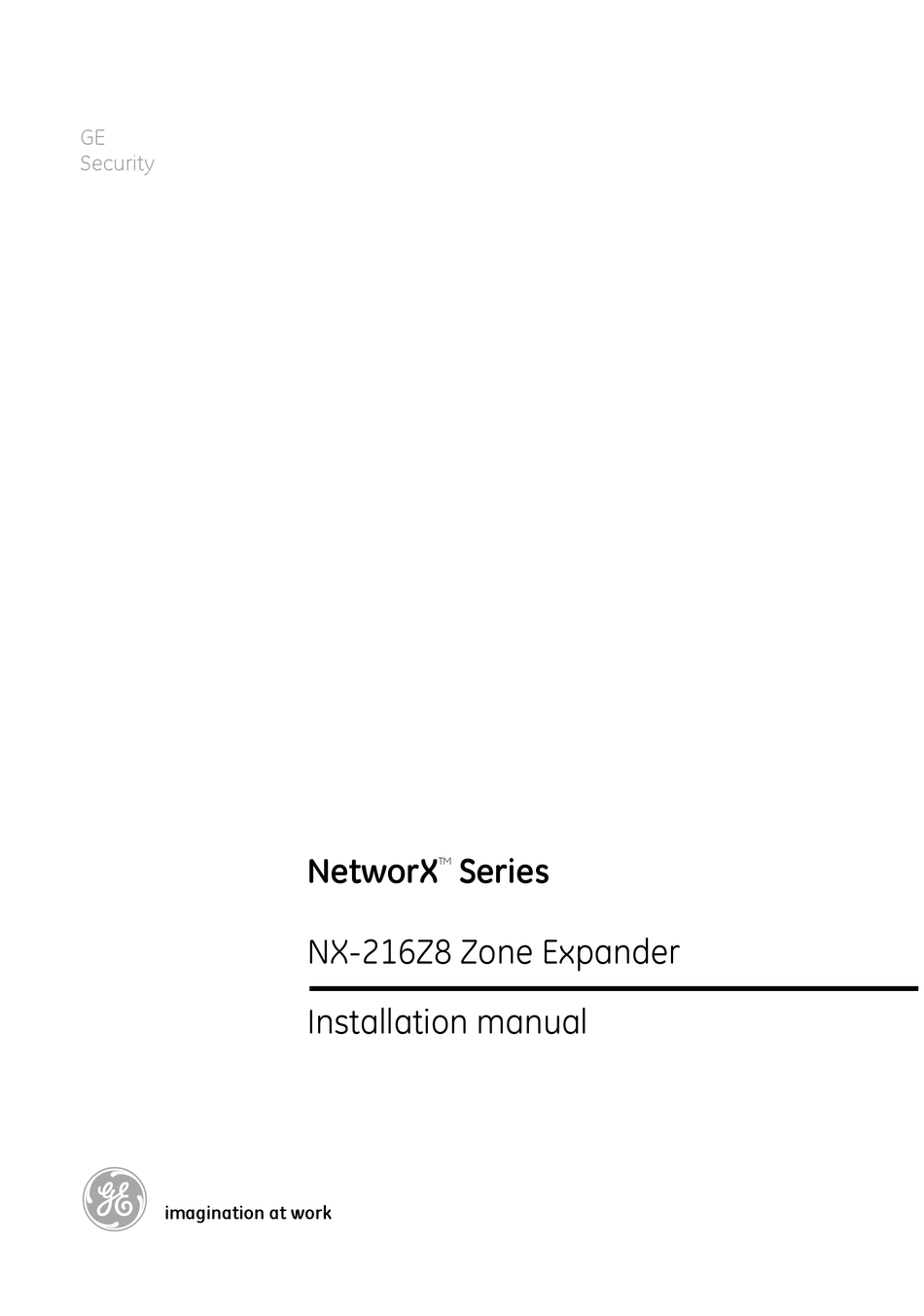

- Page 1 Security NetworX Series NX-216Z8 Zone Expander Installation manual imagination at work...
-
Page 2: Table Of Contents
ONTENTS CONTENTS ....................................2 GENERAL INFORMATION................................3 ORDERING INFORMATION ................................. 3 INSTALLING THE NX-216Z8................................ 4 ENROLLING THE NX-216Z8 EXPANDER ........................... 4 PROGRAMMING THE NX-216Z8 EXPANDER MODULE ......................5 NX-216Z8 ...............................5 ROGRAMMING THE VIA THE KEYPAD ENTERING THE PROGRAM MODE..................................5 SELECTING THE MODULE TO PROGRAM...............................5 PROGRAMMING A LOCATION.....................................5 EXITING A LOCATION ......................................5 EXITING THE PROGRAM MODE..................................6... -
Page 3: General Information
GENERAL INFORMATION The NX-216Z8 is a microprocessor-controlled 8 zone expander for the NX-8 control panel. Up to five NX-216Z8 expanders can be added to the NetworX control panel with a maximum zone count of 48 zones. Each expander has an optional tamper switch and power isolator making it ideal for use in a remote location. -
Page 4: Installing The Nx-216Z8
NX-216Z8 NSTALLING THE The first thing that must be decided is the starting zone of this particular zone expander. The starting zone must be on a boundary of eight (8) zones. The eight (8) zones then move out from this starting position. There are stick-on zone labels to indicate the zone numbers that you select. -
Page 5: Programming The Nx-216Z8 Expander Module
NX-216Z8 ROGRAMMING THE EXPANDER MODULE Programming the NX-216Z8 via the LED keypad ENTERING THE PROGRAM MODE To enter the program mode, press [*]-[8]. At this time, the five functions LED’s (Stay, Chime, Exit, Bypass and Cancel) will begin to flash. Next, enter the “Go To Program Code” (factory default is [9]-[7]-[1]-[3]). -
Page 6: Exiting The Program Mode
EXITING THE PROGRAM MODE When all the desired changes in programming have been made, it is time to exit the program mode. Pressing the [Exit] key will exit this programming level, and then return to the “Select a Module to Program” level. If no additional modules are to be programmed, pressing the [Exit] key again will exit the program mode. -
Page 7: Programming Data
Programming data Programming data is always one of two types. One type of data is numerical, which can have values from 0-15 or 0-255 depending on the segment size. The other type of data, feature selection data, is used to turn features on or off. Use the following procedures with these two data types: NUMERICAL DATA: Numerical data is programmed by using the numeric keys of the system keypad to enter a number from 0-255. -
Page 8: Zone Configurations And Partition Selection
ONE CONFIGURATIONS AND PARTITION SELECTION Zones can be assigned to different zone configurations (zone types). The programming for all zone information is performed in the control panel. For instructions on accessing and programming the NX-8, as well as changing the characteristics of a configuration group, refer to the NX-8 installation manual. -
Page 9: Nx-216Z8 Print Layout
NX-216Z8 PRINT LAYOUT ECHNICAL SPECIFICATIONS Power supply (supplied from NX-8 control panel or NX-320 power supply): • 12 Vdc nominal: • 9 Vdc - 14 Vdc minimum/maximum: 12 Vdc Auxiliary power output (supplied from NX-8 control panel or NX-320 power supply): •... -
Page 10: Ce Declaration
CE D ECLARATION NX-216Z8 Installation manual Page 10 26/06/06... - Page 11 EMEA Distribution is a division of GE Security EMEA bvba COPYRIGHT ©2004 © GE Security EMEA bvba. All rights reserved. GE Security EMEA bvba grants the right to reprint this manual for internal use only. GE Security EMEA bvba reserves the right to change information without notice.
