- Page 1 Errors and omissions excepted. Copyright© 2012. AVSL Group Ltd. MW-6 QUAD COLOUR LED MINI MOVING HEAD Order ref: 150.448UK User Manual VERSION 1.0 150.448UK User Manual...

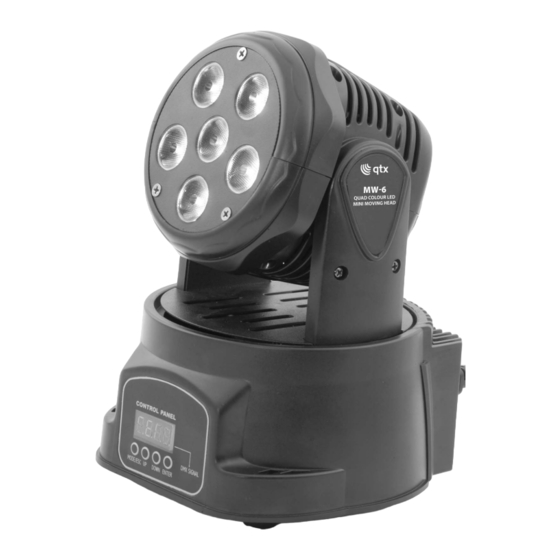

- Page 2 INTRODUCTION: MW-6 QUAD COLOUR LED MINI MOVING HEAD This compact and lightweight mini moving head uses the latest 4-in-1 RGBW Quad LED technology for the very best in colour mixing. Featuring auto and sound to light modes, this 8 channel DMX light effect is free standing or can be mounted to trussing using the supplied brackets.
-
Page 3: Package Contents
PACKAGE CONTENTS: Please check the contents to ensure that the product has been received in good condition. MW-6 Moving head x 1pcs User’s Guide x 1pcs Power Cord x 1pcs 2 x Mounting brackets If you find any accessory is missing or the machine has arrived with any problems, please contact your local dealer at once. -
Page 4: Technical Specification
CAUTION! TO PREVENT MORTAL ELECTRICAL RISK AND LONG LIFE OPERATION: TECHNICAL SPECIFICATION: For your safety, please kindly pay attention to all of the warnings listed below: Voltage : 230Vac, 50Hz Power Consumption: 80W Always plug in the power plug last and disconnect from the mains, when the device is not in use or before cleaning. - Page 5 DISPLAY CONTROLS: CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE CONNECTED: Use the plug to connect to the main power supply as follows: Wire Connection International signal Brown Live Blue Neutral LED Display Action Yellow /Cyan Earth Addr Set DMX Address Er_L If displayed there is a brake in the DMX Chain.
-
Page 6: General Maintenance
GENERAL MAINTENANCE REAR LAYOUT: To maintain optimum performance and minimize wear, fixtures should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned at least twice a month. Dust build-up reduces light output performance and can cause overheating.
