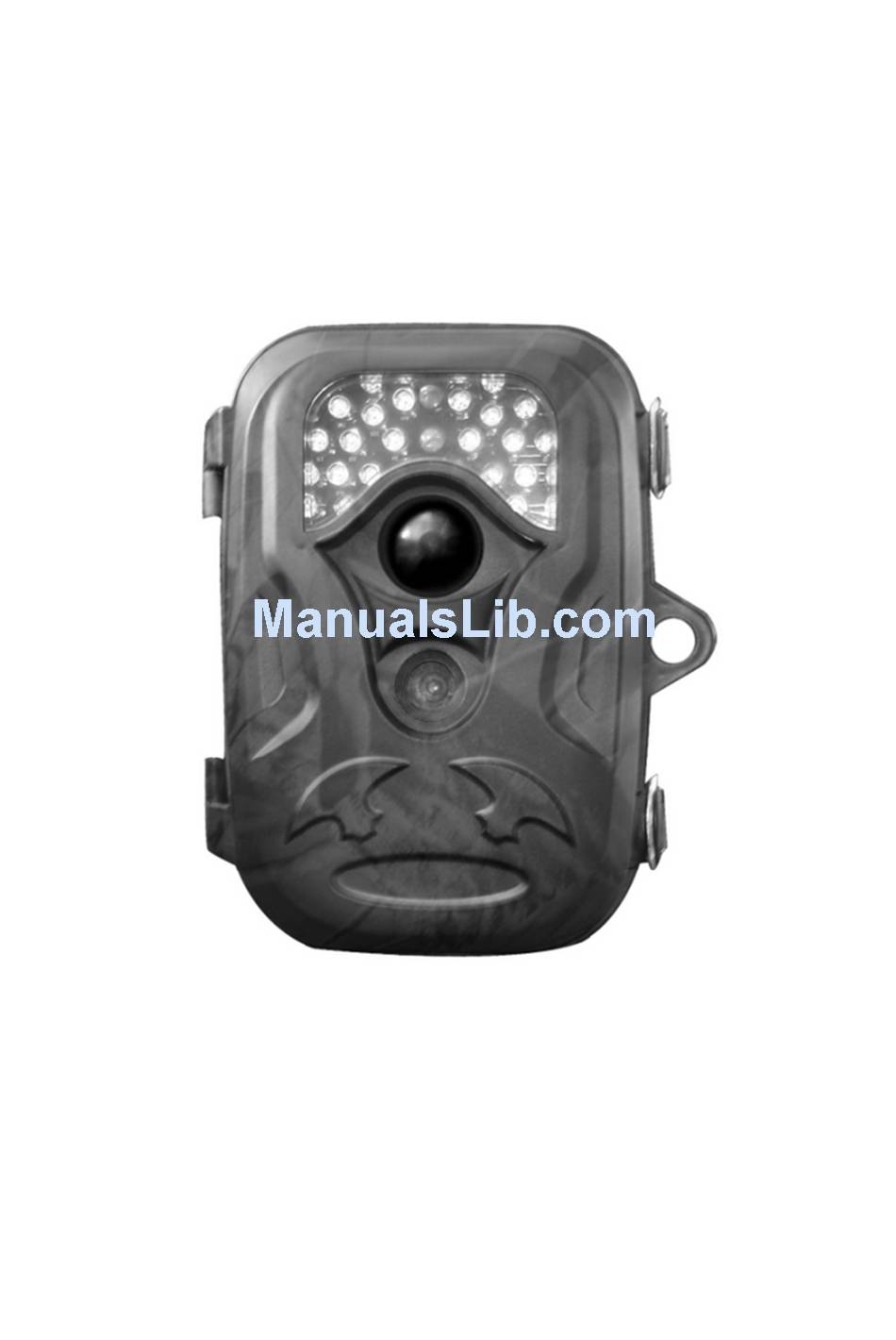

- Page 1 Scouting Trail Camera USER’S MANUAL...
-
Page 2: Table Of Contents
Contents 1. General Information .......................- 1 - 1.1 Features: .........................- 1 - 1.2 Introduction of Function ..................- 2 - 1.3 Application......................- 2 - 1.4 Attention: ........................- 2 - 2. Whole View and Details of 2.0C Series ................- 3 - 3. Brief Operation Manual ....................- 5 - Attention: ..........................- 5 - 3.1 Power (two ways power supply) ................- 5 - 3.2 Turn on camera (look the picture on right side for reference.) ........- 6 -... -
Page 3: General Information
Dear customers, thank you for choosing our 2.0C Series infra-red hunting camera. Please read this manual before using the camera. And please keep it well preserved. 1. General Information 1.1 Features: Programmable 5/8/12 Megapixel high-quality resolution. Specialized compression format: H.264 ... -
Page 4: Introduction Of Function
1.2 Introduction of Function 2.0C Series adapts IR thermo stimulation technology. Camera will automatically photograph or shoot videos when triggered by moving object. The upgraded 2.0CM can transmit the images to users corresponding to the set phone and computers via GPRS. This product is mainly used in housing security, monitoring wild animals, and tracking. -
Page 5: Whole View And Details Of 2.0C Series
2. Whole View and Details of 2.0C Series - 3 -... - Page 6 - 4 -...
-
Page 7: Brief Operation Manual
3. Brief Operation Manual Camera stores files in SD memory card. Picture format is (.jpg); video format is (.ASF). SD card has its corresponding card slot. Camera storage capacity is 8MB-32GB, and system file formats are FAT12 and FAT16. Please choose stable high-speed SD card to achieve ideal photographing speed. Attention: Close SD card protection first to edit files or to format SD card system. -
Page 8: Turn On Camera (Look The Picture On Right Side For Reference.)
3.1.2 external direct-current power supply: input, 110 ~240V，50/60Hz; output: 6 V/1 A (connect camera first, then plug in the adaptor.) 3.1.3 In “Test” mode, camera will automatically power off in 1min to save power. 3.1.4 Indicating light functions, A. Switch on--green light flickers for 5 seconds before camera gets into stand-by mode B. -
Page 9: Ir Intelligent Surveillance Mode
Video Recording: in TEST mode, you can keep recording according to the capacity of SD card and power. Press OK to stop recording whenever you want to, videos will automatically be saved onto SD card. 3.2.4 IR Intelligent Surveillance Mode Push switch to “ON”... -
Page 10: Higher-Level Operation Manual
4. Higher-level Operation Manual In order to be able to further fully operate camera, users should be familiar with the system when users are carrying on the elementary operation. The following part is a specific description of the basic setting mode and setting methods. 4.1 System Mode and Parameter Setting Users can either follow the instruction displayed in camera screen or use TV line to connect it to television to set through television screen. - Page 11 20. GPRS Mode; 21. GPRS Setting; 22. Send to; (Attention: only 2.0CM camera has 20/21/22 three function.) C. In “MENU” mode, specific settings are as following, Press key Up/Down to set, then press “OK” to confirm the settings. The icon stands for “MENU” Stands for “Left”;...
-
Page 12: Gprs Function (2.0Cm Model Only)
15. TV Out NTSC/PAL, programmable 16. Language English 17. Timer Setting Disable/Enable; Select “Enable”, you can set the beginning time and end time (hour/minute); camera will only work during the time user set. 18. Default Set YES/NO; "Yes" to get camera default settings 19. -
Page 13: Comprehensive Description Of Infrared Cameras Features
6. Open this document “GPRS.DAT” with “Microsoft Word”, edit the email accounts, phone numbers, and all the other settings; User can check MMS information of local mobile operator from following website: http://www.activexperts.com/xmstoolkit/mmsclist/ MMSC=URL; Provider APN=APN; WAP=IP; Gateway=Port Correct Setting example URL=mmsc.monternet.com APN=cmwap IP=10.0.0.172... -
Page 14: Pir Detection Distance According To Different Temperature
5.2 PIR Detection Distance according to different temperature The motion detection zone of PIR sensor could reach far away under zero degrees Celsius; but under the temperature 32 degrees Celsius, the detection zone is only around 6M. 5.3 System File Format The system file formats which camera supports are FAT12/FAT16. -
Page 15: Factory Default Settings Of 2.0C Series
6. Factory Default Settings of 2.0C Series MENU Setup Default Set Camera Mode Camera Digital Zoom Image Size Capture Number Video Size Video Lengs Audio Recording Interval Video Frames 30fps Time Stamp Set Clock 01/12/2010 .12:01:01 Senser Level Normal IR LED Format TV Out NTSC... - Page 16 Viewing Angle PIR: 105; Max View:52° IR-Flash Yes / No / 8M PIR Sensitivity PIR with 3 sensitive level: High / Normal / Low GPRS Support Mobile, Email receiving images by motion trigger GPRS Also support mobile visit the GPRS(not available now) MMS Cell Phone 0-4 Mobile Phone Number MMS Email...
-
Page 17: Trouble Shooting
8. Trouble Shooting 2.0C series Camera won’t power on 1. Make sure that you have installed at least 4 batteries in the battery compartment all stacked together. 2. Make sure that the batteries are installed correctly. 3. When moving the switch from “Off” to “Test” or “On”, the user should make sure that the switch stops in a positive position to ensure the proper mode (and do not move the switch too fast). -
Page 18: Limited Warranty
Non-GPRS model: 2.0C; GPRS/MMS model: 2.0CM. 2. IR LEDs: 1) visible 850nm IR LEDs: up to 50 feet flash range; application: animal hunting, event observation. 2) invisible 940nm IR LEDs: flash light is invisible to human naked eyes; application: instant surveillance for anti-theft and anywhere invasion evidence needed. 3) LEDs color: transparent/dark blue 3. - Page 19 chargeable renewal policy of warranty as one, two, three, or four years. Our products are warranted against defects in materials and workmanship for a period of one year from the date of original purchase. If a defect exists, we will, at our option and to extent permitted by law will (1)repair the product at no charge using new or refurbished parts;...
