Summary of Contents for Zephyr PSM Training ECHO

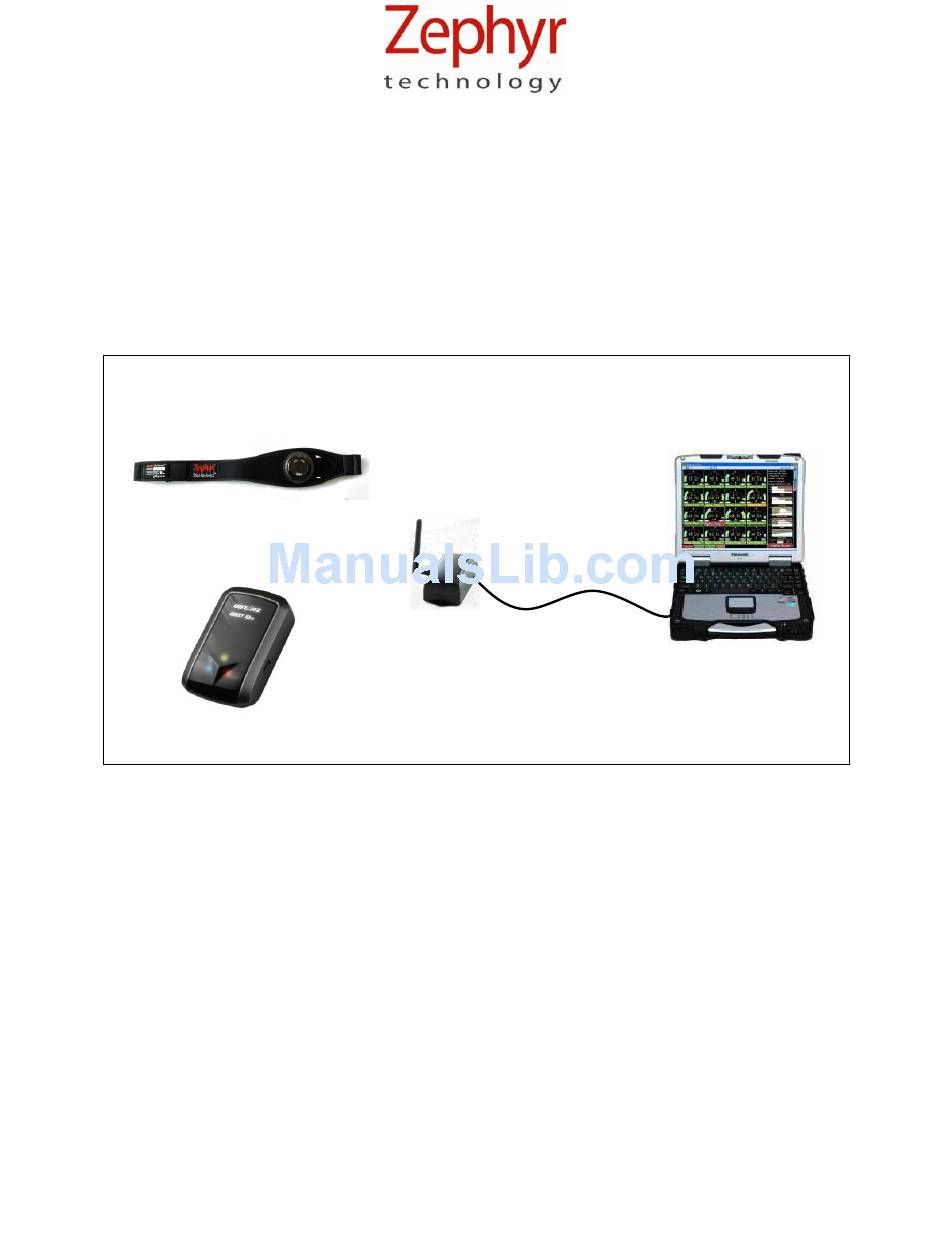

  • Page 1 PSM Training ECHO User Guide...
  • Page 2 Zephyr™ Technology products are not designed, intended or authorised for use in applications intended to support or sustain life, or for any application in which the failure of the Zephyr™ Technology product could create a situation where personal injury or death may occur.

  • Page 3: Table Of Contents

    8.1 Device Clock Synchronization ......................29 8.2 Physiological Data Anomalies ......................30 8.3 General Issues ..........................30 8.4 General Check Procedure ....................... 30 WARRANTY ............................31 Page 3 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 4: Glossary Of Terms

    Personal Computer Physiological Status Monitoring [system] Relative Humidity Zephyr™ Radio Interface Device Red / Orange / Green[ subject physiological status indication] Universal Serial Bus – PC hardware connection Velocity Magnitude Unit – a measure of activity level (in g) over a fixed time interval...

  • Page 5: Introduction

    This document contains information required to operate the Zephyr™ PSM Training system incorporating OmniSense Application software, using Zephyr components which support the ECHO radio network type. System Description The PSM Training System is a remote physiological monitoring system that utilizes Zephyr’s patented BioHarness™ product. The BioHarness™ allows the measurement of: ...

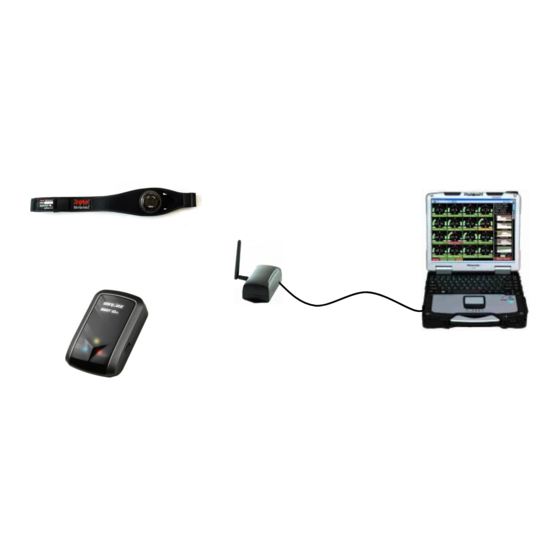

  • Page 6: System Diagrams

    7. Heart Rate (ECG) sensor locations used in the field to extend the network. 8. Breathing sensor location 4. USB connector 9. Accelerometer in device Page 6 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 7: Hardware Component Options

    PSM Training User Guide Hardware Component Options ZEPHYR Training SYSTEM CASE  Main power supply or internal Li-on rechargeable batteries  Charging / Configuration / Log Download of BioHarness modules ZEPHYR ECHO GATEWAY  Up to 300 yard range ...
  • Page 8  24 hr battery life (5200mAh)  3 hr charging  Increase range or offer more effective coverage of an area Page 8 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 9: Software Installation

     Install OmniSense Live & Analysis modules including Zephyr Cfg Tool BioHarness Log Downloader  Install drivers for all BioHarness devices Page 9 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 10: Live Operations

    2. All subject details added to system 3. BioHarness modules assigned to subjects 4. Subjects added to a Team 5. Team deployed to Live Page 10 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 11: Issue Bioharness

    Fit to Strap Moisten grey sensor pads with water Fasten at front, adjust tension for a snug fit, and rotate into position Page 11 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 12: Strap Fitting

    (~1”) to the rear only (dotted line) if the when subject inhales and chest is fully optimum location is uncomfortable. expanded Page 12 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 13: Bioharness Led Behaviour

    DEVICE STATE IN CRADLE Bluetooth/ECHO Connected Error Disabled Logging Error No records/Finished Downloading Battery Charging Charged No power HR Detect Always off Page 13 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 14: Garment Type

    Refer to the OmniSense Live help file on how to set garment type in the software. If the wrong type is set here, then posture data from the device will be invalid. Page 14 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 15: Operational Startup

    Set up at preferred location Connect Gateway to PC ACTIVITY AREA See also suggestions on optional field repeater units Start OmniSense Power on BioHarness modules Page 15 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 16: Live Screen Operation Checks

    1 second STATUS INDICATION ON START UP SENDING ESTABLISHING DEVICE DATA DATA REQUEST CONNECTION WORN (CHECK) STABILIZING STABILIZING FORWARD LEAN POSTURE CHECK Page 16 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 17: Field Repeater Units

    600 YDS ECHO REPEATER GATEWAY BEST COVERAGE Suggestions for repeater location are displayed on the label on the rear of the unit. Page 17 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 18: Gps Support

    OmniSense Live and Analysis now support GPS data. Some criteria apply:  A supported Bluetooth GPS unit must be used. This is currently a QStarz 818XT  The BioHarness module must be configured using the Zephyr Cfg Tool – see the next section ECHO Bluetooth...

  • Page 19: Configuring A Bioharness For Use With A Gps

    1. Power on your GPS device – this can be done indoors – no satellite fix is needed for this task. Go to Windows > Start > Devices and Printers Select the Add A Device button Page 19 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...
  • Page 20 Properties from the context menu. 3. The Device MAC address is the unique ID indicated Note the value in XX:XX:XX:XX:XX:XX format. Page 20 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...
  • Page 21 PSM Training User Guide 4. Now we must program the GPS MAC address into the BioModule using the Zephyr Config Tool located at C:\Program Files (x86)\Zephyr\OmniSense\Tools Enter the GPS Mac address in the GPS Device field and click the Set BT Dev 9 button.

  • Page 22: Logging

    File at the Software Utilities > BioHarness Log Downloader node . Logging Formats The BioHarness can be configured to a number of different log formats. These are set using the Zephyr Cfg Tool. Briefly, the modes are: General: 1 Hz general parameters + 18Hz breathing waveform & heart rate RR...

  • Page 23: Maintenance

    Erase all existing logs in a replacement device when assigning to a new subject, or they will be added to the subject’s data in the database at the next download session. Page 23 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 24: Charging Bioharness Modules

    A top up charge is recommended once per month if the devices are not used regularly LONG TERM STORAGE Charge the device to full capacity, then use the Zephyr Cfg Tool to switch the device off completely. Turning off the device using the central button leaves the internal clock running.

  • Page 25: Strap

    Do not iron as the strap contains conductive fibers which may be adversely affected by excessive heat. REPLACEMENT BioHarness™ Straps have no unique characteristics or calibration procedures, and can be replaced at will. Page 25 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 26: Bioharness Configuration

    Care should be taken when changing any parameters in the device. Record any settings before you change them, and seek advice from Zephyr if you are in doubt about a setting 1. Connect your BioHarness Module a single cradle or system case to a PC.

  • Page 27: Firmware Upgrades

    A full description of the update procedure can be found in the OmniSense Live Help File at the Software Utilities > Firmware Upgrades node. Page 27 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 28: Specifications

    Version 2.0 + EDR 2.4  2.835 GHz Bluetooth Operating Frequency: 2.405 – 2.480 GHz ECHO Output Power: 2 mW Bluetooth 100 mW ECHO Page 28 of 31 Ph: 1 (443) 569-3603 Fax: 1(443) 926-9402 Web: www.zephyranywhere.com 9700.0142 © Zephyr™ Technology 2014 2014-FEB-11...

  • Page 29: Troubleshooting

    PSM Training User Guide 8. Troubleshooting Zephyr strives to develop products which are user-friendly and problem free. However, human, external system or environmental factors may result in issues which can be organised into the following types: Software Installation problems: Refer to the OmniSense Software Installation Guide...

  • Page 30: Physiological Data Anomalies

    OmniSense Analysis clock not time stamp 1/1/2000 to reset internal clock resynchronized  Use Zephyr Cfg Tool to resync time General Check Procedure Carry out the following checks when in Live mode Component Indication Check / Remedy BioHarness ...

  • Page 31: Warranty

    TRAINING system and Zephyr's maximum liability shall be limited to repair or replacement of the PSM TRAINING system. Except as expressly stated above, Zephyr excludes all liability for any loss of data, loss of profit, or any other loss or damage suffered by you or any third party, whether such damages are direct, indirect, consequential, special, or incidental and however arising under any theory of law, as a result of using your PSM TRAINING system.
