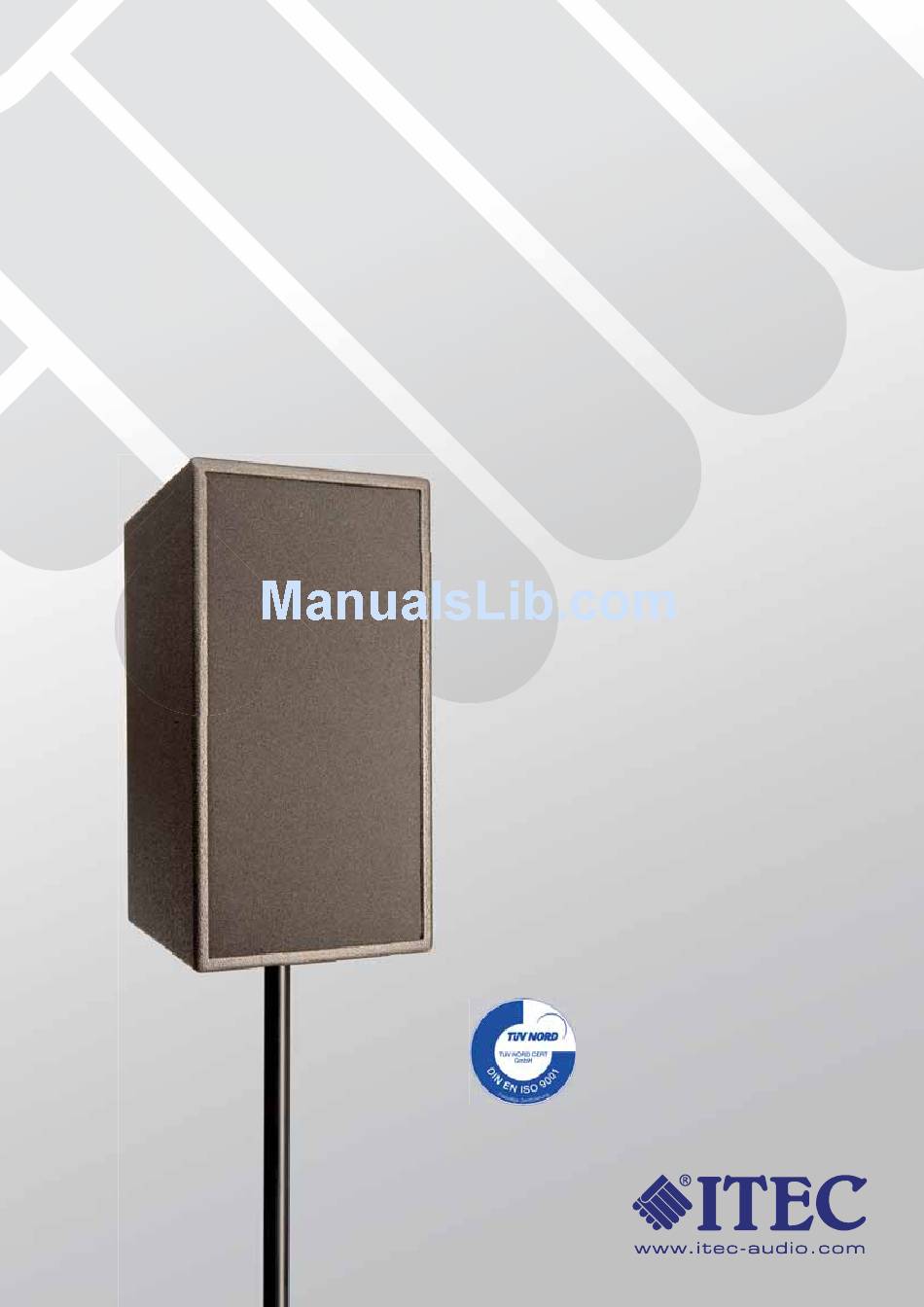

- Page 1 COMPACT-BOX INSTRUCTION MANUAL Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe...
-
Page 2: Table Of Contents
ITEC-COMPACT-BOX – yet another product in our wide range of mobile, mains independent loudspeaker systems. Use the COMPACT-BOX as an independent audio system or as a completition and amplification of existing loudspeaker systems. Use the COMPACT-BOX as an independent audio system with cable or radio microphones with playbacks fromyour tape recorder or CD player. -
Page 3: Saftey Instructions
In case the COMPACT-BOX is connected (socket 10) to the mains supply (220V), the red mains indicator light (3) will show in addition to the ON/OFF indicator light (2). As soon as you switch COMPACT-BOX the battery will start recharging immediately with the mains indicator light (3) staying On and the ON/OFF indica- tor light (2) disappearing (see 13. -
Page 4: Playback
The cinch sockets (5A) will accept any tape recorder, CD player, radio, etc. The volume can be adjusted at the corresponding control (7). Should your COMPACT-BOX have a built-in tape recorder or CD player, please do not forget to consult the instructions enclosed. -
Page 5: Using A Radio Microphone
Cable connection: the COMPACT-BOX is connected to the LECTERN SUCCESS by means of the attached cable. At the COMPACT-BOX plug the signal cable in one of the CASS/CD LINE IN cinch sockets(5a), at the LECTERN SUCCESS plug it in one of the LINE OUT cinch sockets. The volume control CASS/CD (7) lets you choose how loud the COMPACT-BOX shall be in proportion to the LECTERN SUCCESS;... -
Page 6: Recording
Do not store below a temperature of 5°C Recharge after use. Not having used the COMPACT-BOX for months we recommend you switch it on for several hours and then recharge it. 13. General advice Do not place microphones and speakers close to each other in order to avoid acoustic feedback; too great... -
Page 7: Changing Batteries Of Radio Microphones
ITEC COMPACT-BOX 14. Changing batteries of radio microphones Attention: old batteries are hazardous waste; dispose of properly! ITEC WM-716 - hand held microphone (also WM 816 and WM 702) Slide battery lid open, remove top battery and then pull the white plastic strip to remove the other two batteries from the battery compartment. -
Page 8: Controls
ITEC COMPACT-BOX 15. Controls Volume control for cable microphones ON/OFF switch Volume control for external audio source or built-in ON/OFF indicator light CASS-CD-TUNER Mains indicator light Volume control for cable microphone Socket for microphone AUTO MUTE for music attenuation LINE IN (for external audio supply) - Page 9 ITEC COMPACT-BOX The function of the buttons on the device: Play/Pause Start of the replay; new push: Pause Stop Stop the replay 1 x push = next track, hold pushed longer = fast forward motion 1 x push = start of track or previous track, hold pushed longer = fast return motion...
-
Page 10: The Integrated Usb-Player (Optional)
ITEC COMPACT-BOX 17. The integrated USB-Player (optional) The integrated USB-data link enables the connection to a USB-storage media (USB-Stick) werden. With the “Play”-Button you can start the replay. The volume is set with the controller 7 (Cass/CD). If your device decreeds a voice triggered music attenuation then consider also the in chapter 6 described mode of operations of this practical feature. - Page 11 ITEC COMPACT-BOX Display A=ALL R=RANDOM Play/Pause S=SINGLE F=FOLDER previous title next title elapsed time Total duration of the title of the title Name of Title (Lied2.mp3) Currently selected title previous folder next folder Total number of tracks playback mode on the stick...
- Page 12 ITEC COMPACT-BOX - SPECIFICATIONS 225 mm 430 mm 275 mm GENERAL Description Mobile, aktive speaker box with integrated amplifier, rechargeable battery, 3-channel mixer, power supply unit with automatic charging, high-performance 2-way speaker sy- stem Amplifier Output Power 75 W / RMS Drivers 1 cone woofer/mid-range 6.6 inch, 1 calotte tweeter 1 inch...
