Audio enhancement TLD100 Operating Instructions Manual

Ir-satellite infrared sensor/receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

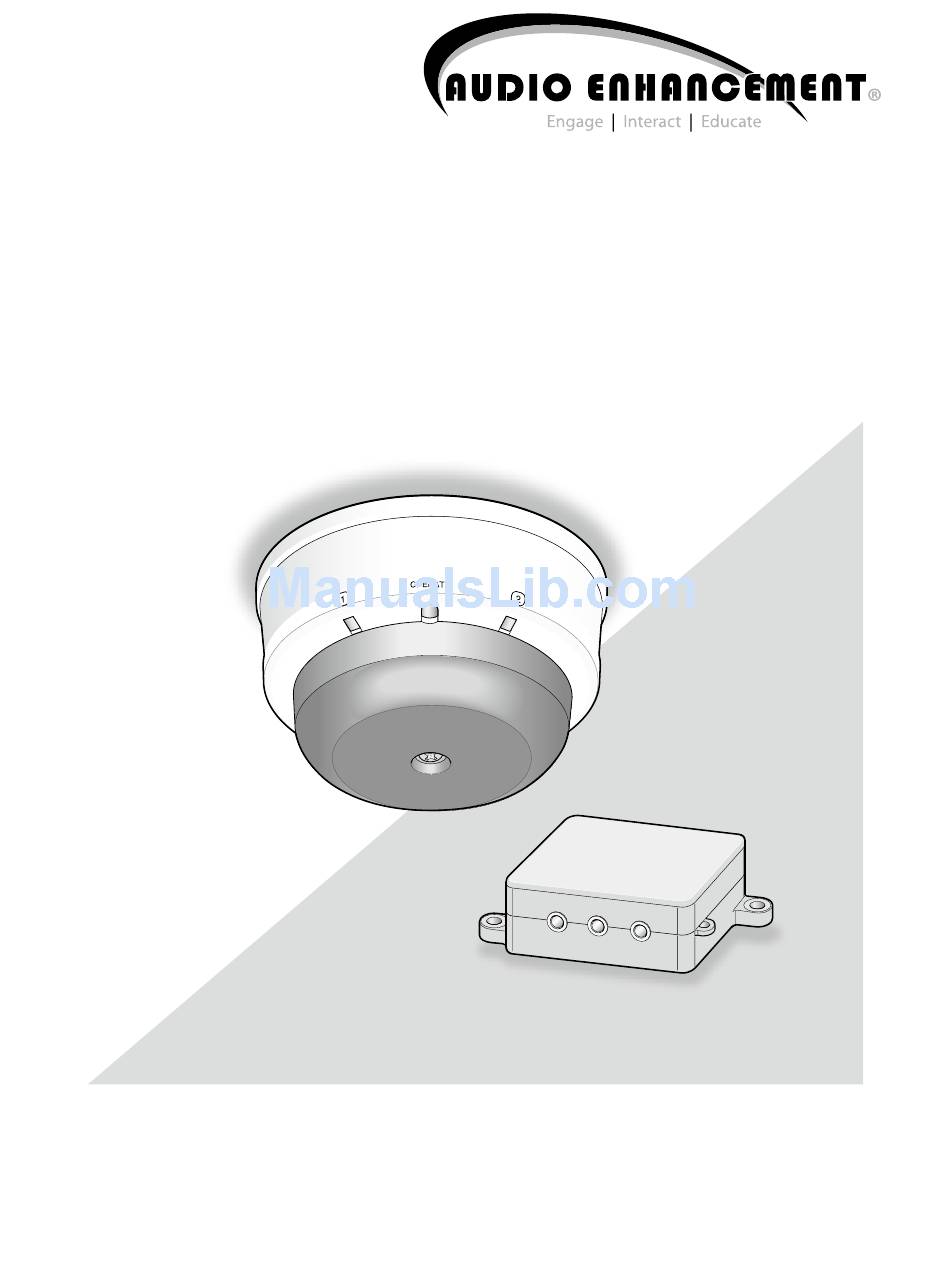

Operating Instructions

IR-Satellite Infrared Sensor/Receiver
TLD100
Model No.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLD100 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio enhancement TLD100

Summary of Contents for Audio enhancement TLD100

  • Page 1: Operating Instructions

    Operating Instructions IR-Satellite Infrared Sensor/Receiver TLD100 Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
  • Page 2 WARNING: • The main plug or an appliance coupler shall remain readily operable. • To prevent injury, this apparatus must be securely attached to the floor/wall/ceiling in accordance with the installation instructions. • The connections should comply with local electrical code.

  • Page 3: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 4: Limitation Of Liability

    ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT(S). Disclaimer of warranty IN NO EVENT SHALL AUDIO ENHANCEMENT, INC. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;...

  • Page 5: Precautions

    Precautions • Contact your dealer for installation. Make sure to use the supplied AC adaptor. Skill and experience are required for installation to • Be sure to turn off the power of this product before installation. avoid risk of fire, electric shock, injury and damage. •...

  • Page 6: Table Of Contents

    CONTENTS Important safety instructions ........................ 3 Limitation of liability ..........................4 Disclaimer of warranty .......................... 4 Precautions ............................5 Features ..............................6 Caution about interception of transmission ..................7 Caution about external-device control function ................... 7 Caution about feedback blocker ......................7 Major operating controls and their functions (Sensor) .................

  • Page 7: Caution About Interception Of Transmission

    Caution about interception of transmission This product is a wireless system using infrared, and the transmission and reception of audio signals are possible within the range that the infrared light can reach. If any third party is within the range of the infrared, the audio signals can reach anywhere unless there are obstacles (such as walls).

  • Page 8: Major Operating Controls And Their Functions (Sensor)

    Major operating controls and their functions (IR-Satellite or Sensor) Front Back RS-232C Infrared sensor cover CAUTION: To receive only the infrared by the inner sensor, the • DO NOT connect this device to any type of Ethernet visible light is filtered out by this infrared sensor cover. (LAN) system.

  • Page 9: Major Operating Controls And Their Functions (Conversion Box)

    DIP Switch up are not updated until the power is turned off and This switch can select the operation mode of each then back on (excluding DIP Switches No. 7 and 8). function equipped in this unit (see page 17). The settings of this switch are updated at the time of turning on the power.

  • Page 10: Operating Procedures

    Insert the plug of the supplied AC adaptor into Operation indicator the wall outlet. The operation LED of the sensor/receiver lights green. TLD100 Turn on the power switch of the microphone. (MTD-09, MHH-09) Power indicator The reception LED indicator of the sensor/receiver lights green depending on a channel to be received.

  • Page 11: Precautions For Installation

    Precautions for installation The installation should be carried out following local standards for electric products. Warning • Be sure to contact your dealer for installation. Before installing, turn off the power of the connecting product. In addition, be sure to read "Precautions" carefully and follow the instructions.
  • Page 12 Plasma television screens generate infrared interference. It is not recommended to use a plasma display in the same room where the TLD100 is installed. However, if a plasma screen must be used, install it in the following way and after confirming operation, use it very carefully.

  • Page 13: Functions And Settings

    Functions and settings Functions • Microphone override function Microphone Level CH1/CH2 This is a function where the audio level of LINE IN is auto- matically adjusted to lower when the audio input of the LINE IN microphone CH1 or microphone CH2 is provided. The attenuation of the audio level is –12 dB.
  • Page 14 About the feedback blocker This is a function when a feedback loop is generated as the microphone is used in close proximity to a speaker. An integrated filter is automatically selected according to the generated audio frequency, and reduces the uncomfortable feedback loop.
  • Page 15 If the IR-Satellite Sensor/Receiver (this unit) is not turned off, the F2 terminal will be open (reset) 3 minutes after not receiving a signal from the microphone. Type Actions Flash! Microphone 3 LEDs flash in blue. Flash! F1 CNT (Press) Default setting: TLD100 Open Closed 300 ms terminal Open Commands are Flash! sent periodically Flash! Flash! Flash!
  • Page 16 • F2 ACK function When an F2 ACK signal is received, the reception LED indicator of this unit (CH1 or CH2) turns from red to green. When, after turning the microphone off and on again, the F2 signal has not been received for three minutes, the operation LED turns from red to green to indicate the normal operating state.

  • Page 17: Dip Switch Setting

    • DIP switch setting * Default setting In this illustration, the side with each switch number is OFF. Name Function Microphone Override Selection of microphone override function Activated* Deactivated Tone ON/OFF Selection of tone signal from this unit at Tone ON Tone OFF* operating volume button of MTD-09 Tone Level High/Low...

  • Page 18: Sensor Setting

    MHH-09 MTD-09 Battery cover Channel select switch (inside the battery cover) • Sensor setting For TLD100: No setting is necessary. CH1 and CH2 are fixed for reception channels. TLD100 For EDS-07: Channel select switch (1/2) Switch the channel select switch to select [1/2].

  • Page 19: Connections

    Connections Connection of sensor/receiver • LINE IN connection Connect the audio output of a projector, CD player, DVD/VCR or similar line level output to the LINE IN L/R connector of the dome sensor/receiver. The line input of this terminal is a stereo input. Audio signals are mixed to monaural signals internally.
  • Page 20 Connection to control terminal • Cable processing Tightening torque: 0.2 N·m {0.14 lbf·ft} Before connection, prepare the cable as shown in the (max.) drawing at right. Suitable electric wire: AWG 28 - 14 Note: • Stranded wire is highly recommended. •...
  • Page 21 Connection of RS-232C The TLD100 can send and receive commands and status information via RS-232C to external devices. The external device is connected with a 3 wire cable. The cable should be cross-connected. In other words, the transmitting signal (TxD) of this unit is connected to the receiving signal (RxD) of the external device, and the receiving signal (RxD) of this unit is connected to the transmitting signal (TxD) of the external device.

  • Page 22: Connection Of Power Supply

    Connection of power supply The supplied AC adaptor is connected to the conversion box and the adaptor plug is inserted into the wall outlet after ensuring that all the connections are correct. Conversion box DC IN Supplied AC adaptor To power outlet * Make sure to use the supplied AC adaptor.
  • Page 23 Please note that a common, off-the-shelf, antenna splitter will not function in this capacity. Receiving from CH1 and CH2 Approx. 11 m {36 feet} Approx. 8 m Approx. 22 m {72 feet} {26 feet} TLD100 Room Approx. Approx. {26 feet} {26 feet}...
  • Page 24 Connect the Infrared Sensor (EDS-07) to the EXT SENSOR connector of this unit. Set the No. 8 of the DIP switch to OFF. EDS-07 TLD100 Set the No. 8 of the DIP switch to OFF. • When connecting two or more Infrared Sensors (EDS-07) by utilizing the Infrared...
  • Page 25 Make a connection so that the length between the Infrared Sensor (EDS-07) and this unit is kept within a range of 20 m {66 feet}. EDS-07 20 m {66 feet} or less TLD100 • When connecting two or more Infrared Sensors (EDS-07) by utilizing the Infrared Sensor Coupler (AE-DCF) "Coaxial cable: A"...

  • Page 26: Installation

    Installation Warning • Before installing, be sure to turn off the power of the infrared sensor/receiver. There is a risk of electric shock. Installation of the IR-Satellite Sensor/Receiver • When using a ceiling panel When installing the sensor and cables in a removable ceiling, follow the instructions shown below. Make a hole in the ceiling panel.
  • Page 27 Warning • Before installing, be sure to turn off the power of the infrared sensor/receiver. There is a risk of electric shock. When not using a ceiling panel If the coaxial cables cannot be routed through the ceiling, install this •...
  • Page 28 Installation of the conversion box Warning • Be sure to turn off the power of this unit before installation. Otherwise electric shock may result. Connect the necessary cables to the conversion box. Connect the LAN cable, AC adaptor, and audio cables by following the description on page 19. Attach a tying band to the conversion box.

  • Page 29: Serial Communication Command

    Serial communication command Preface The volume of this unit and functions set by the DIP switch can be remotely controlled by an external device using the serial communication command. Note: • The settings of the functions that can be set with the DIP switch can be overwritten by sending a serial command. The serial command has the higher priority and will override the DIP switch settings.
  • Page 30 Examples of sequence • Examples are shown below. Refer to the next page or later for further information on command. • For a setting command (a command starting with S): an echo is returned. [CR] [LF] Step1 Setting Response (echo) [CR] [LF] This unit...
  • Page 31 Command list Command Content Type 1st parameter 2nd parameter Command example Query about this Query None None $QPW[CR][LF] unit power state Response 1: POWER ON None $QPW:1[CR][LF] Notification of Change 1: MIC1 input 0: MIC OFF $CCS:1:1[CR][LF] microphone power notification 2: MIC2 input 1: MIC ON state...

  • Page 32: Volume List

    Command Content Type 1st parameter 2nd parameter Command example Tone setting Setting 2: Tone 0: Disable $SDS:2:1[CR][LF] 1: Enable Response Same as above Same as above $SDS:2:1[CR][LF] Tone Level setting Setting 3: Tone Level 0: Low, 1: High $SDS:3:0[CR][LF] Response Same as above Same as above $SDS:3:0[CR][LF]...

  • Page 33: Troubleshooting

    Troubleshooting Symptom Cause/solution Ref. pages No reception Does the operation LED light? – → Check the AC adaptor connection. Check the connection between the sensor/receiver and conversion box. Is the power of the microphone turned on (is a battery installed)? Operating Instructions of MHH-09, MTD-09 →...

  • Page 34: Specifications

    Specifications General Power (DC IN) 24 V DC (use the specified AC adaptor (included)) Input current 160 mA (At 4 pieces of extended sensors (EDS-07) connected) Operating temperature range 0 °C - 40 °C {32 °F - 104 °F} Dimensions Sensor/receiver: ø152 mm x 76 mm (H) {ø6 inches x 3 inches (H)} * Excluding F-type connector Conversion box: 25.5 mm (H) x 67 mm (W) x 67 mm (D)

  • Page 35: Included Components

    Interface TO CONVERSION BOX RJ-45 (LAN type connector), * original format Note: Never make a connection to a LAN connector that is compatible with TO RECEIVER Ethernet and PoE. EXT SENSOR F-type connector (adjusted interface sensor: EDS-07, AE-DCF) Other functions Volume control Configurable when the microphone, MTD-09, is used or by control through RS-232C...
  • Page 36 Audio Enhancement www.AudioEnhancement.com For customer support, call 800.383.9362 14241 S. Redwood Rd., Bluffdale, UT 84065 U.S.A. © Audio Enhancement, Inc. 2012 Printed in U.S.A. DC - 40135.01...
