Summary of Contents for davicia DAVIVENDY MA07-02/B

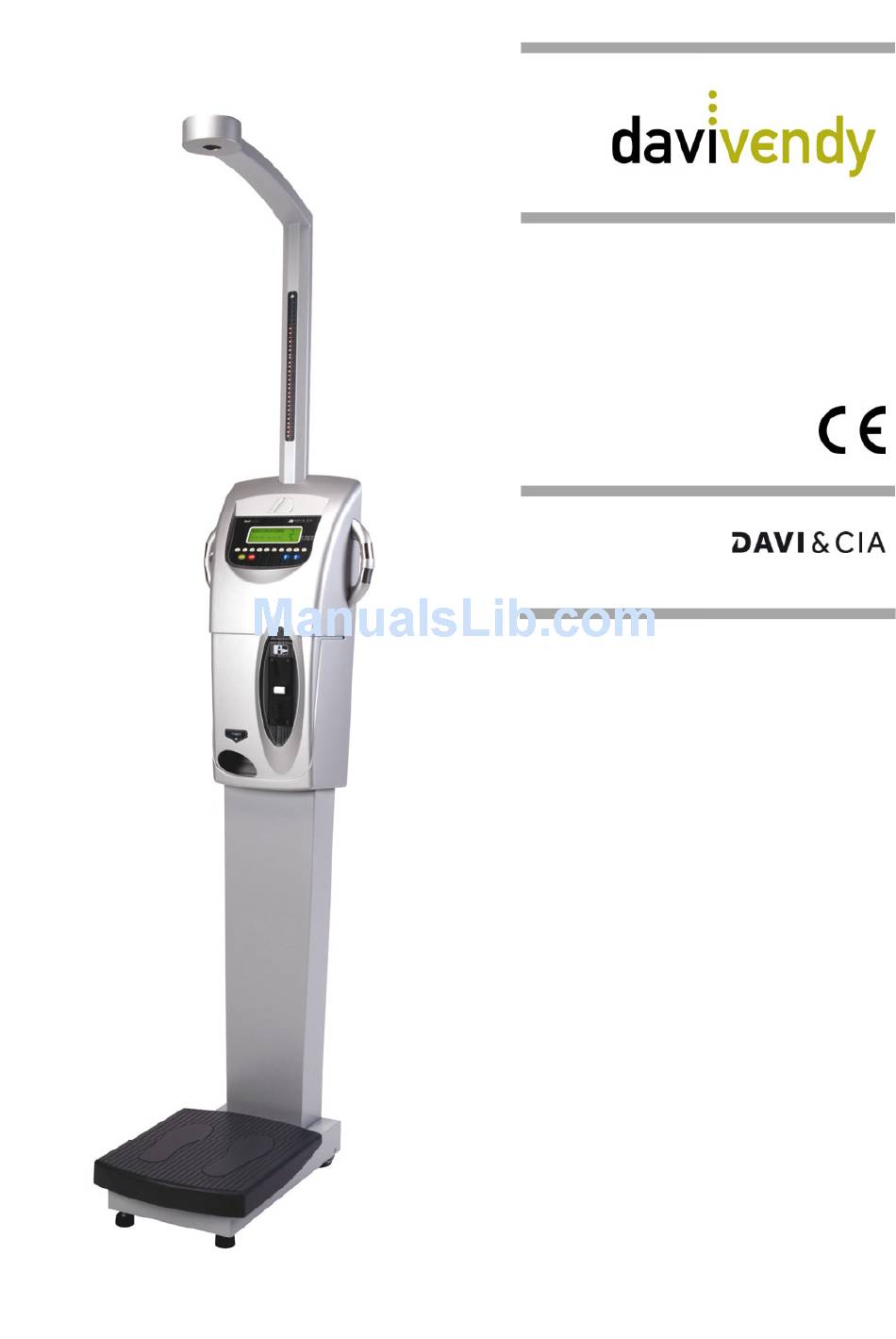

- Page 1 USER’S MANUAL MA07-02/B 15/09/2011 www.davicia.com...
-
Page 2: Table Of Contents

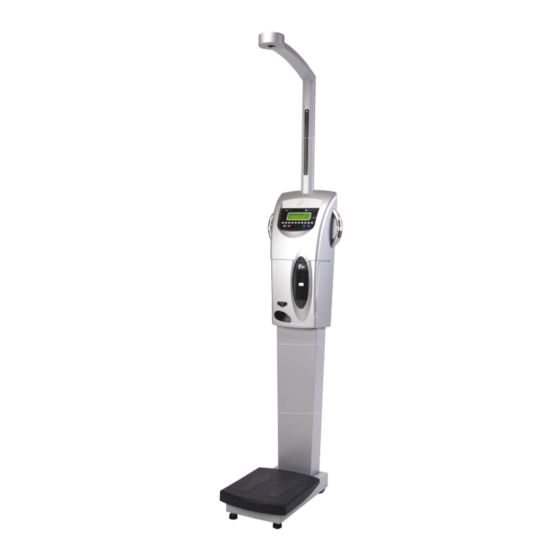

USER’S MANUAL MA07-02/B INDEX Page 1. 1. 1. 1. DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION 2. 2. 2. 2. INSTALLATION INSTALLATION INSTALLATION INSTALLATION 2.1. Location and setting 2.2. Startup 3. 3. 3. 3. OPERATION OPERATION OPERATION OPERATION 3.1. Advertising and prices 3.1.1. Using smart cards 3.2. - Page 3 USER’S MANUAL MA07-02/B 1. DESCRIPTION (1) Height meter sensor (7) Body fat sensors (2) Height meter arm and leds (8) Access door for paper roll change (3) LCD Display (9) Power switch, fuses, cable (4) Chip card reader (5) Coin slot (6) Ticket tray...
-
Page 4: Location And Setting
USER’S MANUAL MA07-02/B 2. INSTALLATION DAVIVENDY multifunction scale comes factory configured according to the voltage of each country and is ready for operation immediately after unpacking. Connect the device to the power supply via the power supply cable. It is necessary that the outlet is provided with grounding. -
Page 5: Advertising And Prices
USER’S MANUAL MA07-02/B 3. OPERATION After the equipment startup appears the home screen. This means that the scale has done the calibration This means that the scale has done the calibration This means that the scale has done the calibration This means that the scale has done the calibration successfully and is ready for use. -
Page 6: Weight And Height
USER’S MANUAL MA07-02/B SMART CARD 1> WEIGHT, HEIGHT 0,10€ 2> + BODY FAT 0,20€ 3> BLOOD PRESSURE 0,30€ On this screen, select the service you want. The header shows the current credit of the smart card (in the example € 5.00) and using the keys you can select the desired service, its price indicated next to it. -
Page 7: Blood Pressure
USER’S MANUAL MA07-02/B Measurement To weigh the baby, use the measurement option "Weight and height" as you would with an adult. The equipment detects that it is a weight below 15 kg, understands that we are weighing a baby then: The divisions are 10 g Only measures the weight, does not measure the height Overrides the process of measuring the body fat... - Page 8 USER’S MANUAL MA07-02/B People with osteoporosis or low bone density Pregnant Patients on dialysis Furthermore, due to varying water content in certain circumstances, avoid the use of Body Fat Index: Immediately after making energetic exercise After a sauna After the bath After drinking alcoholic beverages After drinking lots of water or after eating (it is advisable to wait 1 or 2 hours)
-
Page 9: Printed Results
USER’S MANUAL MA07-02/B The equipment does a measurement of the resistance of our body through the 4 electrodes. If contact with the electrodes is not right or the hands are wrongly placed on the sensors, the resistance value will not be correct which may lead to an inaccurate calculation of the percentage of body fat. -
Page 10: Accounting
USER’S MANUAL MA07-02/B 4. SETUP 4.1. ACCOUNTING 4.1. ACCOUNTING 4.1. 4.1. ACCOUNTING ACCOUNTING To issue an accounting ticket for the equipment: Access the maintenance door used for the paper roll change (see 1. Description – # 11) Press the black button that is located among the internal wiring of the equipment When you press the button, the printer will issue three copies of a ticket with the accounting of the equipment 4.2. -
Page 11: Price Programming
USER’S MANUAL MA07-02/B Time setting Select <2> to set the time, the display shows the following message: ADJUST CLOCK HH:MM Where HH:MM indicates the format in which we must enter the new time. Introduce the data using the alphanumeric keypad, first hour and then the minutes, in 24-hour format. If we want to enter the 3:35 pm, type out 1535. -
Page 12: Programming The Ticket
USER’S MANUAL MA07-02/B ADVERTISING 1>PROGRAM 5>EXIT Press <1> to start. With this option you can program a text, which appears in the display distributed in 4 lines. We can program a total of 19 characters per line, considering that the blanks are also considered as a character. It is not necessary to center the text, the equipment will center the text automatically. -
Page 13: Programming The Logo
USER’S MANUAL MA07-02/B We have 30 ticket lines to program, 5 in the header and 25 on the bottom. We have 4 possible character types as the following: Code Code Code Code Sample Sample Sample Sample Character Type Character Type Character Type Character Type Text alignment... - Page 14 USER’S MANUAL MA07-02/B SMART CARD PROGRAMMING 1> CREATE 2> CHARGE 3> DISCOUNT IMPORTANT: To access the cards program menu a card must be inserted in the reader. Create a new smart card Press <1> to start: SMART CARD PROGRAMMING Creating smart card… The equipment will create a new card with which we have inserted then in the reader.
-
Page 15: Cleaning The Blood Pressure Cuff
USER’S MANUAL MA07-02/B 5. MAINTENANCE AND CLEANING The only maintenance that can be performed by unqualified personnel is the change of paper roll. Do not perform repairs on your own. In case of breakdown contact the Technical Support Service. If the power cable is damaged, it must be replaced by the Technical Support Service or qualified personnel in order to avoid dangerous malfunctioning. -
Page 16: Equipment Disposal
USER’S MANUAL MA07-02/B Insert the paper through the roller Make sure the paper is straight and in the centre according to Figure Lower the lever Insert the paper through the cutter as in Close the cover the Figure Cut off the piece of paper sticking out Switch on the equipment 5.3. - Page 17 USER’S MANUAL MA07-02/B 6. TROUBLESHOOTING Error Indicator Error Indicator Error Indicator Error Indicator Cause Cause Cause Cause Correction Correction Correction Correction WEIGHT ERROR Error weight reading Failure in load cell CODE 01 Failure in A/D Failure in load cell wires OVERFLOW Weight over 225 kg Failure in load cell...
- Page 18 USER’S MANUAL MA07-02/B NO PAPER Paper feed failure Paper finished CODE 41 Paper feed failure Paper detector failure CARD ERROR Smart card failure in R/W Bus I2C failure CODE 50 Card reader failure Card failure UNKNOW CARD Card not recognized Card code unknown.
- Page 19 USER’S MANUAL MA07-02/B 7. TECHNICAL SPECIFICATIONS Model: DAVIVENDY Manufacturer: DAVI & CIA C/Murcia 35 nave G E08830 Sant Boi de Llobregat Barcelona – SPAIN Display: LCD Graphic 240 x 64 pixels - 127 x 34 mm Weight: 59 kg (aprox.) Maximum external dimensions: 62 x45 x 234 cm...
- Page 20 USER’S MANUAL MA07-02/B EN 60601-1 Bioelectric Impedance Analyser: Type BF Protection against electrical overload: Class I. Protection against entry of water: Ordinary Equipment unsuitable for use in the presence of anaesthetic mixtures inflammable with air, oxygen or nitrous oxide. Scale, Stadiometer and Bioelectric Impedance Analyser: Classification according to Measuring Instrument Electromagnetic Compatibility Directive 2004/108/CE...
- Page 21 USER’S MANUAL MA07-02/B 8. WARRANTY CERTIFICATE We provide a 1 1 1 1 - - - - year year guarantee from the date of purchase. The guarantee covers manufacturing defects or year year defects occurring as a result of normal use and operation. It excludes all removable parts such as batteries, wires, power supply devices, etc.
- Page 22 USER’S MANUAL MA07-02/B 9. CE DECLARATION OF CONFORMITY FABRICANTE PRODUCTO: DAVI & CIA S.L. PRODUCT MANUFACTURER: DIRECCIÓN: C/ Murcia, 35, Nave G ADDRESS Polígono Industrial Can Calderón E08830 Sant Boi de Llobregat BARCELONA - ESPAÑA DECLARAN BAJO SU RESPONSABILIDAD QUE EL PRODUCTO: DECLARE UNDER THEIR RESPONSIBILITY THAT THE PRODUCT Nombre DAVIVENDY...
- Page 23 USER’S MANUAL MA07-02/B This manual and other support documents are available on the web www.davicia.com www.davicia.com www.davicia.com www.davicia.com C/ Murcia, 35 Nave G Pol.industrial Can Calderón. Tel. +34 93 65 4 32 32 info@davicia.com E 08830 Sant Boi de Llobregat. Barcelona. Spain Fax.
