Summary of Contents for Akai AS005RA-750
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...

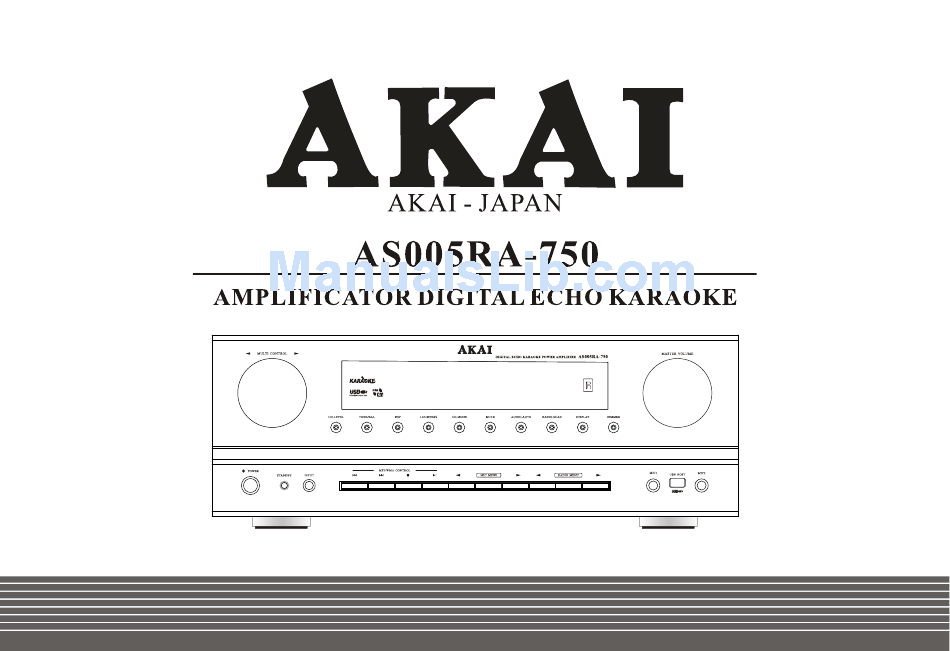

- Page 21 AKAI - JAPAN AS005RA-750 DIGITAL ECHO KARAOKE POWER AMPLIFIER MULTI CONTROL MASTER VOLUME CH.LEVEL TONE/BAL LOUDNESS CH.MODE MUTE AUDIO.AUTO RADIO.SCAN DISPLAY DIMMER POWER MP3/WMA CONTROL MIC1 MIC2 USB HOST STANDBY INPUT MIC MENU RADIO MENU...
- Page 22 SAFETY PRECAUTIONS Avoid opening the cover or back Do not open the cover, re-fix or touch the inner parts. No user-serviceable parts inside, CAUTION RISK OF ELECTRIC SHOCK refer servicing to qualified service personnel. DO NOT OPEN Protect voltage line Avoid high pressure and stamp on, do not pull, push excessively.
- Page 23 IMPORTANT SAFEGUARDS 1. Read Instructions- All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions- The safety and operating lnstructions should be retained for future reference. 3. Follow Instructions- All operating instructions should be followed. 4.
- Page 24 IMPORTANT SAFEGUARDS 9. Heat - Keep the appliance away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
- Page 25 FRONT PANEL MULTI CONTROL MASTER VOLUME 12. Master volume adjust key 13. Power switch CH.LEVEL TONE/BAL LOUDNESS CH.MODE MUTE AUDIO.AUTO RADIO.SCAN DISPLAY DIMMER 14. Power standby 15. Input selection MP3/WMA CONTROL POWER MIC1 MIC2 STANDBY INPUT MIC MENU RADIO MENU USB HOST 16.
- Page 26 REAR PANEL TUNER AUDIO INPUT CD/VCD AKAI - JAPAN MODEL NO.: AS005RA-750 POWER SOURCE: AC~230V/50Hz POWER CONSUMPTION: 340W SPEAKERS OUTPUT CD/VCD 5.1 CH AC-3 INPUT RoHS COMPLIANT AC~230V 50Hz CAUTION RISK OF ELECTRIC SHOCK SW.IN SW.OUT DO NOT OPEN S/NO.: 28.
- Page 27 50. USB Connection previous key DELAY 51. USB Connection next key MIC VOL M.BASS M.TRE ECHO 52. Main volume down 53. Surround left output up AS005RA-750 54. Centre output up 55. Surround left output down 56. Centre output down 57. MIC Volume up...
- Page 28 REMOTE CONTROL 58. MIC Bass up 59. MIC Volume down 60. MIC Bass down 61. Audio-Input auto key 62. VFD Display mode key 63. DSP Mode selector key 64. Loudness on/off key 65. 2.1/3.1/5.1 Channel selection 66. Main channel treble up 67.
- Page 29 MUTE 3.It may be out of control when the sensor SL VOL CEN VOL SR VOL SW VOL directly shines by strong light, specially DELAY MIC VOL M.BASS M.TRE ECHO fluorescent lamp. Please remove the unit beyond the light. AS005RA-750...
- Page 30 REMOTE CONTROL- OPERATING INSTRUCTION Normal function 1. Select audio source by press INPUT key on the control. When selecting the AC-3 input the machine can be lined to the decoders 5.1 channel output. STANDBY INPUT AUTO DISPLAY TUNE 2. Press VOL+/- keys on the remote control to adjust the setting of main volume control to you listening level. MUTE 3.
- Page 31 REMOTE CONTROL- OPERATING INSTRUCTION 5. Press LOUD key on the remote control to adjust the channel sound. DISPLAY TUNE AM/FM ST/MO LOUD MEMORY SCAN CH.MODE 6. Press TREBLE+/- or BASS+/- keys on the remote control to increase or decrease music treble or bass effect. BASS TREBLE MUTE...
- Page 32 REMOTE CONTROL- OPERATING INSTRUCTION Press AUTO key, unit will automatically scan input signals. It will scan in the order of AUX, CD/VCD, DVD, AC-3 and TUNER. After detected one channel had signal input, it will stop scanning and output the signals. Press AUTO key again to start scanning from next channel.
- Page 33 AM/FM TUNER- OPERATING INSTRUCTION Tuner application 1. Before using radio function, you must connect the supplied antenna. Adjust the antenna to obtain optimum reception. Press INPUT key on the remote control, to select TUNER function. STANDBY INPUT AUTO DISPLAY TUNE 2.
- Page 34 AM/FM TUNER- OPERATING INSTRUCTION 5.Press SCAN key on the remote control, the machine can scour radio channel from low-frequency to high-frequency by itself, and memorize the channels one by one. DISPLAY TUNE AM/FM ST/MO LOUD MEMORY SCAN CH.MODE 6. Press MEMORY key on the remote control to memorize the current radio frequency in the band, the machine can memorize at most 30 radio bands.
- Page 35 SYSTEM CONNECTION 1 TAP E CD/VCD 5.1CH OUTPUT MIX OUTPUT TUNER AUDIO INPUT CD/VCD AKAI - JAPAN MODEL NO.: AS005RA-750 POWER SOURCE: AC~230V/50Hz POWER CONSUMPTION: 340W SPEAKERS OUTPUT CD/VCD 5.1 CH AC-3 INPUT RoHS COMPLIANT AC~230V 50Hz CAUTION RISK OF ELECTRIC SHOCK SW.IN...
- Page 36 SYSTEM CONNECTION 2 TUNER AUDIO INPUT CD/VCD AKAI - JAPAN MODEL NO.: AS005RA-750 POWER SOURCE: AC~230V/50Hz POWER CONSUMPTION: 340W SPEAKERS OUTPUT CD/VCD 5.1 CH AC-3 INPUT RoHS COMPLIANT AC~230V 50Hz CAUTION RISK OF ELECTRIC SHOCK SW.IN SW.OUT DO NOT OPEN S/NO.:...
- Page 37 TROUBLE SHOOTING Problem Cause Modified methods Influenced by the outside element, Turn off the set, pull out the wire, Screen displays computer has problem. reinsert it then start the set again. disorder or malfunction The speaker terminal connects improper. Connect tightly. The sound frequency in terminal wrong Check and connect the sound frequency connects or improper.
- Page 38 TECHNICAL SPECIFICATIONS 1. Power source ................AC~230V/50Hz 2. Power consumption ..............340W 3. Rating output power ..............100W x 2 4. Subwoofer output power ............100W 5. Center channel rating output power .......... 25W 6. Surround channel rating output power ........25W x 2 7.
- Page 39 SPEAKER ARRANGEMENT HOME CINEMA FRONT RIGHT SPEAKER FRONT LEFT SPEAKER CENTER SPEAKER SURROUND RIGHT SPEAKER PASSIVE SUBWOOFER SURROUND LEFT SPEAKER HI-FI SYSTEM FRONT RIGHT SPEAKER FRONT LEFT SPEAKER...
- Page 40 AKAI - JAPAN...
