Summary of Contents for Truly 300W

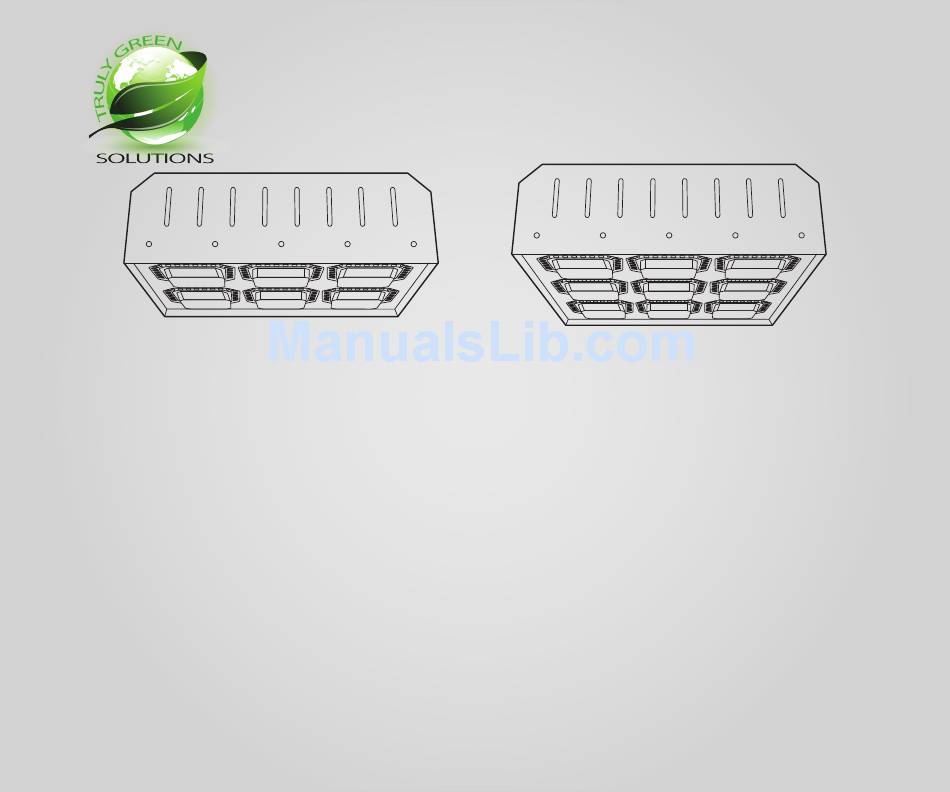

- Page 1 TRULY GREEN SOLUTIONS 300W 450W Modular LED Light Fixture Installation and Maintenance Manual (2014)
- Page 2 Content Warning A. Hanging Ring Mount B. Surface Mount C. Universal Hanging Bracket Wiring...
- Page 3 Using only the highest quality components, the Modular LED Light Fixture is designed for industrial applications where reliability and performance are critical as the bulb maintenance is difficult or impossible, not to mention the high cost. Every component of the Modular LED Light Fixture has been carefully engineered to provide the most reliable performance and bring across many benefits of utilizing solid state lighting technology in industrial applications.
- Page 4 Warning To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and maintained by a qualified electrician only, in accordance with all applicable electrical codes. To avoid electric shock: -- Be certain electrical power is OFF before and during installation and maintenance. -- Luminaire must be connected to a wiring system with an equipment-grounding conductor.
- Page 5 For high performance and long term reliability, the light should be installed in free air. A. Hanging Ring Mount 1. Hang the ring to the field supplied by the mounting hook or chain. 2. Secure the safety rope hook to the field supplied by the second mounting point or to the main mounting point in case the second point is not provided.
- Page 6 For high performance and long term reliability, the light should be installed in free air. B. Surface Mount 1. Bolt the anchor plate to the ceiling securely. 2. Hook the fixture to the anchor plate. C: Anchor Plate 3. Insert the screw to secure the hook B: Safety Rope to the anchor plate.
- Page 7 For high performance and long term reliability, the light should be installed in free air. C. Universal Hanging Bracket 1. The angle plate allows 360ºrotation and 10ºper move. 2. Rotate the bracket to the desired angle and insert 2 screws to lock it. 3.
- Page 8 For high performance and long term reliability, the light should be installed in free air. 1. The angle plate allows 360ºrotation and 10ºper move. 2. Rotate the bracket to the desired angle and insert 2 screws to lock it. 3. Insert bolts to lock the bracket with clapping ring to the pole arm, tighten the bolts to wrench tight.
- Page 9 Wiring 1. Connect supply wires to luminaire wire leads per the wiring diagram using methods that comply with all applicable codes. 2. Turn power on. A. American Standard Power Cable Neutral White Green LIGHT Live Black Ground B. European Standard Power Cable Neutral Blue Yellow &...
- Page 10 Storing Temp. -40~+70 IP Rating IP65/IP67 Fixture Size & Net Weight 300W Light Dimensions L560×W375×H180mm 300W Light Net Weight 16.8kg±0.4kg 450W Light Dimensions L560×W560×H180mm 450W Light Net Weight 21.7kg±0.5kg All statements, technical information and recommendations contained herein are based on information and tests we believe to be reliable. The accuracy or complete-...
