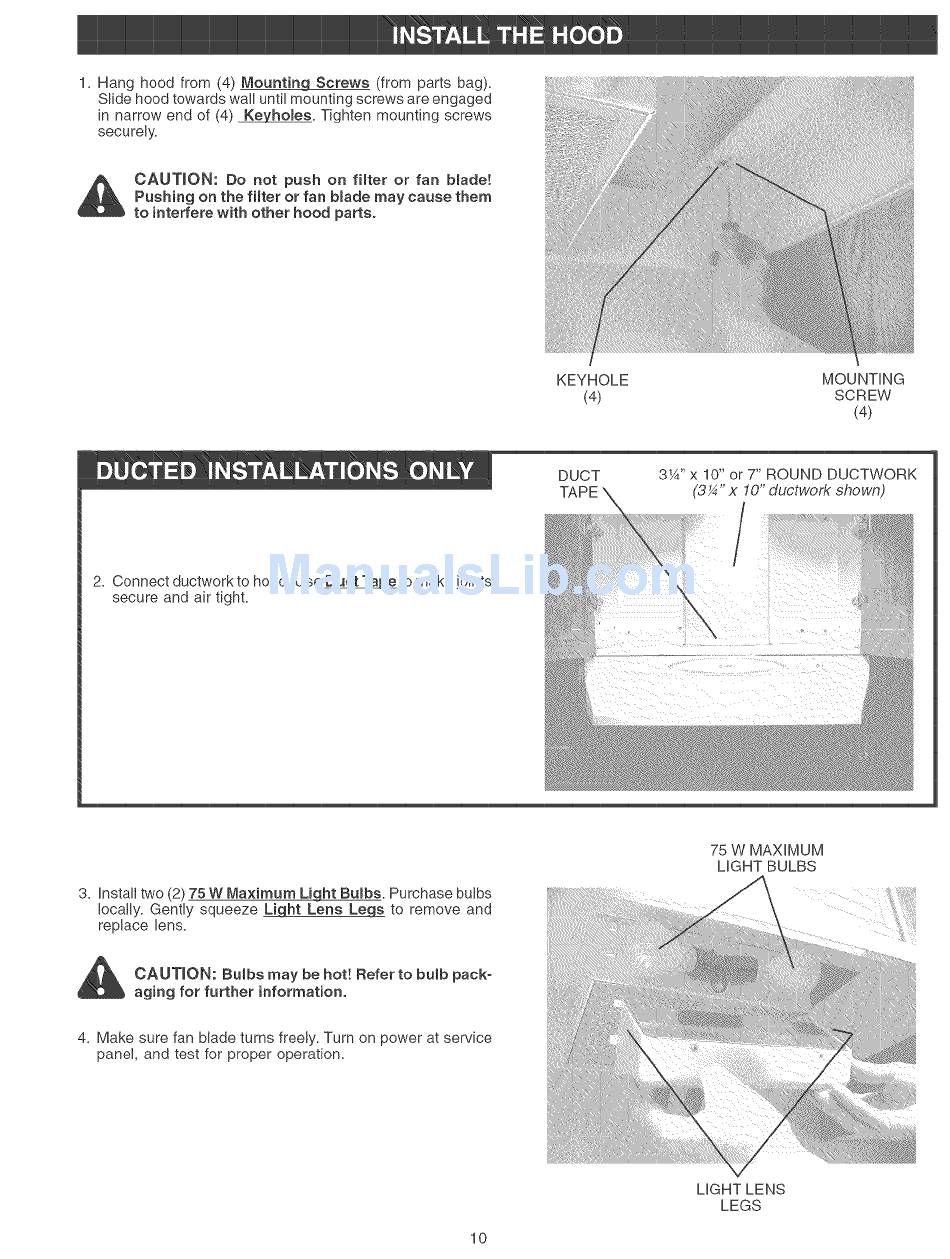

Kenmore 233.52052002 Use & Care / Installation Manual page 10

1. Hang hood from (4) Mountin_ (from parts bag).
Slide hood towards wail until mounting screws are engaged
in narrow end of (4) _homes. Tighten mounting screws
securely.
CAUTION: Do not push on filter or fan bmade!
Pushing on the filter or fan bmade may cause them
to interfere with other hood parts.
KEYHOLE
(4)
MOUNTING
SCREW
(4)
2. Connect ductwork to hood. Use Duct Tape to make joints
secure and air tight.
DUCT
TAPE _
\
\
\
3¼" x 10" or 7" ROUND DUCTWORK
(3¼ " x 10" ductwork shown)
/
3. Install two (2) 75 W Maximum Light Bumbs. Purchase bulbs
locally. Gently squeeze L iqht Lens Legs to remove and
replace lens.
CAUTION: Bulbs may be hot! Refer to bulb pack-
aging for further information.
4. Make sure fan blade turns freely. Turn on power at service
panel, and test for proper operation.
75 W MAXIMUM
MGHT BULBS
MGHT LENS
LEGS
10
