Lava Aire Fantom User Manual

Advertisement

Quick Links

LAVA AIRE
I T A L I A
Manufactured for: www.LavaHeat.com
Model Name:
JR ZIONI DESIGNER
90%
Less energy consumption

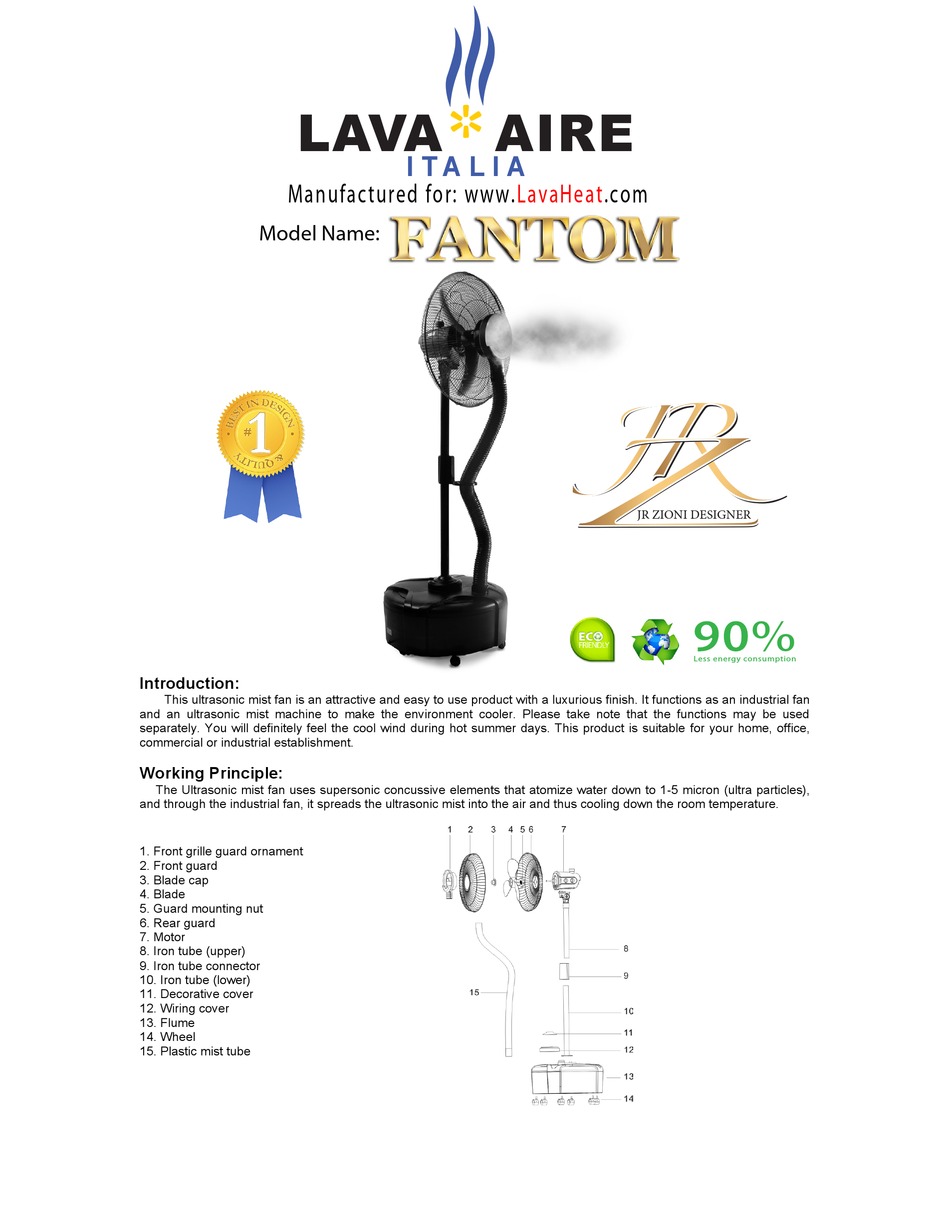

Introduction:

This ultrasonic mist fan is an attractive and easy to use product with a luxurious finish. It functions as an industrial fan
and an ultrasonic mist machine to make the environment cooler. Please take note that the functions may be used
separately. You will definitely feel the cool wind during hot summer days. This product is suitable for your home, office,
commercial or industrial establishment.

Working Principle:

The Ultrasonic mist fan uses supersonic concussive elements that atomize water down to 1-5 micron (ultra particles),
and through the industrial fan, it spreads the ultrasonic mist into the air and thus cooling down the room temperature.
1. Front grille guard ornament
2. Front guard
3. Blade cap
4. Blade
5. Guard mounting nut
6. Rear guard
7. Motor
8. Iron tube (upper)
9. Iron tube connector
10. Iron tube (lower)
11. Decorative cover
12. Wiring cover
13. Flume
14. Wheel
15. Plastic mist tube

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantom and is the answer not in the manual?

Questions and answers

Summary of Contents for Lava Aire Fantom

  • Page 1: Working Principle

    LAVA AIRE I T A L I A Manufactured for: www.LavaHeat.com Model Name: JR ZIONI DESIGNER Less energy consumption Introduction: This ultrasonic mist fan is an attractive and easy to use product with a luxurious finish. It functions as an industrial fan and an ultrasonic mist machine to make the environment cooler.
  • Page 2 Technical Specifications > Rated Voltage : 120V~ > Rated Frequency : 60Hz Assembly of fan body 1. Install power cord terminal from iron tube (upper) into the iron tube connector, and then insert iron tube (upper) into the iron tube connector and fasten them by 2 screws. 2.
  • Page 3: Operating The Fan

    Continuous water supply 1. Take out rubber cover from the water inlet. 2. Connect one end of water pipe to the base. (Internal diameter of pipe is 15mm) 3. Connect another end of water pipe to the tap, and then open the tap. Note: Do not add dirty water or any additives (such as perfume, essential oil and mosquito repel, etc.), instead add clean drinking water or purified water to ensure longer life of the humidifier.
  • Page 4: Cleaning And Maintenance

    Exposed metal parts with a.b.c. Stop using and send to service 7. Other unusual problem. electric insulation agent for repair. damaged. c. The rear cover of motor is damaged. LAVA AIRE I T A L I A JR ZIONI DESIGNER Manufactured for: www.LavaHeat.com...
