junger C8408 User Manual

digital audio
modular
processing system
3G/HD/SD SDI 16ch embedder/de-embedder
with video delay and VANC Dolby Metadata
features
• BNC connectors :
• Bypass relay :
• De-Embedder :
• Embedder :
• Video delay :
• Audio delay:
• Bit transparent :
• Video Generator :
• Remote control :
• Master mode :

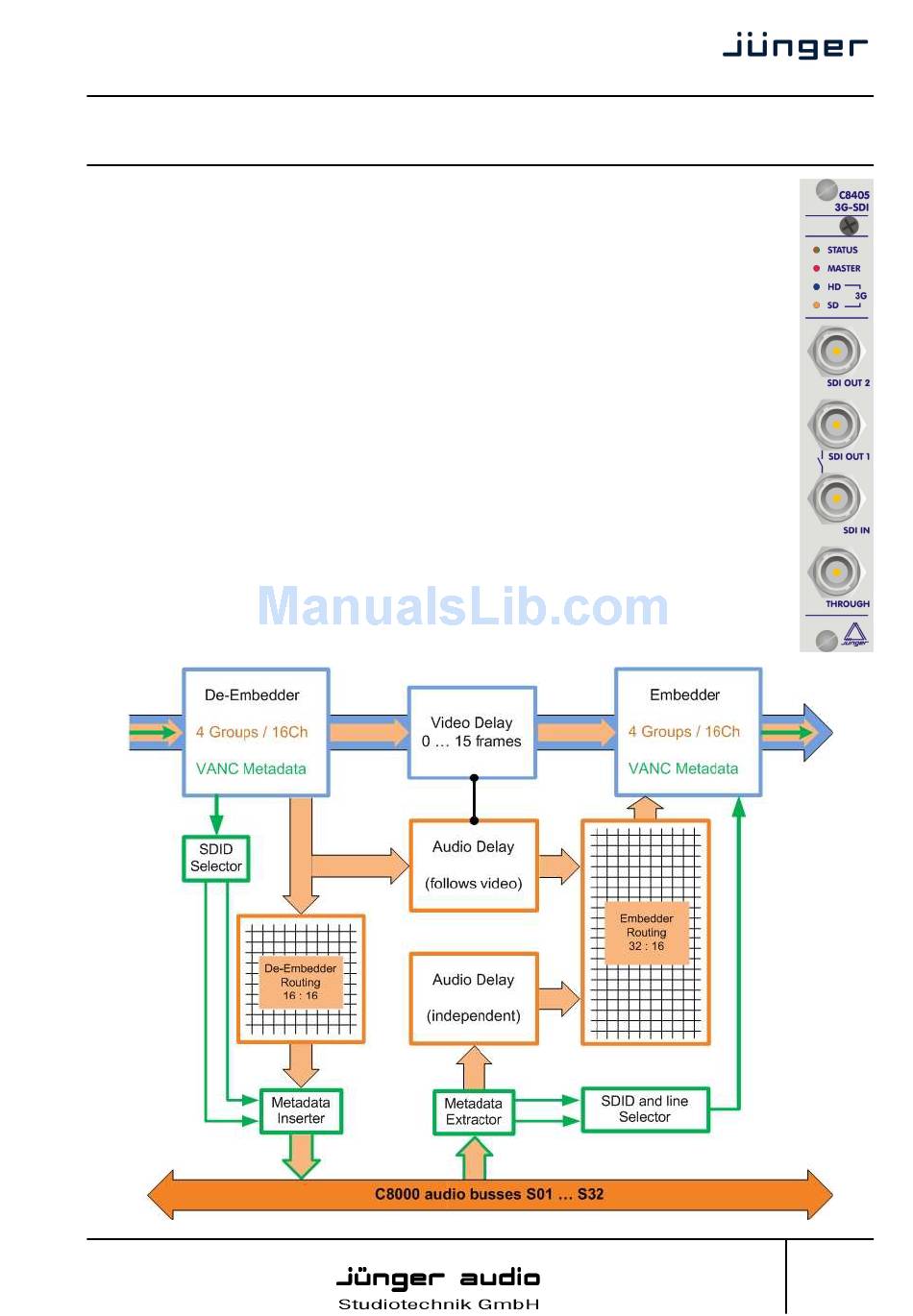

block diagram
Jünger Audio-Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
C8000
IN, THROUGH (active loop, re-clocked), OUT1, OUT2
connects SDI IN to SDI OUT1 for fail save operation
remote control via web interface and/or GPI
auto detection of 3G /HD / SD SDI
4 groups / 16 channels simultaneously
silence source
two VANC Dolby Metadata streams
4 groups / 16 channels simultaneously
silence source
two VANC Dolby Metadata streams
8 frames
16 x 320 ms for signals from c8k audio busses
automatic compensation of video delay for pass through audio
(from de-embedder to embedder)
for coded data streams (e.g. Dolby E)
color bars or black
on/off manually or automatically if the input signal is lost
via C8702 frame controller
C8405 may deliver the clocks for the C8k Frame
C8405
phone: +49-30-677721-0
fax: +49-30-677721-46
info@junger-audio.com
www.junger-audio.com
1/15
