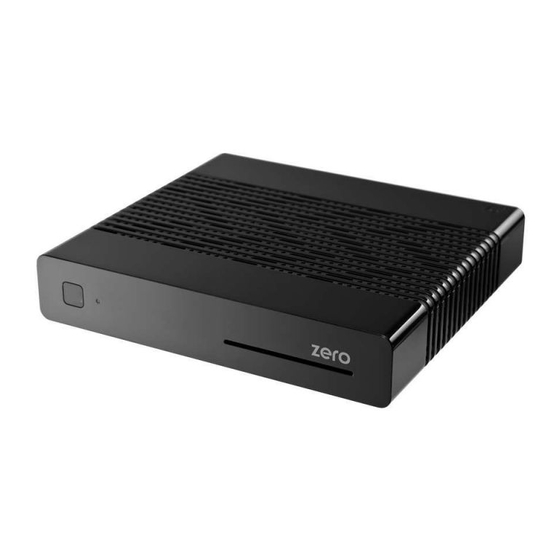

Summary of Contents for Zero Vu+zero

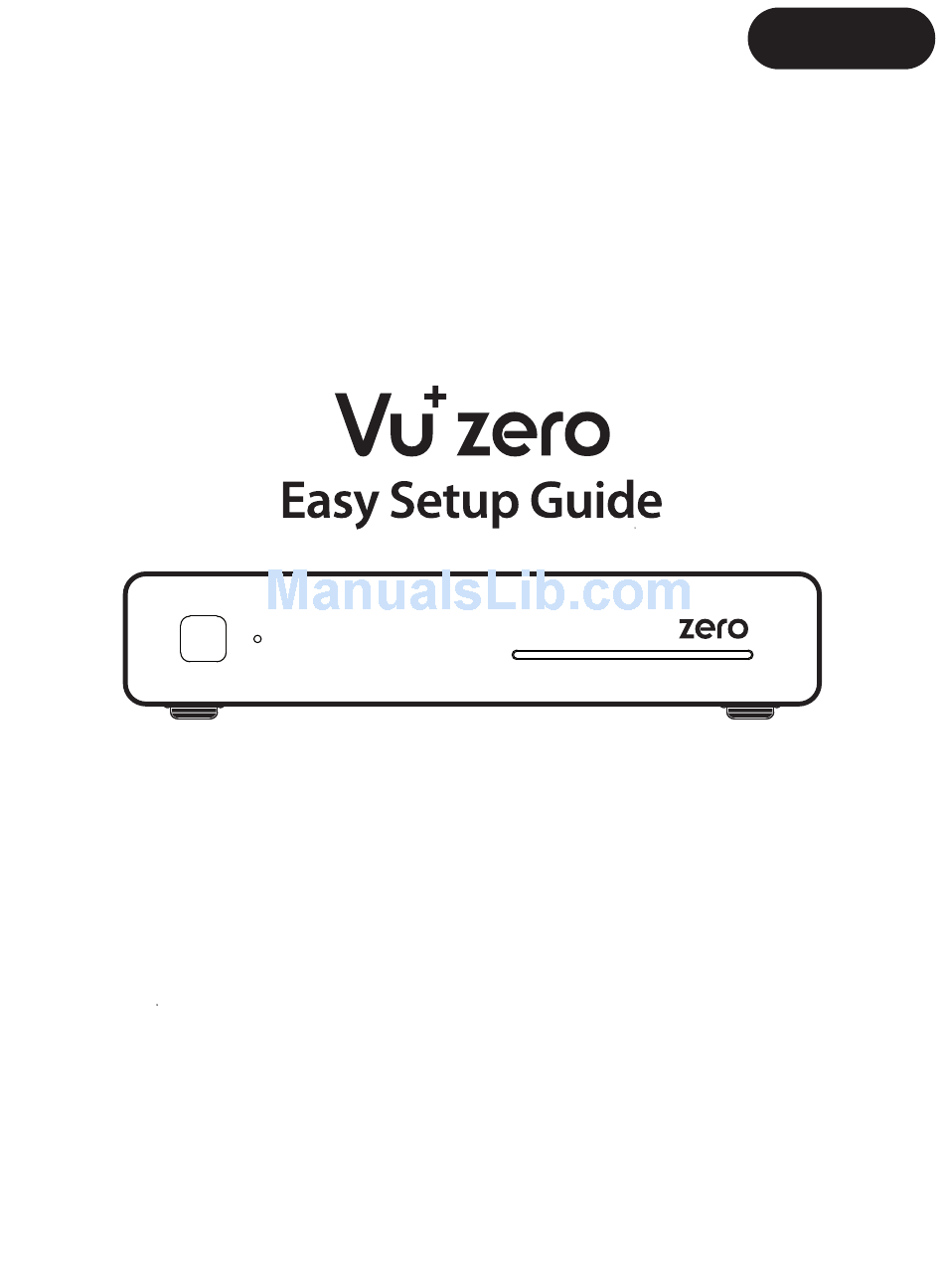

- Page 1 English...
-
Page 2: What's Included
What's included ? Easy Setup Guide HDMI Power Cable Adapter External IR Cable RCU Batteries * The contents in this guide are subject to change without prior notice. -
Page 3: Front Panel
Front Panel Status LED IR Receiver Smartcard reader slot... -
Page 4: Rear Panel
Rear Panel On/O Switch LNB IN Ethernet A/V Jack External IR Sensor USB 2.0 or RS232 HDMI Connects to TV using a HDMI cable for both audio and video signals. -
Page 5: Remote Control
Remote Control STB Power TV Power Subtitle This button is used Displays the subtitle of when selecting video source of TV. the current channel Mute if the channel provides subtitle. Numeric Keys Teletext Displays the teletext information of the current channel if the channel provides subtitles. -
Page 6: Connecting Cable
2. Connect ZERO to the TV One HDMI cable is included in the accessory box. Connect one end of the cable to the HDMI input of TV. Connect the other end to the HDMI output of ZERO. - Page 7 Connecting Cable 3. Power Up A power cord and an adapter are provided in the accessory box. Plug the round end of the adapter power cord into the power input of ZERO NOTE AC input condition • Nominal Voltage Range: 100 – 240 VAC •...
- Page 8 Run First Time Installation Step 1. Language Selection Please use the UP and DOWN keys to select your language. Afterwards press the OK button. English German Catalan Croatian Step 2. Con guring Satellite Connection Welcome. This start wizard will guide you through the basic setup of your STB. Press the OK button on your remote control to move to the next step.
- Page 9 Run First Time Installation Use the up/down keys on your remote control to select an option. After that, press OK. Use wizard to set up basic features Exit wizard Use the left and right buttons to change an option. Configuration Mode not configured Using LEFT/RIGHT key, you can choose one of the following Configuration Modes: •...
- Page 10 The five modes are available for the satellite cable connection between LNB and your Vu+ as below : • Single This option is used to receive a single satellite with a single LNB. The cable from LNB is directly connected to Vu+. For the other modes, please refer to the user manual of ZERO.
- Page 11 Run First Time Installation Step 3. Install Default Service List Here you will be asked whether you want to install the default satellite lists. Press OK and the following image appears: Do you want to install default sat lists ? Please choose the default services lists you want to install.
- Page 12 Run First Time Installation Step 4. Channel Scan • Selecting Scan Mode - Automatic Scan / Manual Scan Channel scanning is possible either in Automatic Scan mode or Manual Scan mode. Do you want to do a service scan? Yes, do an automatic scan now Yes, do a manual scan now No, scan later manually Press OK to initiate the channel scan.
- Page 13 Step 5. Parental Control Option Here you can choose whether to enable the parental control option. If you press OK, you will be asked to enter PIN number Parental control setup Enable parental control Protect setup Protect services Change pin code New PIN **** Reenter new PIN...
- Page 14 For more information about ZERO 1. Go to "Plugins" from Main Menu 2. Click "Opera Web Browser" 3. Go to "Tools" - "Bookmark" 4. Click "User Manual" Easy way to consult the manual: By long pressing 'Help' button, you can also access...
- Page 15 A Guide to Request of GPLv2 based Software This product contains software whose rights holders license it on the terms of the GNU General Public License, version 2 (GPLv2). You can find the text of this license in its English original version in the manual for this product.
- Page 16 Copyright© 2014 All Rights Reserved by Ceru., Ltd.
