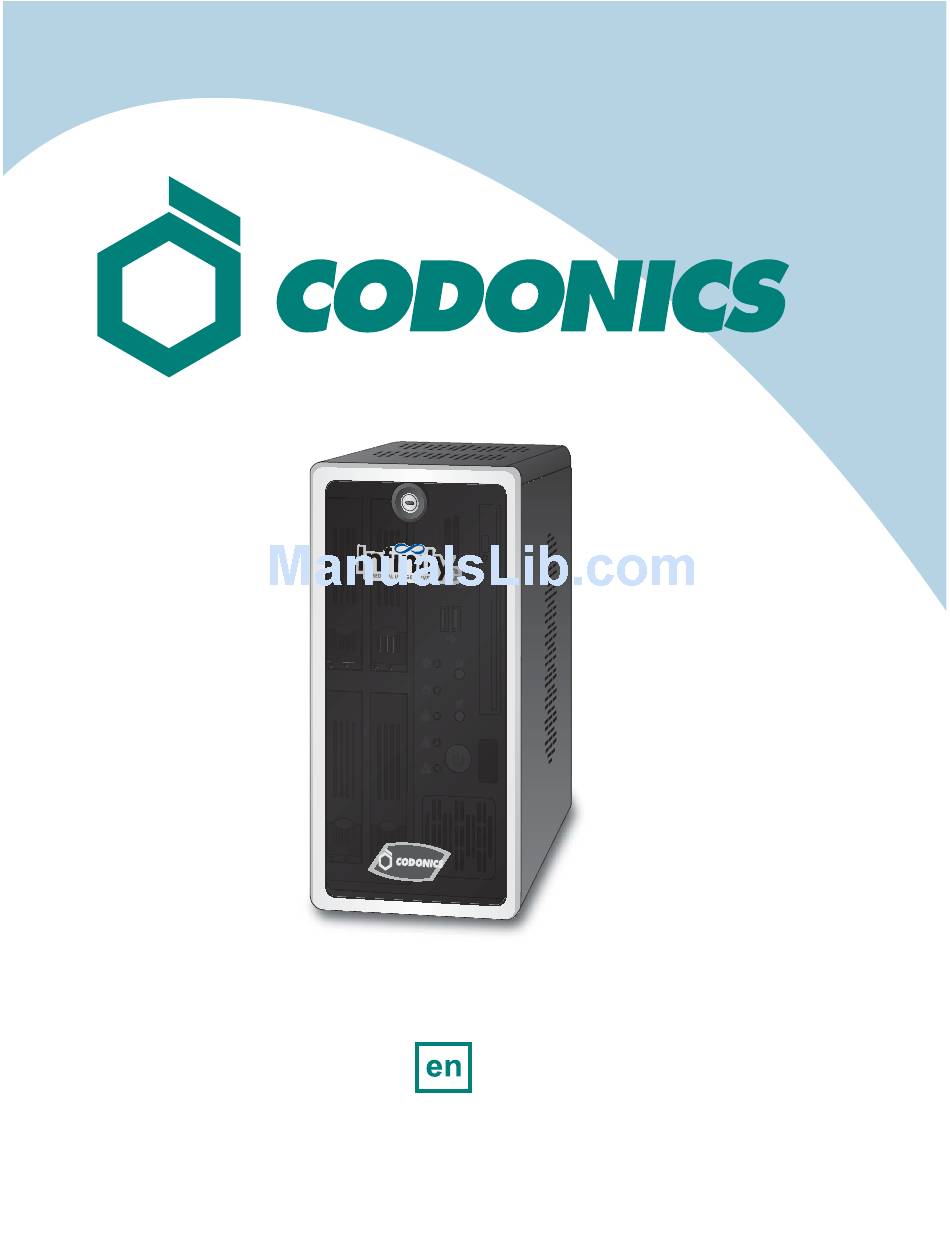

  • Page 1 ® Infinity C Reference Guide...

  • Page 3: Table Of Contents

    Table of Contents Components ............................1 Hardware Setup............................5 SmartDrive Configuration ........................12 Startup ..............................15 Login ..............................16 System Configuration ........................... 19 DICOM Setup ............................20 Monitoring Status..........................24 Troubleshooting ............................ 28 Shutdown.............................. 29...

  • Page 5: Components

    Components Unpacked Components 1. Main chassis 6. SmartDrive 2. Main chassis key 7. Installation disc 3. AC power adapter 8. User’s Manual disc 4. AC power cord 9. Documentation 5. Ethernet cable...
  • Page 6 Main Chassis Front 1. Power button 4. Disc drive 2. Mute button 5. Hard drives 3. Status lights 6. Front door Infinity C Reference Guide...
  • Page 7 Main Chassis Rear 1. Power connector 3. Connector panel 2. Serial Attached SCSI (SAS) port...
  • Page 8 Ethernet port 1 7. Serial port Ethernet port 2 (not used) 8. USB 2.0 ports VGA port Infinity C Reference Guide...

  • Page 9: Hardware Setup

    Hardware Setup CAUTION: Incorrect installation can result in system damage or loss of data. Users not trained in computer hardware installation, network setup or DICOM configuration should seek professional assistance. Power, Ethernet, and SmartDrive 1. Place the main chassis on a solid level surface. 2.
  • Page 10 3. Secure the power cord with the clip. 4. Connect the AC power cord to the AC adapter and to a power outlet or uninterruptible power supply (UPS, optional). Infinity C Reference Guide...
  • Page 11 5. Connect the Ethernet cable to Ethernet port 1 (top RJ-45 port). 6. Insert the SmartDrive. Optionally program the SmartDrive; refer to SmartDrive Configuration on p. 12.
  • Page 12 UPS (Accessory) 1. Insert the battery plug. 2. Connect the serial cable to the UPS and to the serial port on the main chassis rear. Infinity C Reference Guide...
  • Page 13 3. Connect the AC power cord to the UPS. 4. Connect the UPS power cord to a power outlet.
  • Page 14 Monitor, Keyboard, and Mouse (Optional) 1. Connect the keyboard and mouse. 2. Connect the monitor. NOTE: It is recommended that the monitor power cord be connected to the same outlet as the main chassis or UPS power cord. Infinity C Reference Guide...

  • Page 15: Hard Drive Installation

    Hard Drive Installation Hard drives are factory installed in the order shown.

  • Page 16: Smartdrive Configuration

    CAUTION: Do not reconfigure or modify the software except as described in configuration tasks documented in this manual. 1. Remove the SmartDrive from the main chassis. 2. Connect the SmartDrive to a PC. 3. Run Configurator.exe. Infinity C Reference Guide...
  • Page 17 4. Enter the site name and site contact. 5. Select Dynamic or Static for the IP address Acquisition Type. 6. If Static was selected, enter the system IP address and other network settings. Make sure no spaces are in the System Name entry. NOTE: The Gateway IP address cannot be set to 0.0.0.0.
  • Page 18 NOTE: For information about the SmartRouting features, refer to the Infinity SmartRouting Reference Guide. 18. Return to the Basic tab. 19. Click the Save button and close the window. 20. Disconnect the SmartDrive from the PC. 21. Insert the SmartDrive in the main chassis. Infinity C Reference Guide...

  • Page 19: Startup

    Startup 1. If there is a monitor installed, press the monitor power button. 2. If there is a UPS, power on the UPS. 3. Press the main chassis power button. 4. Wait five minutes for startup to complete, indicated by six audible beeps. 5.

  • Page 20: Login

    NOTE: If the PC does not have the Remote Desktop Connection application, download the application from the Microsoft Windows website. 2. Click the Options button. 3. On the Experience tab, change the connection speed to LAN (10Mbps or higher). Infinity C Reference Guide...
  • Page 21 4. On the Display tab, change the Color to True Color 24-bit or True Color 32-bit. 5. On the General tab, enter the system IP address. 6. Enter the administrator user name — admin. 7. Enter the administrator password (the default is “codonics”). 8. Click the Connect button.
  • Page 22 NOTE: Only one user can use Remote Desktop at a time. If a second user connects to Infinity with Remote Desktop, the first user will be logged out. CAUTION: When shutting down a PC connected to Infinity C with a Remote Desktop Connection, make sure that you are not actually shutting down Infinity C.

  • Page 23: System Configuration

    Users The system includes three user logins: admin, manager, and operator. The initial password for all three is codonics. To change the passwords, refer to the Infinity C User’s Manual. Date and Time Use the Windows Control Panel to set the date and time for the system.

  • Page 24: Dicom Setup

    2. At the login, enter the administrator user name — admin. NOTE: Entries in the User field are converted to uppercase automatically. 3. Enter the administrator password (the default is “codonics”). 4. Click the OK button. Infinity C Reference Guide...
  • Page 25 5. Click DICOM Stations. 6. Click the Add button.
  • Page 26 8. Click the OK button. 9. Enter an alias name for the station. 10. Enter the station’s Calling AE Title. 11. Enter the station’s host name or IP address. 12. Click OK. 13. Add other stations as needed. Infinity C Reference Guide...
  • Page 27 This entails storing a study from a DICOM station, opening Study Manager on Infinity C to verify that the study was received, then retrieving the study from the DICOM station. For more information, refer to the Infinity C User’s Manual.

  • Page 28: Monitoring Status

    Monitoring Status Detailed Status Information 1. Open the System Status Tool. Infinity C Reference Guide...
  • Page 29 2. Click branches in the component tree to display status details.
  • Page 30 4. Hard drives 5. System temperature 1. Processing status: Infinity C is ready to process or is processing requests. 2. Alert condition: Infinity C can still process jobs but requires user attention. 3. Fault condition: Infinity C cannot process jobs and requires user attention.
  • Page 31 Front Panel Status Lights 1. Power 5. Not used 2. Hard drive activity 6. Hard drive status 3. Network 1 activity 7. Hard drive power (not used) 4. Network 2 activity (not used) Indication Status Light Power Blue: Power on Hard drive activity Flashing amber: Hard drive activity Hard drive power...

  • Page 32: Troubleshooting

    Make sure you did not inadvertently shut down the system from the Remote unexpectedly. Desktop Connection application. If you did, restart Infinity C and check its status using the System Status tool. For additional assistance, contact Codonics Technical Support. A specific Windows Make sure that you are searching from your normal Windows desktop and not application cannot be found.

  • Page 33: Shutdown

    Shutdown. 2. Click the Shutdown button. All registered and unregistered trademarks are the property of their respective owners. Specifications subject to change without notice. Patent Pending. Copyright © 2008 – 2010 by Codonics, Inc. Printed in U.S.A. Part Number 900-445.003.01.
