HyperLink Technologies HG2415G Installation Instructions

HyperLink
Technologies,

Installation Instructions

Models: HG2415G and HG2419G

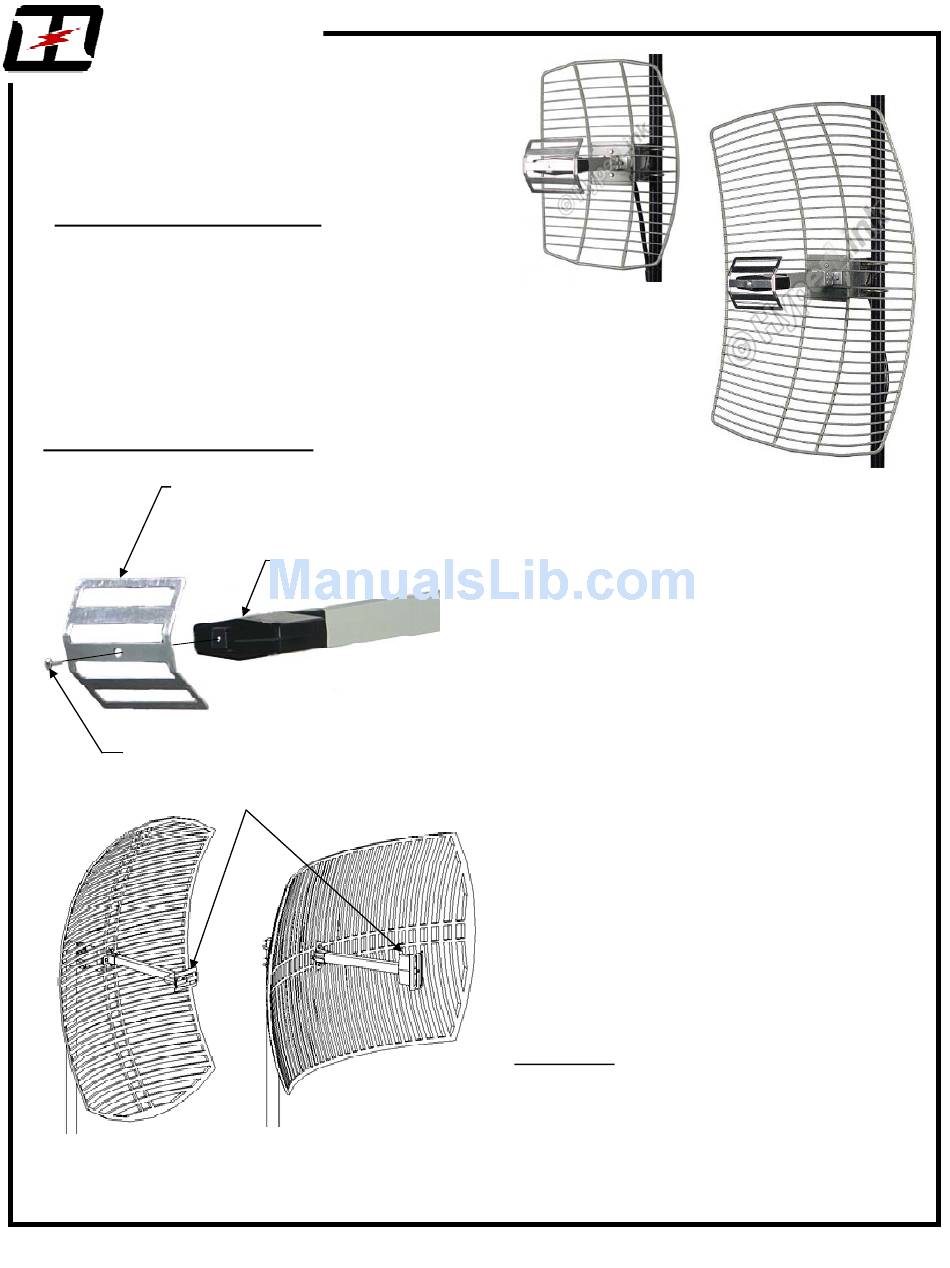

Antenna Components Included:

(1) Antenna Grid
(1) Antenna Feedhorn Assembly
(1) Feed Reflector
(1) Small Self-tapping Screw
(2) Mast Clamps
(1) Aluminum "L" Bracket
(4) #M5 Machine Screws w/nuts, flat and lock washers

Antenna Assembly Instructions:

Feed Reflector
Small Self-Tapping Screw
Horizontal
Polarity
IP-00017 Rev. A – 02/04 Page 1 of 3
HyperLink Technologies, Inc. – 1201 Clint Moore Rd. – Boca Raton, Florida 33487 USA
INC.
Feedhorn
Feed Reflector
Vertical
Polarity
561-995-2256 • www.hyperlinktech.com • Sales@hyperlinktech.com
Install the Feed Reflector to the front of the
Feedhorn using the small self-tapping screw.
Determine the polarity which will be chosen
for the antenna installation. The antenna can
be installed either vertically or horizontally
polarized.
The two polarities are illustrated as shown:
Important Note: Feed Reflector must be orientated to
grid as shown for optimal antenna performance.
Copyright © This drawing is property of HyperLink Technologies, Inc. All rights reserved.
