- Page 1 INSTRUCTION MANUAL INDUCTION STOVE ED-4704IC DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to info@premiermundo.com...
- Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Panama: 300-5185 www.premiermundo.com...
-
Page 3: Table Of Contents
Induction cooker working principle....................Page 2 Specification.............................Page 2 Parts name............................Page 2 Function diagram..........................Page 3 Operation and usage........................Page 4 Cautions............................Page 6 Cleanness maintenance........................Page 7 Usable and Non-usable cooking utensils..................Page 7 Trouble shooting..........................Page 8 Technical Data..........................Page 9... -
Page 4: Induction Cooker Working Principle
A large amount of thermal energy produced can heat the bottom quickly, thus heating up the food very fast, with thermal efficiency up to 94.36%. SPECIFICATION Model No. ED-4704IC Power Supply 220V~50HZ MAX Power 2000W... -
Page 5: Parts Name

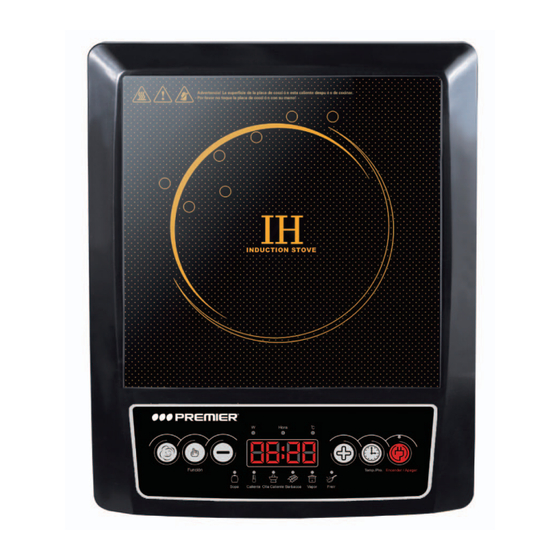

PARTS NAME FUNCTION DIAGRAM Hora Función Temp./Pre. Encender / Apagar Sopa Caliente Olla Caliente Barbacoa Vapor Freír... -
Page 6: Operation And Usage
OPERATION AND USAGE After inserting plug into electrical out, the indicator of “on/off” will light, after 5 seconds with the sound. It will show that the induction cooker have connected with the electrical source and ready to work. Put the suitable cooking utensils (with food) in the center of panel, choose any of function according to cooking as needful: Hot pot: Touch the key of “On/off”, and then touch the function “Hot pot”, the indicator light of “Hot pot”... - Page 7 Stir-fry: Touch the key of “Stir-fry” to choose the function of “Stir-fry”, the indicator light of “Stir-fry” will light. Which means the function of “Stir-fry” will unseal, it display with 270 . During use this function, according to requirement, there are 8 levels for your adjust of temperature by touch the key of “Up”...
-
Page 8: Cautions
CAUTIONS 1. Do not plug with wet hands. 2. Do not plug into a socket where several other appliances are plugged in. 3. Do not plug into a socket which Ampere load is less than 10A. 4. Do not use if the plug cord is damaged or power plug does not fit the socket safely. 5. -
Page 9: Cleanness Maintenance
CLEANNESS & MAINTENANCE 1 Please shut off the power and pull out the plug before your cleaning. 2. Clean the unit until it cools down completely. 3. To remove dirt, please select litmus less detergent. 4. After remove dirt, please use neat wet cloth to clean the unit. 5. -
Page 10: Trouble Shooting
TROUBLE SHOOTING If there is anything wrong with the induction cooker, please check it as following before sending to repair. Malfunction Disposal Whether the plug desquamate or not Once the plug is connected with power supply, again there is no warning sound Whether the power supply switch or the fuse short circuit or not and the indicator light of “on/off”... - Page 11 LOUT D15SB80 +18V +18V AC 50Hz~60Hz 100uH 350uH ±10% IGBT 1N4148 10A-AC250V 0.3uF1200V H20R1202 1N4007 200K 1/2W 200K 1/2W S8050 5uF-DC400V 2.0uF-AC275V 430K 1/2W 200K 1/2W 1N4007 EI1-19 S8550 (1:950) 200K 1/2W 200K 1/2W +18V 2J102J LM339 1N4007 104M LM339 LM339 200K 1/2W 5.8K.F...
