Summary of Contents for Pearl PX1355
-

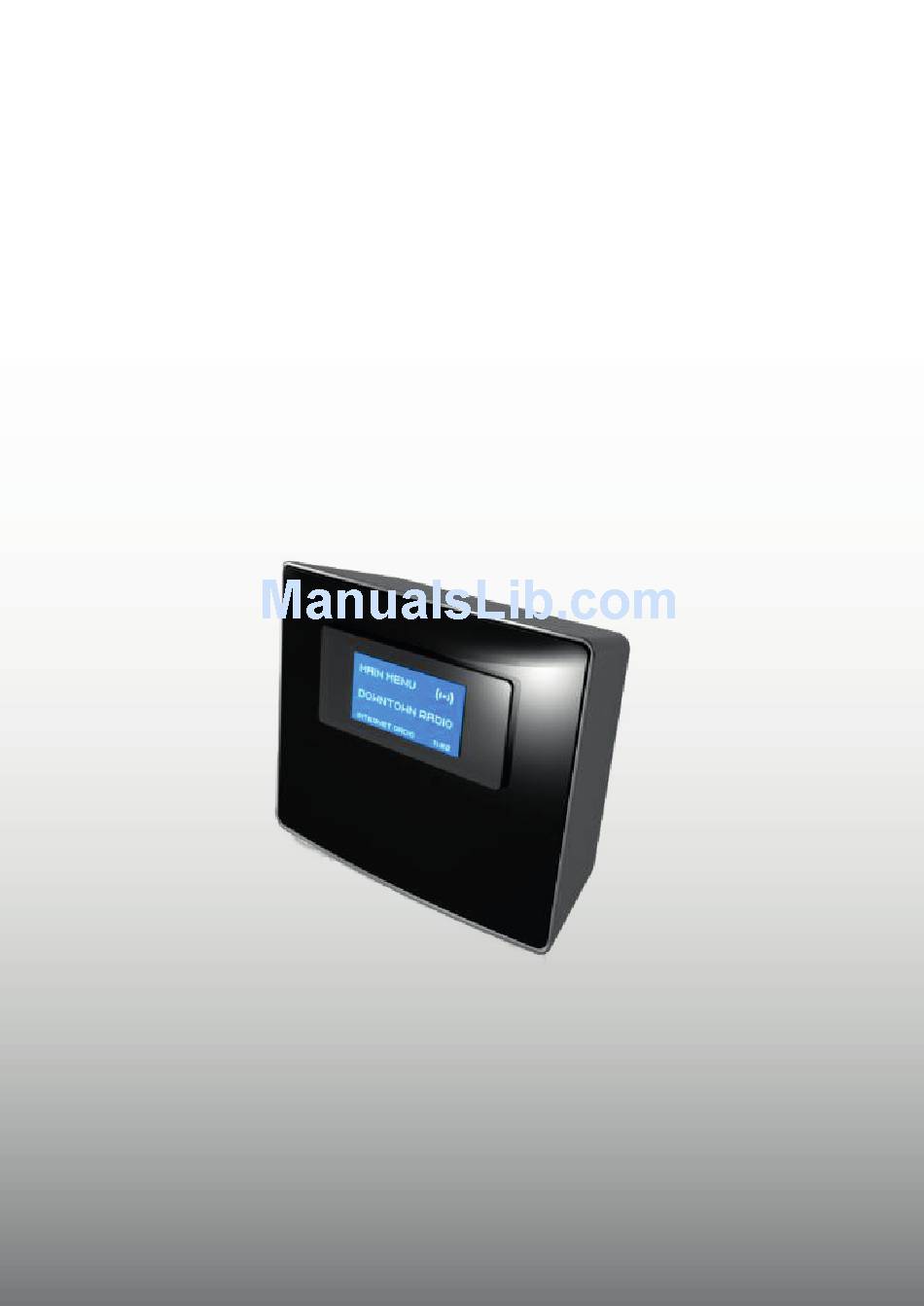

Page 1: User Manual
User Manual... -
Page 2: Table Of Contents
Contents Thank you ........................4 Feature ..........................4 Package Content ......................5 Overview .......................... 5 Audio Bridge ......................5 Remote Control ......................6 Connecting Audio Bridge ....................7 Main Menu Instruction ....................... 8 Internet Radio Menu: ....................9 Choosing the Radio Station / Local Radio you want from the Internet Radio menu. . 9 My Favorite Menu ................... - Page 3 “Stream Latidos” app instruction ..................21 How to use “Stream Latidos” app for iOS ..............22 How to use “Stream Latidos” app for Android ............. 25 Specifications ......................... 28...
-
Page 4: Thank You
Thank you Thank you for choosing this Audio Bridge product which let you enjoy the music with family or friend at home. Also let you easily control your music through your Android phone, iphone, ipod, ipad, PC, Mac or NAS. Use different way to enjoy music life. Feature Internet Radio with thousands of station to choose from. -
Page 5: Package Content
Overview Front: Back: Display USB Port Line Out : audio out for connection to an external audio device (such as a stereo system or loudspeakers) 3.5mm to connect to your active speaker system Power: socket for DC adapter... -
Page 6: Remote Control
Remote Control 6. Power Power Switch device into standby mode and on again Switch device into standby mode and on again 7. Mode 7. Mode Fast entry UPnP, USB and iRadio Mode Fast entry UPnP, USB and iRadio Mode 8. Number Buttons : To enter numbers 8. -
Page 7: Connecting Audio Bridge
Connecting Audio Bridge Step1 Connect to power adapter Audio Bridge will light up and show on display: Music Link After a few seconds, it will change to show: Select your language: Please select “YES” Please select “YES” ( WPS: No Function) Step 2 Scan for a wireless network connection The Audio Bridge will scan for all available wireless network now and will display: Select the AP that you can connect to your router device. -
Page 8: Main Menu Instruction
Enter password Press “OK” after password is done, it’ll connecting to Network… Step 3 When the Audio Bridge device is connected, will display the main page: The device is already connected to your network. Main Menu Instruction Main Menu: Network Time connected... -
Page 9: Internet Radio Menu
Internet Radio Menu: Choosing the Radio Station / Local Radio you want from the Internet Radio menu Please select the Internet Radio, will go to iRadio List: Select Radio Station/Music or Local Radio on iRadio List and choose the radio what you want from Global Top20, Genre, Country/Location and Local Radio. -
Page 10: My Favorite Menu
My Favorite Menu Add the Radio Station to My Favorite: When you’re listening to Radio, you want to add it to My favorite. Please press “Fav+” key. It’ll go to My Favorite screen automatically. And you can shift radio station up or down on My Favorite. ※Use the“... -
Page 11: Media Center Menu
Media Center Menu: USB Mode: When you plug the USB, will display icon. And select your music file in USB. It’ll display playlist. Select the song and press key, you can edit it such as delete or play. When you’re playing the song, it will display information for song. And you can press key to repeat, play/pause or shuffle. -
Page 12: Upnp Mode
UPnP Mode: Press the “Mode” key to access UPnP Mode quickly or go to “Media Center” to select the “UPnP” menu. In the same network, it’ll display UPnP’s list and select your PC you want for connecting. Press “OK” or “ ” key to access your PC file and select your music file. Press the “... -
Page 13: Information Center Menu
Information Center Menu: Weather Information Menu Select your country… It’ll display your country weather information and if you press key, it can add to standby display. -
Page 14: System Information
Financial Information: Show the financial information to read System Information: It’ll display Audio Bridge version and wireless info. Check your wireless status, SSID, IP..etc. Version: Check Audio Bridge’s version and whether your Audio Bridge is the latest version if supplier any new firmware has been released. -
Page 15: Configuration Menu
Configuration Menu: Manage my mediaU You can login the website: http://www.mediayou.net and play My mediaU list. Function Indication: 1. Preparation for mediaU use: [1]Register from the website and login with your Use Account and passwords. [2]Put the MAC address xxxxxxxxxxxx on the website after login. The Mac address is under the Information center-System Info-wireless info. -
Page 16: Date&Time
Date&Tim e Set date and time Select the YYYY/MM/DD HH:MM (e.g. 2012/09/10 12:58) date format you want. Select 12Hour or 24Hour Select On or Off for DST Alarm icon. If you set the alarm, the display will alarm There are two alarms to choose from: Select the “Turn On/Off”... -
Page 17: Language
Language There are eight languages to choose from: English, Deutsch, Français, Nederlands, Русский, Svenska, Norske and Dansk. Dimmer Select Power Saving or Turn On. Use “OK” key to access dimmer. Control the dimmer under Power Saving or Turn On. Dimmer Power Management Select “Turn Off”... -
Page 18: Buffer
Buffer Displays playback buffer strength of current radio station/music. Weather Set the weather : Show on Standby The weather will show the display on Standby Mode. Temperature Unit Set temperature unit ℃ or ℉ Set Location Set country’s weather Local Radio Setup Local Radio Setup: Manual Setup Select your country, then save as local radio... -
Page 19: Dlna Setup
DLNA Setup Music Link is Audio Bridge renderer. Select “DLNA Setup” and rename the Audio Bridge renderer you want. Resume When Power On Set “Turn On” or “Turn Off” -Select turn on, when you power on, it’ll back previous radio automatically. -
Page 20: Reset To Default
Reset to Default Restore all options to their factory-default settings. To perform factory reset, e nter the menu as follows: Configuration > Reset to Default >Press “Yes” to confirm. If you do not wish to continue, move the highlight to NO and press OK. The factory reset, will not be performed, and the radio will return to its previous operating condition. -
Page 21: "Stream Latidos " App Instruction
“Stream Latidos ” app instruction Stream Latido s let you enjoy the music anytime anywhere and easily control your music via Stream Latidos APP. Would you like to share your music with your family and friend from your iPhone, iPad, iPod or Android phone at home? Under wireless home network, you can easily play the music what you want and share with your family and friend from your iPhone, iPad, iPod and Android phone through Stream Latidos. -
Page 22: How To Use "Stream Latidos" App For Ios
How to use “Stream Latidos” app for iOS Please download the “Stream Latidos” free app from Apple Store. When your iPhone/iPad/iPod, PC/Mac/Nas and Audio Bridge device is connected to the same network (same WiFi access point), the screen will show the renderer list after launching the Stream Latidos. - Page 23 SHOUTcast with thousands of radio station to choose from. Back to service list Back Button How to use the Stream Latidos from idevice Step 1 Please download the Stream Latidos from Apple Store. When Audio Bridge device is connected to the same network with your iPad/iPhone. Please tap “Stream Latidos”...
- Page 24 Step 2 Now you can start play music/radio what you want. Tap Service button , now you can start play music/radio station you want. If you want to play music from your device’s library, please tap “My Music Library” and it’ll pop up your device’s library, then add the music to Music Link (Audio Bridge’s Renderer) renderer playlist.
-
Page 25: How To Use "Stream Latidos" App For Android
How to use “Stream Latidos” app for Android Please download the “ Stream Latidosfree app from Google Play. When your Android phone, PC/Mac/NAS and Audio Bridge device is connected to the same network (same WiFi access point), the screen will show the renderer list after launching the Stream Latidos. - Page 26 SHOUTcast with thousands of radio station to choose from. Back Button Back to Zone Player Music Link’s Player How to use the Stream Latido s from Android Step 1 Please download the Stream Latidos from Google Play. When Audio Bridge device is connected to the same network with your Android phone.
- Page 27 Step 2 Now you can start play music/radio what you want. Tap Browser button, now you can start play music/radio station you want. If you want to play music from your device’s library, please tap “My Music Library” and it’ll pop up your device’s library, then add the music to Music Link (Audio Bridge’s Renderer) renderer playlist.
-
Page 28: Specifications
Specifications Display 2.4 inch STN screen RCA x 2 I/O port 3.5mm phone jack x 1 USB HOST x 1 Home Multimedia Protocol DLNA UPnP Power Supply 5.0V 2.0A Dimension 143X91X54 mm...
