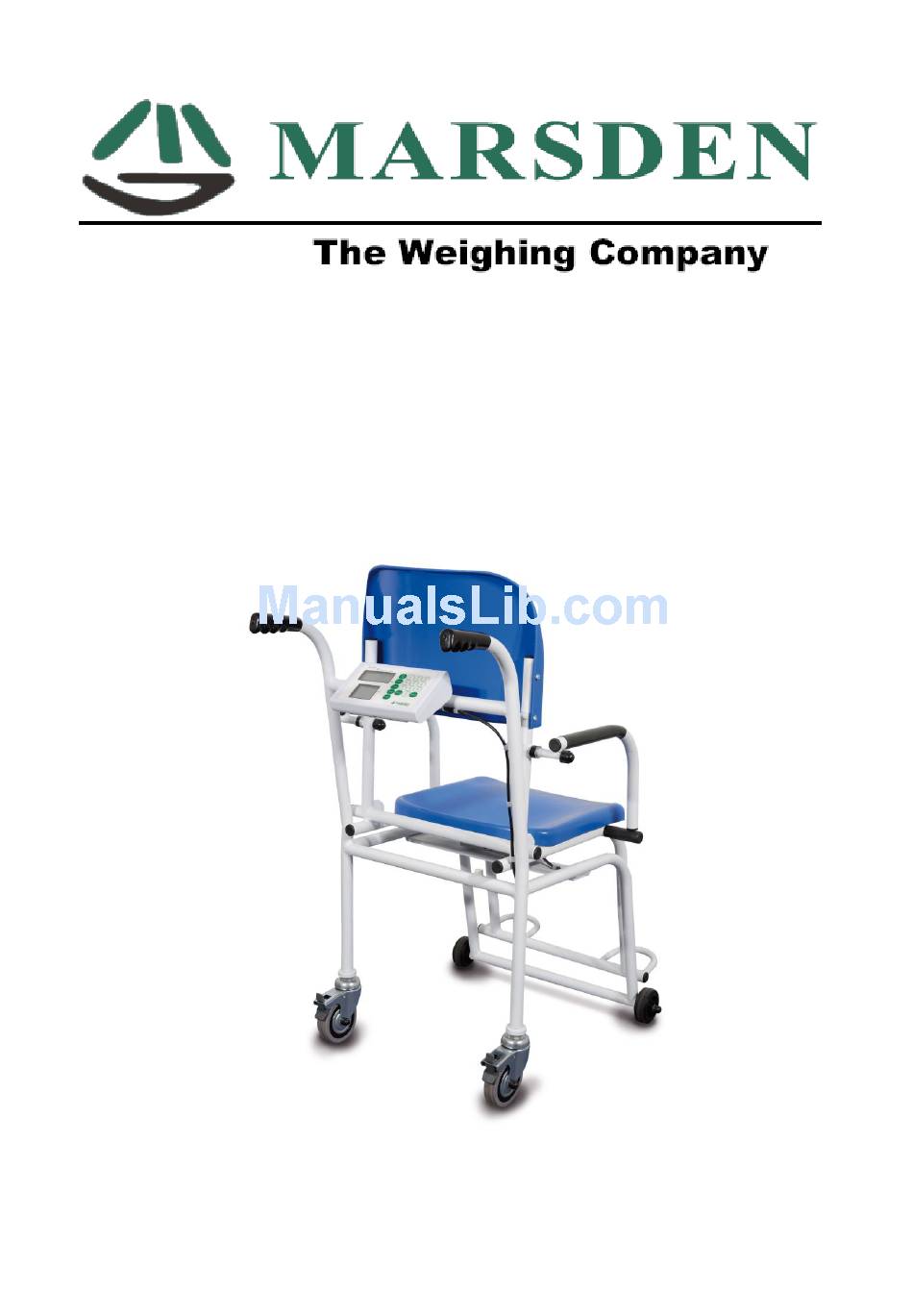

- Page 1 OPERATION MANUAL MPDC-250 PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES...
-
Page 2: Table Of Contents
TABLE OF CONTENTS POWER SUPPLY………………………….…………………………………………….. SPECIFICATIONS…………………………………………………..……………………. MAINATENANCE AND GENERAL CARE ……..…………………..…….…………... 1.0 BASIC FUNCTIONS……………………………………………………….……….… 1.1 SWITCHING ON ……………………………………………………………... 1.2 SWITCHING OFF………………………………………………………….…. 1.3 SETTING ZERO…………………………………………………………….… 2.0 ADVANCED FUNCTIONS ………………………………………………………….. 2.1 HOLD FUNCTION………………………………………………….……….… 2.2 BODY MASS INDEX (BMI) FUNCTION……………………………………. 2.3 SETTING THE DATE AND TIME……………………………………………. 2.4 PRINTING FUNCTION……………………………………………………..…... -
Page 3: Power Supply
Thank you for purchasing a Marsden Professional Medical Scale. This is a precision Class III Weighing Instrument and it will reward considerate use with many years of accurate weighing results. POWER SUPPLY The INDICATOR uses a rechargeable pack, or an AC adaptor. -
Page 4: Basic Functions
OPERATOR INSTRUCTIONS SECTION 1 - BASIC FUNCTIONS 1.1 SWITCHING ON THE SCALE Press the ON button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display. -
Page 5: Switching Off
1.2 SWITCHING OFF THE SCALE Press the OFF button. The scale will power down. 1.3 SETTING THE SCALE TO ZERO If for some reason the scale shows a reading other than 0.0kg then it can be reset to zero (2% of capacity). Press the zero key once. -
Page 6: Advanced Functions
SECTION 2 – ADVANCED FUNCTIONS 2.1 HOLD FUNCTION Press the HOLD button once. The person should now get on to the scales. After a few seconds the scale will lock on the person’s weight, the person can now stand off the scale and the weight will remain. -
Page 7: Body Mass Index (Bmi) Function
2.2 BMI (BODY MASS INDEX) FUNCTION For this example we will assume we have a person weighing 60kg who is 170.0cm tall. In normal mode, press BMI key to enter into BMI mode. The display will show the last height entered and the extreme left digit will flash. -
Page 8: Setting The Date And Time
2.3 SETTING THE DATE AND TIME Press the HOLD key for 3 seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing the HOLD key. -
Page 9: Printing Function
2.4 PRINTING FUNCTION An optional Marsden external printer (Model TP-2100) is available for all models. When the printer is fitted the patient’s weight, height, and BMI result can be printed on to a paper roll. Once the person has been weighed and their BMI calculated, simply press the... -
Page 10: Rohs Compliance
ROHS COMPLIANCE EU Directive 2002/95/EC restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ... -
Page 11: Error Messages
ERROR MESSAGES ERROR REASON ACTION MESSAGE Low battery: Please replace with This warning shows that the batteries or plug the AC voltage of batteries is too low adaptor for operation. to use. Overload: The total load exceeds the Please reduce the loading maximum capacity of the and try again.
