Summary of Contents for Smarthome SH-H2

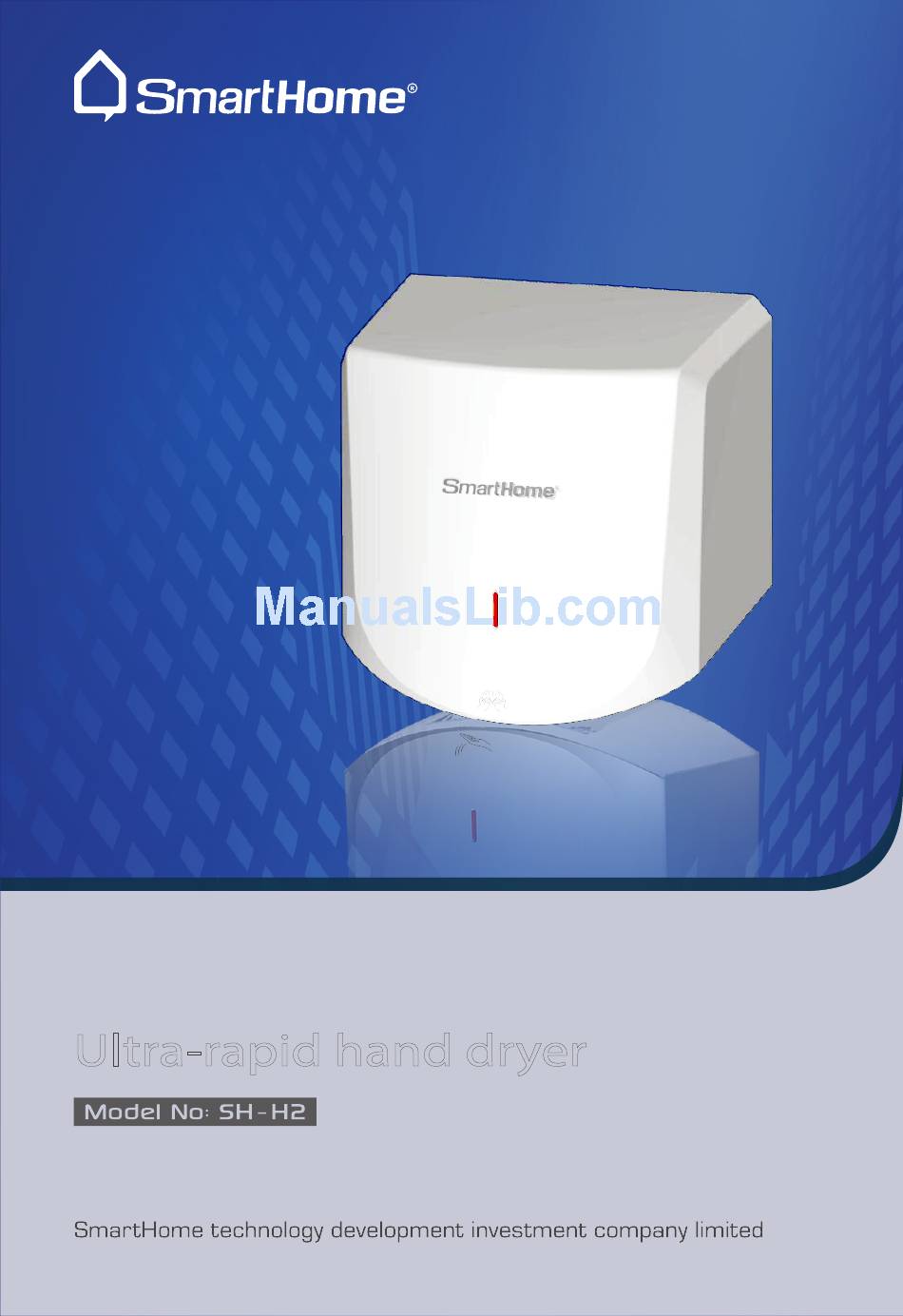

- Page 1 The high class house ! MANUAL BOOK Ultra-rapid hand dryer...
- Page 2 HDH2 V1.0/SH082013...
- Page 3 HAND DRYER Model: SH - H2...
- Page 4 The high class house !
- Page 5 Manual Book SH-H2 Thank you for choosing ultra-rapid hand dryer of SmartHome. For selecting SmartHome’s products, You will enjoy the best warranty services and installation support from our technical experts. This document contains useful information during installation process and product usage. Please read the instructions carefully and retain the manual in case of need.
-
Page 6: Safety Information
Manual Book SH-H2 Safety information Do not use power source which is di erent from the one stated in the speci cations of the device. Disconnect its power prior to installing, disassembling or repairing the device. Do not clean the device with corrosive chemicals. -
Page 7: Table Of Contents
Manual Book SH-H2 Contents .......... -
Page 8: Introduction
SH-H2 Introduction 1. General introduction Ultra-rapid hand dryer SH-H2 of SmartHome uses high-pressure air ow technology to make the drying period 4 - 5 times faster than conven- tional hand dryers. The device has many exible operation modes and is easy-to-install. - Page 9 Introduction SH-H2 6 sets of screws and anchors User manual MANUAL BOOK HƯ NG D N S D NG Máy s y tay siêu t c Ultra-rapid hand dryer Please check to ensure that the accessories are attached to the device. Should there be any missing accessory, Notice please contact the shop from which you purchased.
-
Page 10: Components
Introduction SH-H2 3. Components The front of the device Indicator light The color of indicator light displays operating mode. Display the operating mode Red - Hot of the device Orange - Comfortable based on its color Green - Cool and status. -
Page 11: Sensor Range
Installation SH-H2 4. Sensor range 200mm 200mm 5. Speci cations 220V - 50/60Hz Voltage POWER CONSUMPTION 250W HOT: 1000W 210W COMFORTABLE: 800W COOL: 550W 190W Electric shock protection Level 2 IP Standard = 2W Sensor range 200mm Max Operation temperature... -
Page 12: Installation
Installation SH-H2 Installation 1. Installation dimensions 157mm 45mm 150mm 1300mm... -
Page 13: Installation Steps
Installation SH-H2 2. Installation steps Step 1: Locate and drill screw holes Step 2: Mount the hook to the wall... - Page 14 Installation SH-H2 Step 3: Mount the device to the hook Step 4: Fasten two screws from the bottom of the device SH-S2 SH-S2...
-
Page 15: Installing And Testing Operation Mode
Setting and testing operation mode SH-H2 Setting and testing operation mode 1. Setting operation mode Power switch and mode button Comfortable Cool Turn on/o the device (ON) (OFF) Turn on the device Turn o the device Selecting Operation mode Comfortable... -
Page 16: Testing Operation Mode
Setting and testing operation mode SH-H2 2. Testing operation mode Power switch Turn on the power switch to check whether the indicator is on and the wind room has (ON) started when users putting their hands in sensor area. Turning the power switch on/o repeatedly may cause damage to the device. -
Page 17: Device Usage And Maintenance
Usage and maintenance SH-H2 Usage and maintenance 1. How to use Step 1: Open your palms towards the air outlet of the device Step 2: Put your palms upside down towards the air outlet of the device. Step 3: Slightly rub your hands together and dry hands. -
Page 18: Device Maintenance During Usage
Usage and maintenance SH-H2 2. Maintenance during usage Maintain the device’s cover After the period of usage and operation in the moist and dusty environment, the device’s cover may be foul due to these factors. Thus, it is necessary to clean the faucet body to keep the device clean. -
Page 19: Operation Cycle
Usage and maintenance SH-H2 3. Operation Cycle Standby Checking Standby for user Operate <3 minutes Operating period >3 minutes Stop operation Check whether user puts hands out of sensor area. In “Hot” mode, the air ow has highest temperature. In “Comfortable’” mode, the air ow is warm. -
Page 20: Problems During Usage
Problems during usage SH-H2 Problems during usage Symptom Solution The indicator light Check whether there is an ashes but the device obstruction in sensor area or try does not work. cleaning sensor eye. The device does Check power connection to...
