Summary of Contents for Dynaphos Expert QS-300

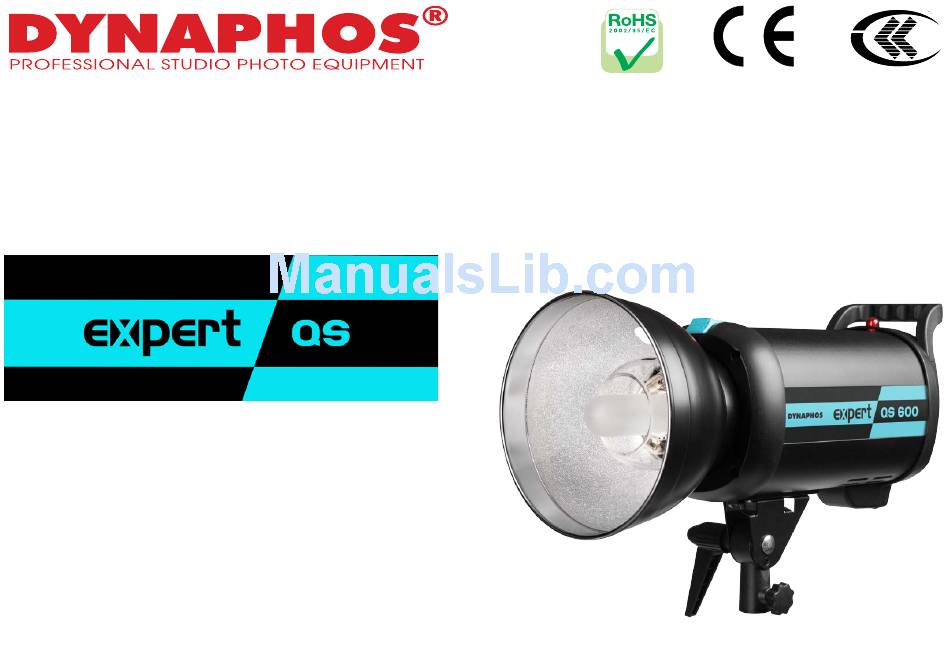

- Page 1 INSTRUCTION MANUAL Expert QS-300 Expert QS-600 www.dynaphos.com...
- Page 2 Savety Thank you for choosing DYNAPHOS studio lighting equipment! Before you proceed further, please read the instruction manual. Attention! Please, follow the savety instructions! • Keep out of reach of children! • Make sure that the power outlet you plug the flash is working correctly.
- Page 3 Guide overview 1. Photoeye; 2. Digital display; 3. Flash output controller; 4. Modeling lamp output controller; 5. Slave mode button; 6. “Test” button; 7. Sound back panel button; 8.Modeling lamp button; 9. Power switch; 10. USB port control; 11. Sync cord jack;...
- Page 4 Guide Mounting the flash and preparing to work Mount the flash unit onto an appropriate light stand and fix it. Adjust the horizontal angle and secure the handle. To take down the protective cap or mounted accessory, hold down the mount release button (pic. 1), turn the accessory counterclockwise and pull it forward.
- Page 5 If the flash is used carelessly about its temperature this may cause failure, in which case Dynaphos Ltd. reserves the right to refuse warranty repair.
- Page 6 Guide Sync triggering (check page 2) Plug the sync cable or connect the flash trigger receiver in the usb port jack Connect the sunchro cable or the receiver with the camera and set the camera on the max. shutter speed. (check the camera manual instructions) When pressing the camera shutter release, simultaneously the flash will fire an impulse.
- Page 7 Guide - mount the sender in the camera HotShoe connector with the control panel towards to you and tighten the nut - choose a working channel via the selector and turn on the sender from the power switch (check page 2) - place the receiver in the USB sync port of the flash and set on the same channel as the sender (check the further picture).
-
Page 8: Technical Specifications
IR, USB for FT-16 wireless and power control trigger Cooling active, overheating protection Sync voltage Operating voltage 200-240V/50-60Hz Dimensions 140x230x410 mm (without reflector) Weight 2.7 kg 3.0 kg Product number 010430 010431 www.dynaphos.com Sofia 1700, Proff. Alexander Foll 2, Entr.8, Shop 1. Tel: 02/ 4901 555; email: info@dynaphos.com...
