- P i c k u P B o o s t e r -

H i g H D e f B o o s t

& L i n e D r i v e r

u s e r ' s g u i D e

Table of Contents

Need help?

Do you have a question about the pickup booster and is the answer not in the manual?

Questions and answers

Summary of Contents for Duncan pickup booster

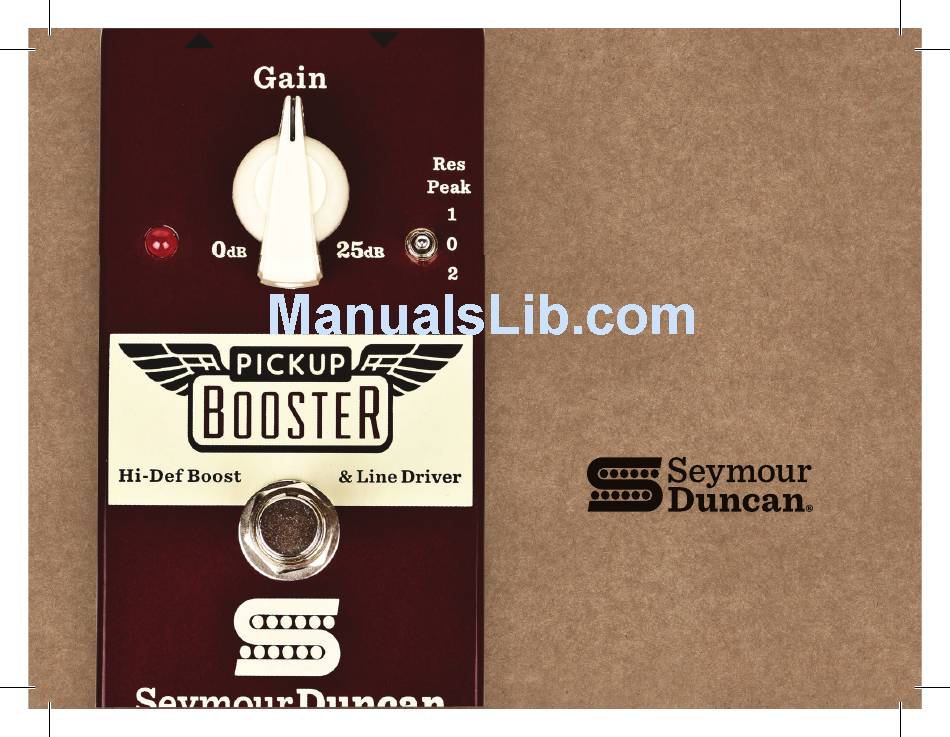

Page 1 - P i c k u P B o o s t e r - H i g H D e f B o o s t & L i n e D r i v e r u s e r ’ s g u i D e...
Page 2 The new Seymour Duncan Pickup Booster is a re-issue of our original pedal, but with a few key upgrades. The pedal retains the all discrete, class A, low-noise circuit design but the Gain control now can be turned down to unity (0dB).
Page 3 H o w i t w o r k s ( c o n t . ) resonance switch - The Resonance Switch interacts directly with your pickups, so it is only active when connected directly to the guitar. The Resonance Switch was designed for electric guitarists who use single coil pickups of the type typically found on Strat®...
Page 4 Resonance Switch in the center (“0”) position. Set your amp level appropriately. Engage the Pickup Booster by pressing the footswitch – the LED will come on when it’s active. 2. Rotate the Gain control knob clockwise until the desired amount of gain is achieved or keep it at 0dB for a line drive effect.
Page 5 s A M P L e s e t t i n g s The settings below are great starting points. The settings for the Resonance Switch only apply when the pedal is connected directly to your instrument. Clean, buffered boost This setting will give a transparent boost to your signal to drive the rest of your pedalboard with greater signal headroom and no loss of high-end, or use at the end of your pedal chain to...
Page 6 s A M P L e s e t t i n g s ( co nt.) Fattened Humbucker This setting, with the Resonance Switch on “0” and the Gain control all the way up, gives maximum saturation and sustain to a humbucker.
Page 7 L i M i t e D w a r r a N t y Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials, from the day this product is purchased. We will repair or replace this product, at our option, if it fails due to faulty workmanship or materials during this period.
