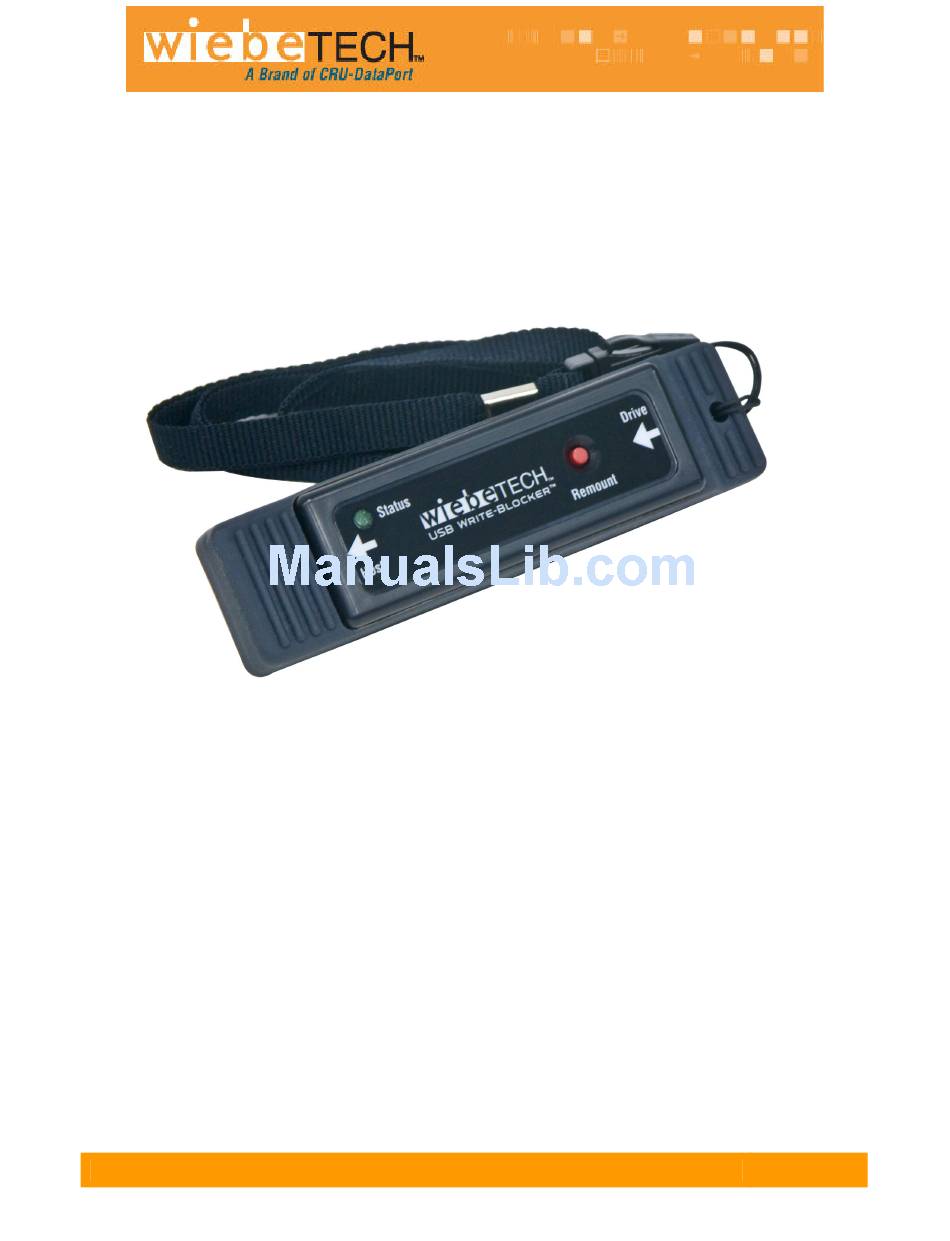

USB WRITEBLOCKER™
Features
Smallest USB Write-Blocking device on the market.
•
Easy, Write-Blocked access to USB drives at 8-10 MB/s. That's 20%-30% faster than the
•
competing product.
Works with any USB mass storage device.
•
Compatible with single storage devices with Multiple Mountable Volumes (multiple LUNs).
•
Support of USB 1.1/2.0 devices normally registered as "USB Mass Storage Device".
•
Easy to use! USB WriteBlocker simply connects between the device under capture device and
•
the computer.
U S B W r i t e B l o c k e r U s e r M a n u a l ( A 9 - 0 0 0 - 0 0 1 8 ) R E V 1 . 0
USER MANUAL
Revised July 13, 2009
- 1 -
Advertisement
Table of Contents
Summary of Contents for WiebeTech USB WRITEBLOCKER
-
Page 1: User Manual
• Support of USB 1.1/2.0 devices normally registered as “USB Mass Storage Device”. • Easy to use! USB WriteBlocker simply connects between the device under capture device and • the computer. U S B W r i t e B l o c k e r U s e r M a n u a l ( A 9 - 0 0 0 - 0 0 1 8 ) R E V 1 . 0... -
Page 2: Table Of Contents
1.1 USB WriteBlocker Accessories 1.2 Identifying Parts 2. Using USB WriteBlocker 2.1 USB WriteBlocker Host Connections 2.2 Accessing a Drive/Device with USB WriteBlocker 2.3 Using USB WriteBlocker Device Information Viewer 2.3.1 Attached Device Information 2.3.1.1 Date/Time 2.3.1.2 USB Vendor ID 2.3.1.3 USB Product ID... -
Page 3: Pre-Installation Steps
USB (A male to A female) Extension Cable Removable Lanyard Rubber Port Shield Quick Start Guide 1.2 Identifying Parts Take a moment to familiarize yourself with the parts of your new USB WriteBlocker. This will aid you in the remaining steps. Detachable Lanyard Protective Rubber Reset Button... -
Page 4: Using Usb Writeblocker
2. Using USB WriteBlocker 2.1 USB WriteBlocker Host Connections USB WriteBlocker is equipped with a USB Type A receptacle for attaching your hard drive, flash media or drive enclosure. USB WriteBlocker has a USB Type A plug for attaching to your computer. -
Page 5: Using Usb Writeblocker Device Information Viewer
The UWB Device Information Viewer is a software application designed to report information each time you access a drive/device with USB WriteBlocker. As you can see, there are two tabs on UWB Device Information Viewer that report information. One tab reports the information of the attached device. The other tab reports the information of the USB WriteBlocker. -
Page 6: Writeblocker Device Info
3. Usage with Mac and Windows Operating Systems 3.1 Usage with Macintosh Computers 3.1.1 Compatibility The USB WriteBlocker is Plug-and-Play compatible under Mac OS X 10.5. No drivers are needed. The USB 2.0 port is USB 1.1 compatible. 3.1.2 Using Volumes The hard drive attached to the USB WriteBlocker will appear as an icon representing the drive’s volume on the desktop. -
Page 7: Using Volumes
WiebeTech’s trusted write-blocking technology is firmware based, meaning that it can’t simply be turned off or on by a switch. If the WiebeTech device is working then you can rest assured that the firmware is actively write-blocking the device under capture device. -
Page 8: Technical Specifications
WiebeTech offers free phone support for 90 days after purchase (1-866-744- 8722). Email support is available at support@wiebetech.com. USB WriteBlocker is a trademark of CRU-DataPort. Other marks are the property of their respective owners. © 2009 CRU-DataPort. All rights reserved.
