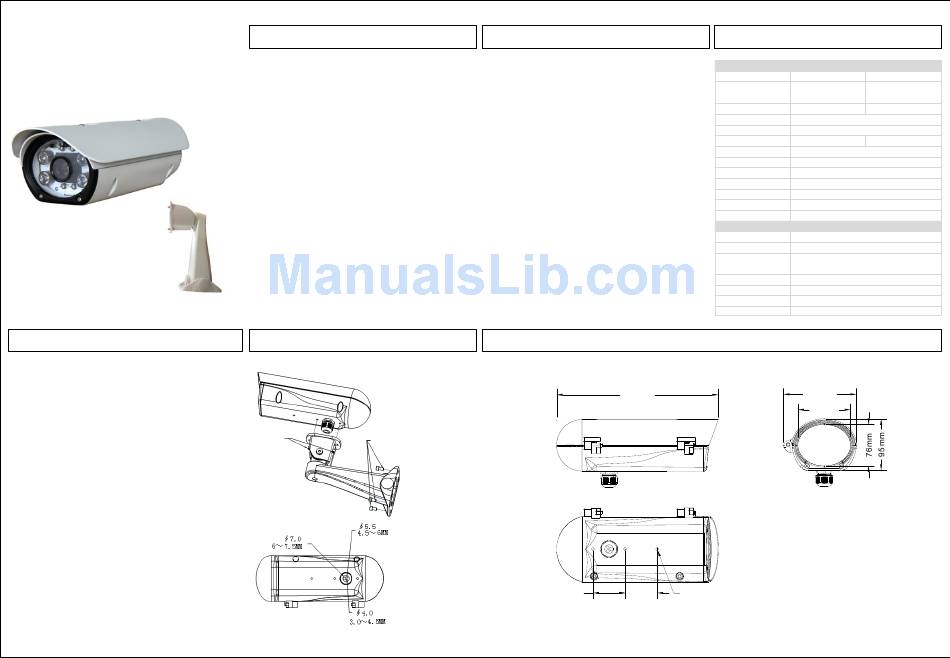

INSTRUCTION MANUAL

Smart ANPR Camera
Model: CC-2000NP
Before installing and using the camera,
please read this manual carefully.

ACCESSORY

CAMERA
wrench 3/16 ············································ 1ea
wrench screw ············································ 2ea
Spring washer ············································ 1ea
Flat washer ············································ 1ea
1" concord ············································ 2ea
Manual ············································ 1ea
BRACKET
Screw ············································ 4ea
Plastic anchor ············································ 4ea
Wrench ·············································1ea

PRECAUTIONS

■ Do not open or modify
Do not open the case except during maintenance and
installation, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause a fire, short-circuits
or damages.
■ Be careful when handling the unit
To prevent damage, do not drop the camera or subject it
to strong shock or vibration.
■ Install away from electric or magnetic fields
■ Protect from humidity and dust
■ Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen
or boiler room, as the temperature may rise to high levels.
■ Cleaning
Dirt can be removed from the case only by wiping it with
a soft cloth moistened with a soft detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to
support the camera.

INSTALLATION FOR BRACKET

Use UNC1/4 Screws
to fix the housing wit
h the mount
Fix the screws
to the wall

TROUBLESHOOTING

■ If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■ If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
Fluid (commercially available).
Is the monitor adjusted correctly?
■ At using AC24V,
Min. 5A SMPS is recommended to use
DIMENSION
60mm

SPECIFICATION

CAMERA
General spec NTSC
1/3" 520K Pixels
CCD type
Color
Total number of pixel 1020(H) x 507(V)
Min illumination 0.14Lux (F1.2, 30IRE)
Resolution 650 TV Lines
Shutter speed 1/60s – 1/100,000s
S/N ratio 50dB or more (AGC off)
Sync system Internal
Voltage DC 12[V] (10.0[V] ~ 16.0[V])
Power consumption Max 1.2[W]
Operating temp. -10˚C ~ +50˚C
Storage temp. -20˚C ~ +70˚C
Operating humidity Under 90% (Non-condensing)
HOUSING
Power supply DC12V Max 36W / AC24V Max 72W
IR angle 20˚(2PCS), 45˚ (2PCS), 60˚ (4PCS)
RS485 by wire, baud rate(9600) optional,
Control
built in PELCO-D protocol
Built-in Blower / IR Lamp
Operating temp. -15˚C ~ +60˚C
Dimension 302mm x 136mm
Weight 2.0Kg
302mm
3-1/4 UNC
60mm
MOUNTING HOLE
PAL
1/3" 610K Pixels
Color
1020(H) x 595(V)
1/50s – 1/100,000s
136mm
98mm
