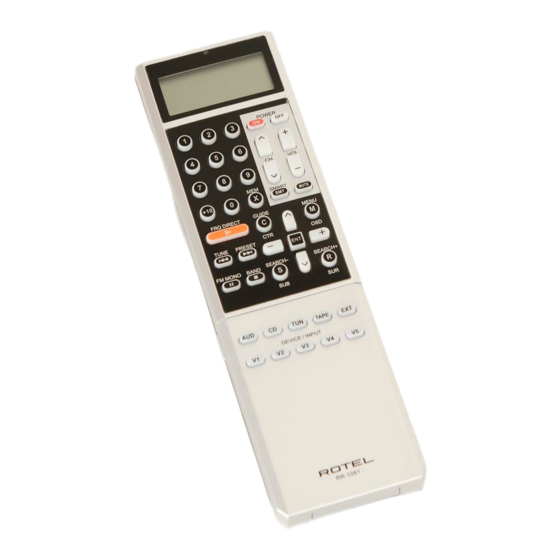

  • Page 1 POWER SMART MUTE GUIDE MENU FRQ DIRECT TUNE PRESET SEARCH- SEARCH+ FM MONO BAND TAPE DEVICE / INPUT RR-1061 RR-1061 Universal Learning Remote Control...

  • Page 2: Layout

    RR-1061 Layout Disposition des commandes POWER SMART MUTE GUIDE MENU FRQ DIRECT TUNE PRESET SEARCH- SEARCH+ FM MONO BAND TAPE DEVICE / INPUT RR-1061...
  • Page 3 POWER SMART MUTE GUIDE MENU FRQ DIRECT TUNE PRESET SEARCH- SEARCH+ FM MONO BAND DISC1 DISC2 DISC3 DISC4 DISC5 ZONE SUR+ PROG RANDOM REPEAT DISC- DISC+ PL C PL M DIGEST TITLE P-SCAN OPEN DISPLAY AUDIO ANGLE SBTITLE ZOOM DISP TAPE2 TONE D-SLT...

  • Page 4: Flip Down Cover

    RR-1061 Flip Down Cover Volet rabattable...

  • Page 5: Character Map

    Character Map Jeu des caractères affi chés Learning Commands Apprentissage de commandes POWER SMART MUTE GUIDE MENU FRQ DIRECT TUNE PRESET SEARCH- SEARCH+ FM MONO BAND TAPE DEVICE / INPUT...

  • Page 6: Table Of Contents

    567-q Programming by Auto-Search 56789-q Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Elec- tronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.
  • Page 7 English Learning Commands From Another Remote ....20 Learning Commands 567-q Multi-Step Button Learning Smart Macro Programming ........22 Smart Macro Programming 567-q Clearing a Smart Macro 56-q Changing a Smart Macro 56-q Clearing Learned commands ........24 Clearing a Single Learned Command 567-q Clearing All Learned Commands for a DEVICE/INPUT Button...

  • Page 8: Introduction

    Place the four AAA batteries inside (follow the polarity illustra- tions on the bottom of the compartment) and re- place the cover. RR-1061 - En-Fr - a.indd Spread 8 of 32 - Pages(8, 57)

  • Page 9: Overview

    Once the programming is complete, select a component with the press of a button to turn the RR-1061 into the remote control for your CD play- er, TV, or VCR. Here is the layout of the RR-1061:...

  • Page 10: Folding Cover

    The DEVICE/INPUT buttons are also used NOTE: in programming the RR-1061 and are available for storing and sending Smart Macros (automatic sequences of up to 20 learned commands). RR-1061 - En-Fr - a.indd Spread 10 of 32 - Pages(10, 55)

  • Page 11: Ext Button

    V1 device. Therefore, you cannot program or learn command codes for the EXT button. The V1 button should be used for Rotel or other DVD players, allowing you to select the normal input with the V1 button or the multichannel ana- log input with the EXT button.

  • Page 12: Secondary Command Buttons

    The SETUP button in the lower right corner under the folding cover, is used to enter the setup mode for programming, learning, relabeling, storing macros, and other confi guration functions. RR-1061 - En-Fr - a.indd Spread 12 of 32 - Pages(12, 53)

  • Page 13: Operating The Rr-1061

    English Operating the RR-1061 This section of the manual explains the basic op- eration of the RR-1061 and most of its standard features. The AUD DEVICE/INPUT button of the NOTE: RR-1061 is pre-programmed with control codes for Rotel A/V receivers or surround sound pro- cessors.

  • Page 14: Smart Macro Commands

    If a button is pressed that has no command, the LCD shows NO DATA. Smart Macro Commands Twenty of the buttons on the RR-1061 (the 10 DE- VICE/INPUT buttons plus the number buttons 0 – 9) can store multiple command macro sequences –...

  • Page 15: Programming

    SETUP button. Programming Rotel components by Model Search 567-q You can fi nd the correct 4-digit code for Rotel components by searching the database for the model number of your Rotel Audio, DVD, or CD component. the DEVICE/IN- When using the model search, PUT buttons can only be programmed for specifi...
  • Page 16 When using the brand the DEVICE/INPUT buttons can only be search, programmed for specifi c types of components as follows: AUD: Rotel audio components only CD players only TUN: Any component TAPE: Any component DVD only...
  • Page 17 English To program using the brand search: 1. Press the DEVICE/INPUT button where you wish to program this component’s codes (AUD, CD, TUN, TAPE and V1–V5). 2. Press the SETUP button (the LCD displays SET- UP). Press the ENT button to confi rm. 3.

  • Page 18: Programming By 4-Digit Code

    RR-1061 Programming by 4-Digit Code 567-q Find your audio/video component in the 4-digit code list. Then proceed as follows: 1. Press the DEVICE/INPUT button where you wish to program this component’s codes (AUD, CD, TUN, TAPE and V1–V5). 2. Press the SETUP button (the LCD displays SET- UP).

  • Page 19: 56789-Q

    English Programming by Auto-Search 56789-q To search for a code from the full list of available 4-digit codes for a type of component: 1. Press the DEVICE/INPUT button where you wish to program this component’s codes (AUD, CD, TUN, TAPE and V1–V5). 2.

  • Page 20: Learning Commands

    Learning. Learning Commands 567-q To teach the RR-1061 the commands from one of your other remotes, place the two remote controls end to end as shown in the illustration at the front of this manual. The IR signals sent by the other remote must be aimed at the IR emitter/sensor of the RR-1061.

  • Page 21: Multi-Step Button Learning

    English The RR-1061 has enough memory to NOTE: learn 600 commands. If the memory capacity is reached, the LCD displays FULL when you attempt to learn a command. Multi-Step Button Learning The fi ve buttons labeled SCAN, PTY, P-TUN, TP, TA provide a special option –...

  • Page 22: Smart Macro Programming

    NO (to erase the Smart Macro program- ming). Press the ENT button to confi rm. Smart Macro buttons can have custom NOTE: labels. See the Custom Labels section of the manual for information. RR-1061 - En-Fr - a.indd Spread 22 of 32 - Pages(22, 43)

  • Page 23: Changing A Smart Macro

    English Clearing a Smart Macro 56-q To clear a previously saved Smart Macro: 1. Press the SETUP button and then press the UP/ DOWN cursor buttons until SMART appears in the display. Press ENT. 2. Press the UP/DOWN cursor buttons until SMART CLEAR appears in the display.

  • Page 24: Clearing Learned Commands

    2. Press the SETUP button (the LCD displays SET- UP). Press the UP/DOWN cursor buttons un- til EDIT appears in the display. Press the ENT button to confi rm. RR-1061 - En-Fr - a.indd Spread 24 of 32 - Pages(24, 41)

  • Page 25: Custom Labels

    3. Press the ENT button to delete all learned com- mands for all DEVICE/INPUT buttons. Custom Labels Whenever you press a button on the RR-1061, its name appears in the display. By default, the labels appearing in the LCD when a button is pressed match the printed labels for each button.

  • Page 26: Editing Command Button Labels

    Press the ENT button to confi rm. 4. Press the UP/DOWN cursor buttons until EDIT KEY appears in the display. Press the ENT but- ton to confi rm. RR-1061 - En-Fr - a.indd Spread 26 of 32 - Pages(26, 39)

  • Page 27: Changing Smart Macro Labels

    English 5. Press the COMMAND button that you wish to relabel. The current label appears on the second line of the display. 6. Press the +/– buttons to select a character to change and the UP/DOWN cursor buttons to change the letter. The “Character Map” illus- tration shows the available characters.

  • Page 28: Additional Setup Options

    In many systems, the volume is adjusted at the TV set or the A/V processor. For convenience, the RR-1061 has a Volume Punch-Through feature that copies the volume and mute commands from either the TV device or AUD to DEVICE/INPUT buttons for other components such as CD play- ers, VCRs, SAT receivers, and DVD players.

  • Page 29: Disabling The Beep Tone

    English Disabling the Beep Tone As shipped from the factory, the RR-1061 beeps as confi rmation whenever a button is pressed. This feature can be disabled or enabled as follows: 1. Press the SETUP button (the LCD displays SET- UP).
  • Page 30 RECEIVE OK appears on the receiving remote. • If the data transfer is not successful, ERROR ap- pears in the LCD on the receiving remote. and the unit reverts to normal operating mode. RR-1061 - En-Fr - a.indd Spread 30 of 32 - Pages(30, 35)
  • Page 31 Rotel RR-1061. Restore Factory Defaults You can restore the RR-1061 to the factory default confi guration with a simple procedure described below. Restoring the factory confi guration restores all of the preset code sets for DEVICE/INPUT...
  • Page 32 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH England Phone: +44 (0)1903 221600 Fax: +44 (0)1903 221525 Rotel Deutschland Kleine Heide 12 D-33790 Halle/Westf. Germany Phone: +49 05201-87170 Fax: +49 05201-73370 www.rotel.com 082 OM RR-1061 • English 052208...
