Summary of Contents for HydroLogic ecospring

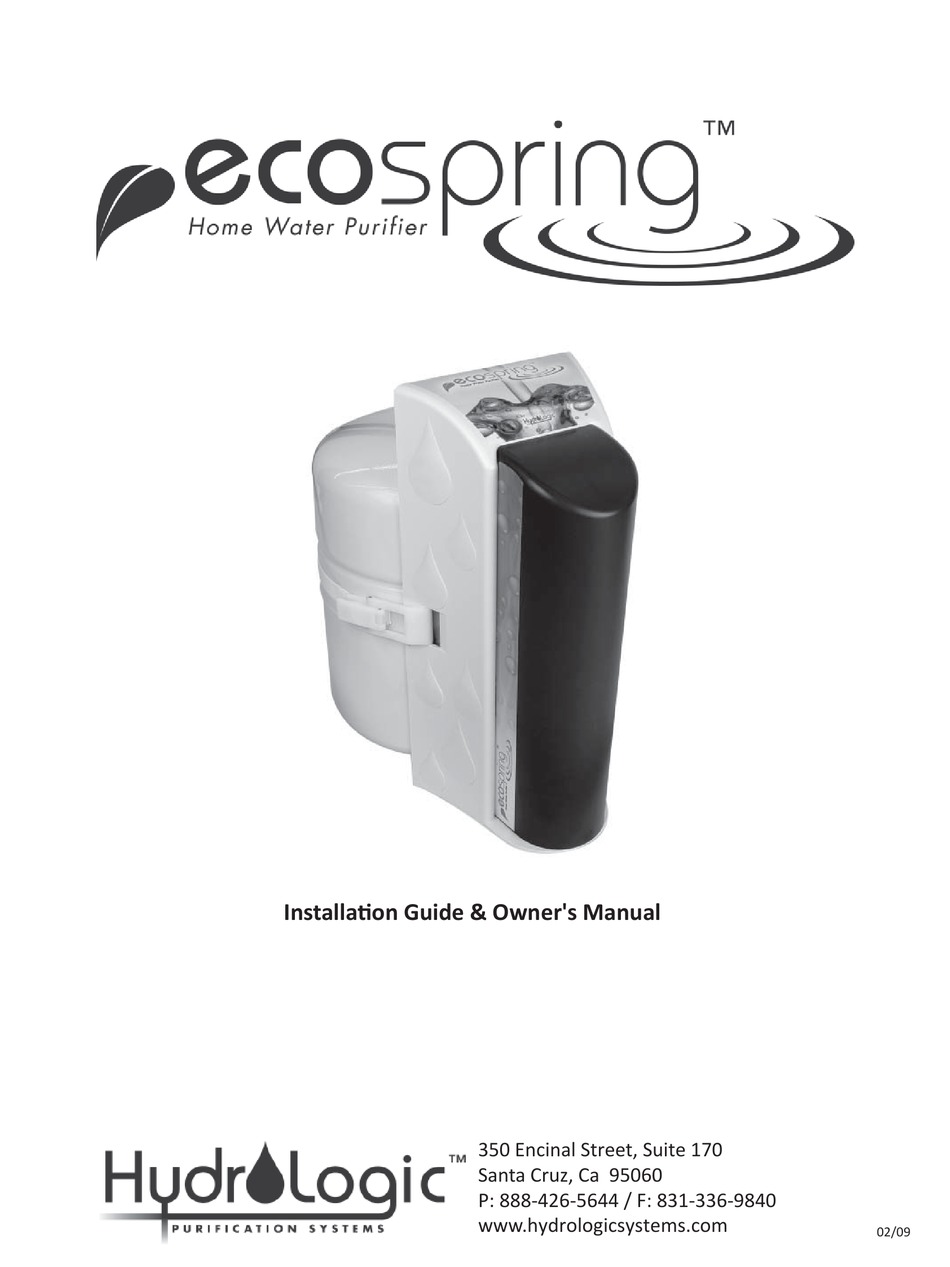

- Page 1 Installati on Guide & Owner's Manual 350 Encinal Street, Suite 170 Santa Cruz, Ca 95060 P: 888-426-5644 / F: 831-336-9840 2825 Matti son Lane, Suite 103 Santa Cruz, Ca 95065 www.hydrologicsystems.com 02/09 P: 888-426-5644 / F: 831-336-9840 www.eco-spring.com...
- Page 2 Introducti on to the EcoSpring System Congratulati ons on your purchase of the EcoSpring reverse osmosis system, welcome to the future of home drink- ing water purifi cati on You have purchased the most advanced, effi cient and easy to maintain reverse osmosis system available.
-
Page 3: Warranty
Other Rights This Warranty gives you specifi c legal rights and you may also have other rights which vary from state to state. Please fi ll out the form below and retain for future reference. EcoSpring Model: Date Code:... -
Page 4: System Specifications
System Specifi cati ons Performance Specifi cati ons Feed Water Requirements Membrane System w/Tank Pressure 40-80 psi (275 kPa - 552 kPa) Temp 40°F - 100°F (4°C - 38°C) Producti on 40 GPD 21.6 GPD <2000 mg/L (151 LPD) (81.8 LPD) Chlorine <1.0 mg/L TDS Rejecti on... - Page 5 Push Handle Airgap Faucet Determine the most practi cal under-the-sink locati on for placement of the EcoSpring system. Ensure that the locati on allows adequate access for cartridge re placement. 1. Place the system in the selected locati on. 2. Place the rubber seal (1) fl ush against the base of the faucet.
- Page 6 Feed and Drain Connecti on Feed Connecti on Note: The feed connecti on pictured on the box may be diff erent from what is included with the system. 1. Locate and turn off the angle stop valve on the cold water line feeding the sink. This valve will usually be located under the sink on the pipe coming out of the wall.
- Page 7 System Acti vati on and Flushing System Acti vati on and Inspecti on 1. Check all tubing connecti ons to ensure they are fi rmly seated. CHECK TO SEE THAT THE CARTRIDGE RETAINER CLIP IS PROPERLY ENGAGED AND LOCKED. Failure to keep the retaining clip in place will result in accidental leaks and fl ooding. 2.
-
Page 8: Installation Checklist
Installati on Checklist 1. System is located where it will not be subject to physical impacts or rough contact by heavy objects. 2. Feed water pressure to the unit is no less than 40 psi and no greater than 80 PSI. 3. -
Page 9: Maintenance
Maintenance Cartridge Replacement Close the feed water shut-off valve. 2. Close the tank shut-off valve. Open the dispensing faucet to relieve system pressure. Close dispensing faucet when fl ow has stopped. Remove the cover from the front of the system. Remove the retaining clip. Pull the cartridge off the system evenly at top and bott om.
