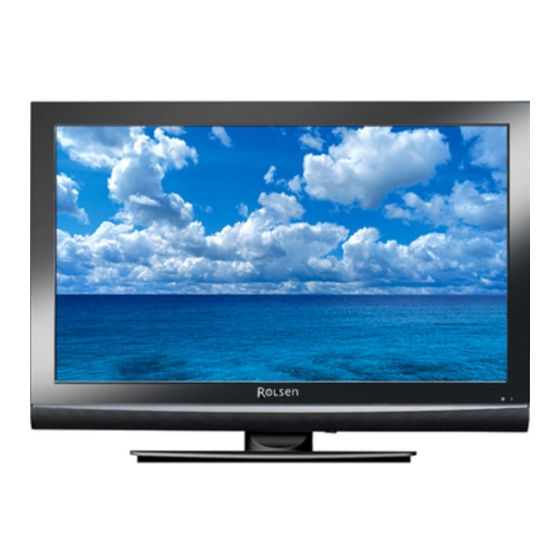

Rolsen RL-32B01 Service Manual

Rolsen RL-32B01 Service Manual

Liquid crystal display television

Advertisement

Rolsen

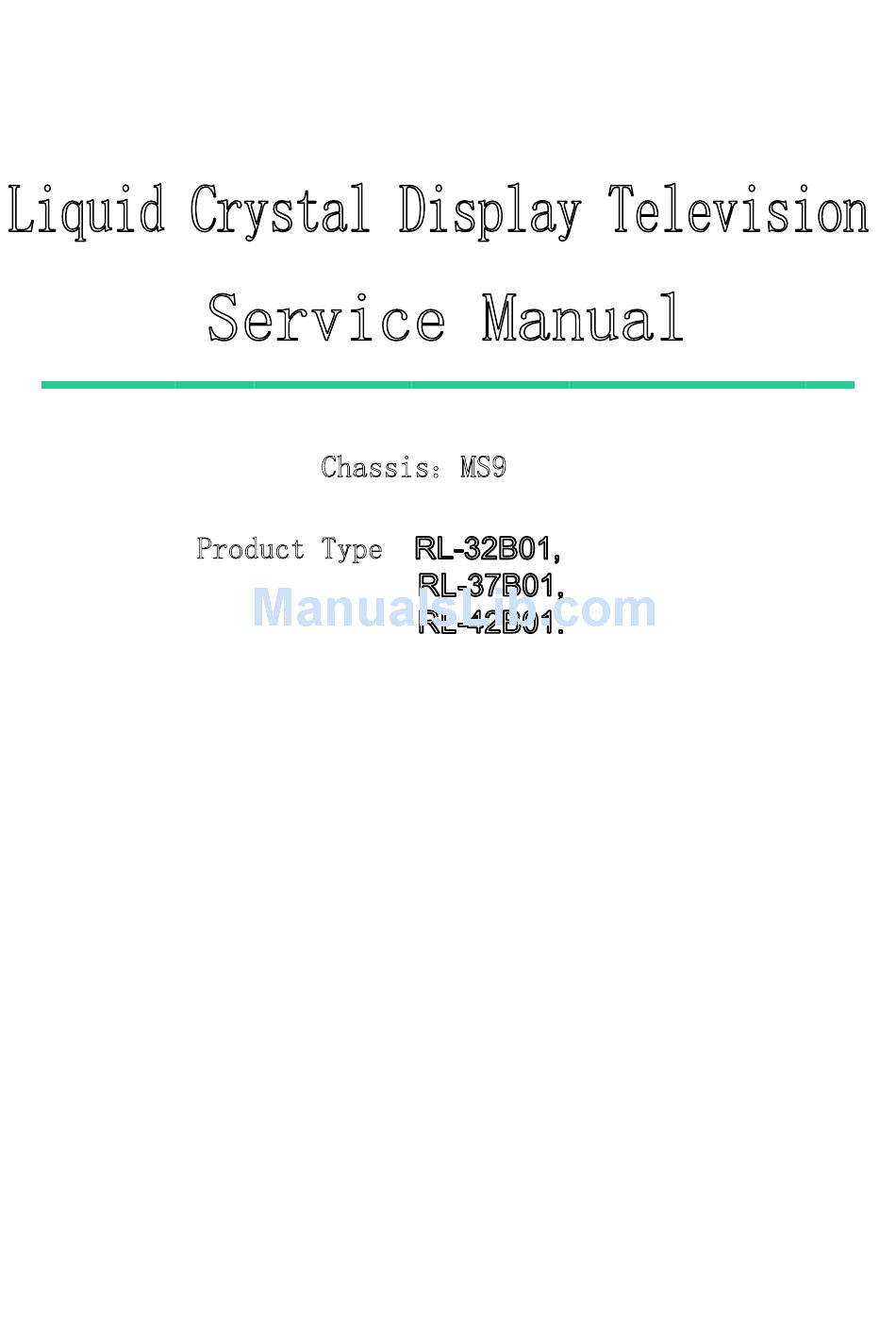

L i q u i d C r y s t a l D i s p l a y T e l e v i s i o n
S e r v i c e M a n u a l
C h a s s i s : M S 9
P r o d u c t T y p e :

Advertisement

Table of Contents
loading

Summary of Contents for Rolsen RL-32B01

  • Page 1 Rolsen L i q u i d C r y s t a l D i s p l a y T e l e v i s i o n S e r v i c e M a n u a l C h a s s i s :...
  • Page 2: Table Of Contents

    Contents 1. Product Safety Servicing Guidelines ........1 2. Product Function Specifications ..........3 2-1 Product Function ............. 3 2-2 Specifications ............4 3. Lcd Panel Spec ............. 5 3-1 General Description ..........5 3-2 General Features ............. 5 4. Block Diagram .............. 6 4-1 Chassis Block Diagram ..........
  • Page 3: Product Safety Servicing Guidelines

    1. Product Safety Servicing Guidelines WARNING: Service should not be attempted by anyone unfamiliar with the necessary precaution on this receiver. The following are the necessary precaution to be observed before serving this chassis. 1. Since the power supply circuit of this receiver is directly connected to the AC power line, an Isolation transformer should be used during any dynamic service to avoid possible shock hazard.
  • Page 4 intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the set. Many electrical and mechanical parts in the chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection. When replacement parts are required, be sure the service technician uses replacement parts specified by us that have the same characteristics as the original part.
  • Page 5: Product Function Specifications

    2、Product Function and Specifications 2-1、Product Function...
  • Page 6: Specifications

    2 2 - - 2 2 Specifications...
  • Page 7: Lcd Panel Spec

    3 3 . . L L C C D D P P a a n n e e l l S S p p e e c c 3 3 - - 1 1 G G e e n n e e r r a a l l D D e e s s c c r r i i p p t t i i o o n n LCD32/37/4229’s LCD Panel is a TFT Liquid Crystal Display module.
  • Page 8: Block Diagram

    Block Diagram 4-1 Chassis Block Diagram 4-1-1 Main Board...
  • Page 9 4-1-2 Power Board LCD3707 LCD4007...
  • Page 10: Signal Processing Part

    4-2 S ig n a l P r o c e s si n g Pa r t SAW FILTER TUNER Hs9453 TDQ-6FT TDA9886 Hs6257 HDMI INPUT LCD PANEL VGA INPUT COMPONENT INPUT VGA/COMPONENT AUDIO INPUT VIDEO INPUT FLASH PSL25V040 S-VIDEO INPUT AV/S-VIDEO...
  • Page 12: Service Mode And Adjustment

    5. Service Mode And Adjustment 5-1 Service Mode Use the remote control, first open MAIN MENU with MENU button, and choose SOUND with the CHANNEL UP/DOWN button, then choose the BALANCE with VOLUME UP, while Balance value is 0, press 0、5、3、2,you can enter factory menu.
  • Page 13 Option Factory Init SOURCE QingDao BRIGHT 0 HuangDao BRIGHT 50 Guiyang BRIGHT 100 Hungary CONTRAST 0 France CONTRAST 50 Austria CONTRAST 100 155 CLEAR PROTECTLY TOFAC CLEAR UNPROTECTLY HDMI Cable Standard Test Pattern Version BLUE Version: LCD3206NEU(1)_VER1.10.200708 Panel Type: LG 32 (1366*768) FLASH : PS25LV040...
  • Page 14 Design Menu Picture Mode Sound Mode Sound Settings Power Save PIP Option MOVESHARPNESS LipSync Picture Mode Sound Mode Standard 120Hz Standard Brightness 500Hz Contrast 1.5KHz Colour 5KHz Bright Brightness 10KHz Contrast Music 120Hz Colour 500Hz Soft Brightness 1.5KHz Contrast 5KHz Colour 10KHz Speech...
  • Page 15: Software Updating

    6. Software Updating 6-1、Updating Tool - You can update the software through a special tool (show as below)
  • Page 16: 6-2、Software Updating Operation

    6-2、Software Updating Operation 1、Connect the Debug board to the TV use VGA interface, then connect the Debug board to the computer, just as the pictures showing.
  • Page 17 2.Set the ISP_TOOL4.0.9 -------only for the first time update. DLPORTIO.dll and FTD2XX.DLL must be in the same folder 1) Find the folder where the ISP_TOOL4.0.9 lies in. Note: DLPORTIO.dll and FTD2XX.DLL must be in the same folder. 2) Double click the ISP_TOOL4.0.9 icon, and then a dialog will show as below.
  • Page 18 You should set the Config like what the picture shows.
  • Page 20 4) After you have finished all above, you should click the Apply button to complete the configuration. 3. Turn on the TV, then we can update. 4. Double click the ISP_TOOL4.0.9 icon, and then a dialog will show as below.
  • Page 21 5. Click the Read button. And then do as shown below.
  • Page 22 6. Find the update file in your computer.
  • Page 23 7. Double click the update file. A dialog will show as below. 8. Click the Auto button. And then do as shown below.
  • Page 24 9. Click the Connect button. And then do as shown below.
  • Page 25 10. Click the Run button. 11. When the update is finished, a dialog will show as below.
  • Page 26: Bill Of Materials

    7.Bill Of Materials 1043771 RSAG7.820.1037 MAIN BOARD 1029032 CAPACITOR CD110-16V-470u-M C194 C195 C196 C197 C292 C348 1026442 CAPACITOR CD110-25V-470U-M C295 1040729 INDUCTOR LGB0606-100u-J L10 L11 1029981 CW574CS 1029213 SAW FILTER HS9453 1029211 SAW FILTER HS6257 1029029 TUNER TDQ-6FT/W126H U4(EMC) 1029018 PLUG TJC10-3A 1028546...
  • Page 27 1026742 RESISTOR RC0603JR-07-10R R147 R150 R212 R214 R215 R216 R217 1026742 RESISTOR RC0603JR-07-10R R326 R342 R327 R328 R378 R379 R380 1026742 RESISTOR RC0603JR-07-10R R124 R123 R122 R410 R409 R411 1029177 RESISTOR RC0603JR-07-33R R491 1026771 RESISTOR RC0603JR-07-47R R104 R125 R152 R338 R339 R340 1026760 RESISTOR RC0603JR-07-75R...
  • Page 28 1026752 RESISTOR RC0603JR-07-10K R612 R631 R616 R619 R60 R10 1026752 RESISTOR RC0603JR-07-10K R163 R166 R167 R168 R169 R241 R260 1026752 RESISTOR RC0603JR-07-10K R272 R275 R319 R354 R355 R359 R470 1026752 RESISTOR RC0603JR-07-10K R2 R6 R15 R16 R164 R165 R318 R476 1026755 RESISTOR RC0603JR-07-12K...
  • Page 29 1160 1026703 CAPACITOR CC0603KRX7R7BB104 C32 C34 C35 C36 C37 C38 C54 C55 1170 1026703 CAPACITOR CC0603KRX7R7BB104 C56 C57 C58 C106 C107 C109 C282 1180 1026703 CAPACITOR CC0603KRX7R7BB104 C110 C111 C112 C113 C114 C115 C116 C117 1190 1026703 CAPACITOR CC0603KRX7R7BB104 C118 C119 C120 C121 C122 C123 C124 C125 1200 1026703 CAPACITOR...
  • Page 30 1550 1029194 DIODE 1N4148W D8 D25 D27 D28 D29 D58 D59 1560 1029194 DIODE 1N4148W D60 D21 1570 1026718 DIODE BAV99LT1 D10 D20 D35 D36 D37 1580 1031016 DIODE BAV70L D6 D5 1590 1029195 DIODE LM3Z5V6T1G D3 D4 D11 D30 D33 D1 D2 1600 1038009 DIODE...
  • Page 31 1940 1037353 51U019S-339N-A3R P1 P2 1950 1031397 CM1213-04MR N15 N16 N2 N3 1960 1029141 24LC02B-I/SN N13 N4 EDID 1970 1038024 AT24C04N-10SU-2.7 HDCP 1980 1035364 PACDN044YB5R 1990 1036218 CS4344CZ 2000 1035823 CERAMIC OSC JAS14C 2010 1038013 CERAMIC OSC JAS4K 2020 1039948 TMDS341A 2030 1041656...
  • Page 32 2330 1041143 DIODE SRF1560CT VD812 2340 1029202 FUSE 061806.3A △F801 2350 1026919 FUSE SUPPOTER RSR7.736.0102 2360 1032959 PC817B N804 N805 N806 2370 1038535 FQPF10N60C V805 V806 2380 1038573 FQPF3N80C V809 2390 1028573 TRANSISTOR FQA24N50 V801A 2400 1037228 NTD4809N-1G V813 2410 1038536 KA431AZ N807 N808...
  • Page 33 2720 1027209 JUMPER 20MM W832 W833 W835 2730 1039375 DIODE 05W30A VZ811 2740 1027034 DIODE 1N4148 VD820 VD822 2750 1026650 DIODE RM11C VD811 2760 1026639 DIODE 05W3.6B VZ816 2770 1026644 DIODE 05W15B VZ813 2780 1039376 DIODE 05W33B VZ805 2790 1034546 DIODE RG1C VD818...
  • Page 34 3110 1039186 RESISTOR RC1206JR-07-680K R901 R902 R903 3120 1031202 CAPACITOR CC0805JRNPO9BN102 C811 C814 C815 C825 C826 C870 C871 3130 1038983 CAPACITOR CC0805KRX7R9BB222 C856 3140 1028465 CAPACITOR CC0805KRX7R9BB104 C810 C812 C816 C817 C818 C819 C821 C822 3150 1028465 CAPACITOR CC0805KRX7R9BB104 C824 C834 C835 C836 C837 C838 3160 1028465 CAPACITOR...
  • Page 35 3500 1026416 TOUCH SWITCH KAN-C202-5 SWK01 SWK02 SWK03 SWK04 SWK05 SWK06 3510 1026416 TOUCH SWITCH KAN-C202-5 SWK07 3520 1027209 JUMPER RK07 RK08 3530 1026530 RESISTOR RT13-1/6W-2K2-J RK01 3540 1026530 RESISTOR RT13-1/6W-2K2-J RK02 3550 1035579 RESISTOR RT13-1/6W-1K5-J RK03 3560 1026526 RESISTOR RT13-1/6W-1K0-J RK04 3570...
  • Page 36: Troubleshooting

    8. Troubleshooting Trouble Measure Turn on the TV, The LED is red, Replace the main board or no display on screen updating the software. Turn on the TV, The LED is blue, You should replace the but no picture or/and no sound main board.
  • Page 37: Ciruit Diagram

    XP28 STANDBY 15/2W 5Vstb_LCD R598 5Vstb +12V LA32 Other R10=10K,R12=NC; VOUT LA31 C183 C180 C181 SR34 C184 5Vstb +3.3V 47UF/16V 0.1uF 12V/5V +12V_Tuner 100UF/16V LM7808 R251 R252 LA33 0.1uF R253 R258 5Vstb_LCD XP-14 R243 R249 12V/5V 5Vstb 4.7K 5Vstb R261 BL-ON/OFF 3904 R250...
  • Page 38 MP1580 VDDC=1.2V 5Vstb VDDC 15uH R358 R360 C343 C347 OCSET 钽 5Vstb 5Vst C348 C349 470u NC/FB R361 5Vstb_LCD R359 钽 NC/FB C344 RB060L MARK MARK MARK C345 C346 100n 100n 0.8*(1+1/2)=1.2V MARK MARK MARK MARK 1117-3.3 5Vst +3.3AVDD 10uH Vout C240 C241...
  • Page 39 HDMIMUX3.3VHDMIMUX3.3V HDMIMUX3.3V HDMIMUX3.3V +3.3AVDD 10uH 0.1uF HDMIMUX3.3V HPD_SINK 10uF/16V HDMI2-RX2+ DATA2+ HDMI-DDC-SDA HPD2 SDA_SINK HDMI_SDA DATA2 SHIELD HDMI2-DDC-SDA HDMI-DDC-SCL SDA2 SCL-SINK HDMI_SCL HDMI2-RX2- DATA2- HDMI2-DDC-SCL SCL2 HDMI2-RX1+ DATA1+ DATA1 SHIELD TXCLK - TXCLK- HDMI2-RX1- DAT1A- HDMI2-RXC- TXCLK + TXCLK+ HDMI2-RX0+ DATA0+ HDMIMUX3.3V HDMI2-RXC+...
  • Page 40 VGA/5V R320 R326 C315 47nF VGA-B+ BIN+ R327 C316 47nF VGA-G+ GIN+ R328 C317 47nF VGA-R+ RIN+ R334 R335 R336 R337 C312 BAV99 BAV99 BAV99 R338 C318 47nF BIN- C308 C309 C310 R339 C319 47nF GIN- R340 C320 47nF RIN- 0.1uF 0.1uF 0.1uF...
  • Page 41 XP12 SC_R SC_B R374 DMP_Y SC_G R447 XP12 R368 R370 XP21 AV1-V AV1_L SC2_Lin DMP-L DMP-R R369 R371 AV1_R SC2_Rin XP-04 DIODE-S XP22 IR-in USB-ON/OFF XP-03 Title Size Number Revision Date: 2007-7-15 Sheet of File: E:\LCD2619EU LCD3219EU\ZB_C\05_DMP.SCH Drawn By:...
  • Page 42 AV2-Vin+ AV3-L 左 R150 C104 AV3-R SIGNAL R151 黄 C103 SIGNAL 470P AV2-Vin- SC2_Lout R152 中 SC2_Rout R135 XS1B AV2-L AV2-Lin SIGNAL R131 左 下 白 SC2_Lin SIGNAL R130 AV2-Rin SIGNAL R132 黄 AV2_out SC2_Rin 右 R133 Scart1_Lout R137 R138 R134 SIGNAL R139...
  • Page 43 U23 PIN2 connected to PIN1 B/G,DK,I,L U23 PIN2 connected to GND L' I2C ADDRESS(R263 NC): 5V-IF READ is 0X87 5V-IF WRITE is 0X86 4.7K 4.7K 4.7K IF_TV NC/680K_1% 10nF IF-AFT R458 IF-AGC R443 3904 1.2K 4MHz C332 10nF NC/180K_1% 0.1uF 100K 1.5nF 0.1uF...
  • Page 44 AUOut2 for MST9X89 only Location NearIC Pin. near output Location NearIC Pin. +3.3V near output +3.3V R153 C126 2.2uF AUOutR2 AUOut2-R AUOut2-R C151 R170 7 5 3 1 7 5 3 1 R162 AMP-Rout R154 C127 2.2uF PH-Rout R155 C128 2.2uF RP4.7KX4 RP4.7KX4...
  • Page 45 6VBuf2 12V_OP OP_VCC2 OP_VCC2 2.2uF 2.2uF 0.1uF 0.1uF 47UF/16V Scart1_R Scart1_Rout 2.2uF PH-R1out1 AUOut2-R AUOut2-R PH- R1out PH-R1out TL062 TL062 R456 89_phonel 100pF 100pF OP_VCC2 OP_VCC2 2.2uF 2.2uF Scart1_L Scart1_Lout 2.2uF PH-L1out1 AUOut2-L AUOut2-L PH- L1out PH-L1out TL062 TL062 R450 89_phoner 100pF 100pF...
  • Page 46 121SN1 C291 6VBuf1 12V_OP C295 0.1uF AMP-Lin 12V_OP 1000uF/35V RXXX R269 R465 R277 R278 R469 OP_VCC1 R631 C258 C444 C448 C273 2.2uF 100u Phone_L N11A 0.1uF Phone_L R650 R467 SHUTDOWN R471 C274 4.7uF 89_phonel R272 AMP-L AMP-L C450 4.7uF +12V R477 L602 C277...
  • Page 47 05_DMP 09_4052 10_TPA3101D 05_DMP.SCH 09_4052.SCH 10_TPA3101D.SCH 03_HDMI 08_MST(EU) 04_VGA 03_HDMI.SCH 08_MST(EU).SCH 04_VGA.SCH 07_IF 01_SYS Power 07_IF.SCH 01_SYS Power.SCH 06_AV INPUT(EU) 02_MST9X89BL POWER 06_AV INPUT(EU).SCH 02_MST9X89BL POWER.SCH Title Size Number Revision Date: 2007-7-15 Sheet of File: E:\LCD2619EU LCD3219EU\ZB_C\11_ALL.Sch Drawn By:...

This manual is also suitable for:

Rl-37b01Rl-42b01
