Summary of Contents for CG VSC ? 1
- Page 1 VSC ‐ 1 USER MANUAL AND INSTALLATION GUIDE...

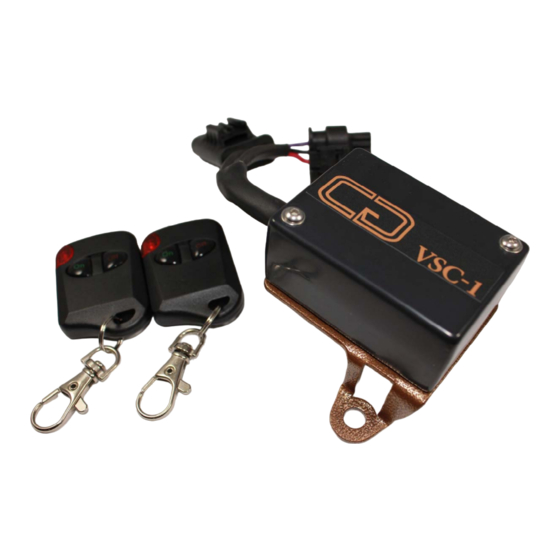

- Page 2 The controller mounts direct‐ ly to the valve actuator motor, located near the muffler. Installa on is shown on the CG Precision VS ‐ 1 exhaust system for the BMW F20/F21/F22/ F30/F32 M135i/M235i/335i/435i. The VSC ‐ 1 pack‐...
- Page 3 M135i, M235i, 335i (ix) and 435i (ix) equipped with the factory BMW electronic exhaust valve actuator. When used with the CG Precision VS‐1 exhaust system, it pro‐ vides an aggressive and exo c exhaust note while open, and a sporty, less aggressive sound while closed. The VSC‐1 can be used on the following exhaust systems:...
- Page 4 Proper Use: Use of the VSC‐1 will automa cally default the exhaust valve to the open posi on on every startup. Close the exhaust valve by briefly pressing the “On” bu on Open the exhaust valve by briefly pressing the ...
- Page 5 Installa on: Tools Required: 10mm box end wrench or small socket wrench Step 1: With the car completely off, locate the valve actu‐ ator motor near the muffler. Remove the factory plug from the motor by depressing the tab on top of the connector and pulling.
- Page 6 Step 2: Place the VSC‐1 controller onto the motor. Replace and ghten the two screws. Plug the small connector on the VSC‐1 into the motor and the large connector on the VSC‐1 into the factory plug, un l a clicking sound is heard.
- Page 7 Step 3: You are ready to start your vehicle and enjoy the complete control over your cars sound and perfor‐ mance exclusively offered by the CG Precision VSC‐1 controller. Failure to follow the procedures in this document may cause product damage. CG Precision has no control over other a ermarket manufacturers’...
- Page 8 WWW.CGPRECISION.COM © All images and content are property of CG Precision LLC.
