ACME PoliSpray 3 Operation Instructions

High-pressure spray gun
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Description

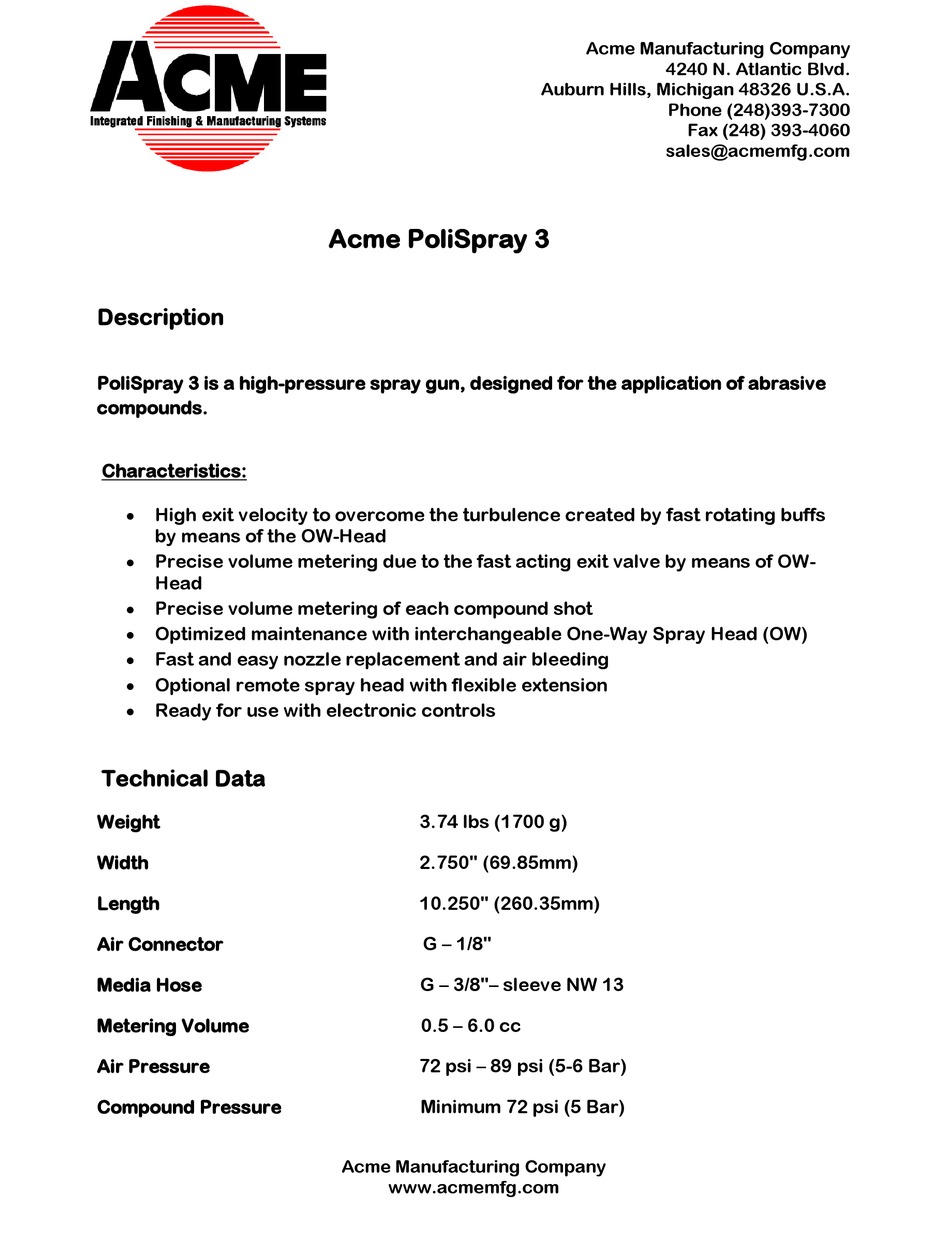

PoliSpray 3 is a high-pressure spray gun, designed for the application of abrasive
compounds.
Characteristics:
High exit velocity to overcome the turbulence created by fast rotating buffs
by means of the OW-Head
Precise volume metering due to the fast acting exit valve by means of OW-
Head
Precise volume metering of each compound shot
Optimized maintenance with interchangeable One-Way Spray Head (OW)
Fast and easy nozzle replacement and air bleeding
Optional remote spray head with flexible extension
Ready for use with electronic controls

Technical Data

Weight
Width
Length
Air Connector
Media Hose
Metering Volume
Air Pressure
Compound Pressure
Acme PoliSpray 3
3.74 lbs (1700 g)
2.750" (69.85mm)
10.250" (260.35mm)
G – 1/8"
G – 3/8"– sleeve NW 13
0.5 – 6.0 cc
72 psi – 89 psi (5-6 Bar)
Minimum 72 psi (5 Bar)
Acme Manufacturing Company
www.acmemfg.com
Acme Manufacturing Company
4240 N. Atlantic Blvd.
Auburn Hills, Michigan 48326 U.S.A.
Phone (248)393-7300
Fax (248) 393-4060
