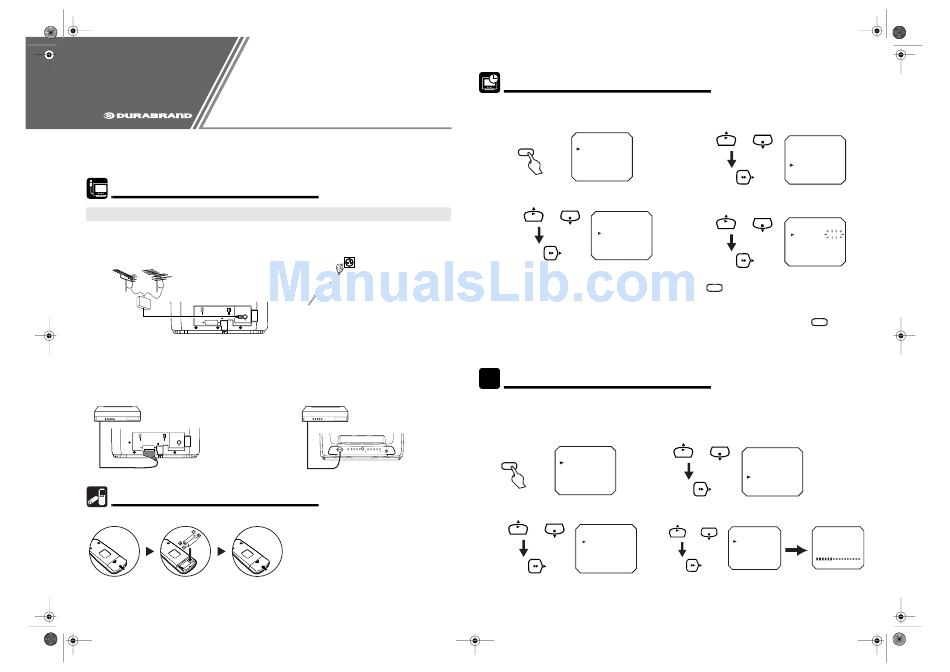

QUICK SETUP GUIDE
Congratulations on your purchase of a DURABRAND TV-Video Combi. This Quick Setup Guide takes
you through the first-time setup with simple instructions so you can enjoy exceptional audio and video
quality as soon as possible. Please refer to the Owner's manual for detailed instructions. If you have read
your instructions and still need assistance, call ASDA helpline at 0845-300-7775.
Unless stated, all procedures described use the remote control.
Connection
WARNING! Never make or change connections with the power switched on.
•
Connecting the TV-Video Combi
1.
Insert the anntena cable plug into the
AERIAL socket.
UHF VHF
VHF/UHF
MIXER
EXT 1/AV1
coaxial cable
(not supplid)
If the little red STANDBY indicator on the front panel does not light on, power on the unit with the
Note:
main power switch. The main power switch is located on the left side panel.
•
Connecting Additional Devices
Connect other devices such as a decoder, satellite receiver, camcorder, etc.
Connecting to the EXT1/AV1 scart socket
EXT 1/AV1
scart cable (not supplid)
Loading Batteries in the Remote Control
Install two R6 batteries matching the polarity indicated inside the battery compartment.
Caution
Do not mix old and new batteries. (Also never mix alkaline batteries with manganese batteries.)
for T6609BK
2.
Plug the unit into an AC outlet.
Connecting to the front AUDIO/VIDEO
input sockets.
VIDEO AUDIO
y HEADPHONE
STANDBY-ON - VOL + - PROG + C A E B D I
Audio/Video cable
1EMN20245
T6609BK
Setting the Clock
Set the 24-hour clock.
1.
Press "MENU".
MENU
MENU
TIMER
SET UP
INITIAL
3.
Select "CLOCK".
Press or .
STOP
PLAY
INITIAL
CH TUNING
CLOCK
Press .
5.
Select the month, day, hour and minute
in the same way.
Note:
• Although seconds are not displayed, they begin counting from 00 when you exit by pressing
Use this feature to synchronize the clock with the correct time.
• If the unit is unplugged or if there is a power failure for more than 1 minute, you may have to reset the
clock.
02
03
Channel Setting (Automatic Channel Preset)
04
DO NOT use this feature if you intend to use some of the pre-tuned channels. Use the "Manual" channel
presetting function to tune in the additional channels you require. Refer to the User's Manual for more
information.
1. 2.
Press "MENU". Select "INITIAL".
Press
MENU
MENU
TIMER
SET UP
INITIAL
3. 4.
Select "CH TUNING". Select "AUTO".
Press or .
STOP
Press
PLAY
INITIAL
CH TUNING
CLOCK
Press .
After you have connected additional devices (satellite receiver, etc.) through the aerial cable,
Note:
power them on. The automatic channel search will recognize them and save them.
2.
Select "INITIAL".
Press or .
STOP
PLAY
MENU
TIMER
SET UP
INITIAL
Press .
4.
Select "YEAR" and then select the relevant
year.
Press or .
STOP
PLAY CLOCK
YEAR 2 0 0 4
_ _
MONTH
_ _ _ _
DAY
_ _
HOUR
_ _
MINUTE
Press .
6.
Press to exit.
MENU
.
MENU
or .
STOP
PLAY
MENU
TIMER
SET UP
INITIAL
Press .
or .
STOP
PLAY CH TUNING AUTO
AUTO
MANUAL
MOVE
START
Press .
FINISH
