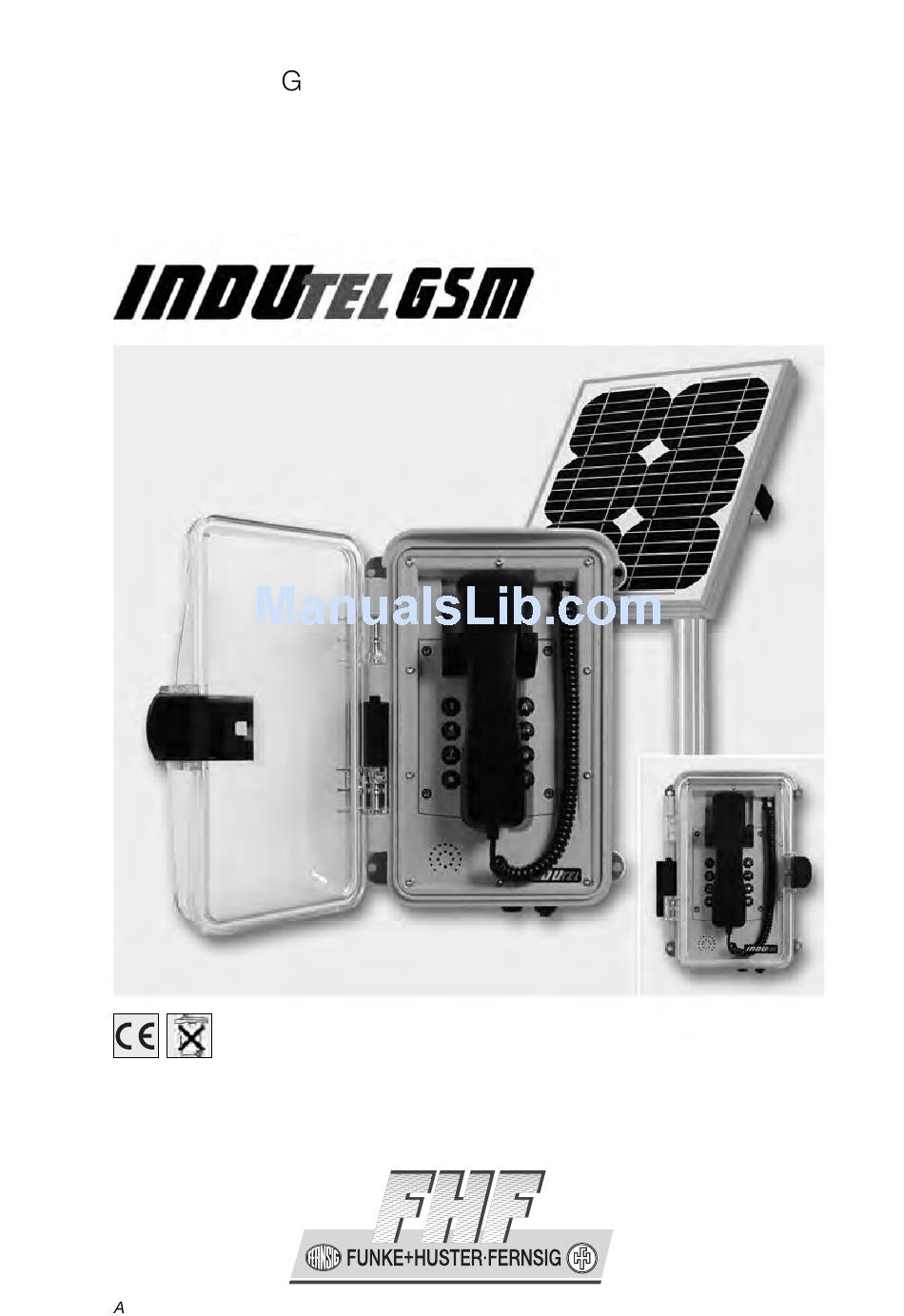

  • Page 1 Weatherproof SM telephone Operating manual FHF B 9605-50 12/09...

  • Page 2: Table Of Contents

    Please note Please read this user manual thoroughly before installing the device. Check that all component parts were delivered. Table of contents General operating instructions ................. 3 Original condition ....................4 Packaging content ...................... 4 Telephone default settings ..................4 Assembly and Installation ..................

  • Page 3: General Operating Instructions

    General operating instructions The Indutel GSM is intended for use with a solar panel or a DC voltage of 5V. An internal battery serves as a voltage buffer. At least one SIM card is required for operation. The SIM cards must have their PIN request deactivated.

  • Page 4: Original Condition

    Original condition Telephone default settings Password 0000 Call melody Call volume Receiver volume Microphone sensitivity The default settings can be restored at any time via the programming function. This will not however, change the new password. Assem bly and Installation Wall mounting Attach the mountings to the telephone using two screws for each.

  • Page 5: Serial Port Connection

    * drilling dimensions Serial port connection (RS485) The second cable entry point is intended for the serial port connection. Remove the key touchpad and take the sealing element out of the cable entry point. Pass the cable through the cable entry point and attach it to clamps 1, 2, 3 and 4.

  • Page 6: Operating Instructions

    Operating instructions Control elements Key touchpad Dialling _________________________ Number key pads Making / receiving calls When receiving a telephone call, lift the receiver to answer the call. To make a call, lift the receiver and dial the number you would like to call. Dialling Enter the number you would like to call using the touchpad.

  • Page 7: Programming

    The SMS necessary for programming must be sent to the Indutel GSM from another SMS enabled phone. The four (4) digit alphanumeric password currently valid must be included in the SMS text. In the following text, the password is equal to 0000.

  • Page 8: Programming Priority Settings For Sim Cards

    SIM cards priority settings The telephone always attempts to dial into the GSM net of SIM card 1. SMS text: FHF0000,FHF+SIMCHK,SIM1,FIX; The telephone always attempts to dial into the GSM net of SIM card 2. SMS text: FHF0000,FHF+SIMCHK,SIM2,FIX; The telephone first attempts to dial into the GSM net of SIM card 1. If this is unsuccessful, it will attempt to dial into the net of the second SIM card.

  • Page 9: Serial Port (Rs485)

    8 bit value If transmission has been successful, Indutel GSM sends If the data received is not correct or reception was impaired, Indutel GSM sends requesting a repeat of the transmission. This request will be repeated 6 times. After 6 failed attempts, sending will be terminated.

  • Page 10: General Instructions

    General instructions Service You have purchased a modern FHF product which is subject to a thorough quality control inspection. If you have any questions about the telephone or if a malfunction appears - even after the guarantee period - please contact FHF. Please have the model name and item number ready (see product label).

  • Page 11: Technical Fact Sheet

    Technical fact sheet GSM frequency bands Quad Band, GSM850, GSM 900, GSM1800, GSM1900 Voltage supply + 10% from solar panel or DC voltage supply Solar panel 10W recommended, open circuit voltage ≤ 6.9 V Maximum power supply 500 mA Battery Lithium Ion Nominal voltage 3.75V...

  • Page 12: Conformity Declaration

    Conformity declaration FHF Funke + Huster Fernsig GmbH confirm that the InduTel telephone is in conformance with the fundamental requirements and other relevant provisions of guideline 1999/5/EU (R&TTE). However, should problems occur during operation, please contact the technical support team at FHF. EMC (Electro Magnetic Compatibility) Guideline The device meets the requirements of the new EMC guideline 2004/108/EG, the Low Voltage guideline 2006/95/EG and the R&TTE guideline 1999/5/EG.
