Page 1: Operating Instructions

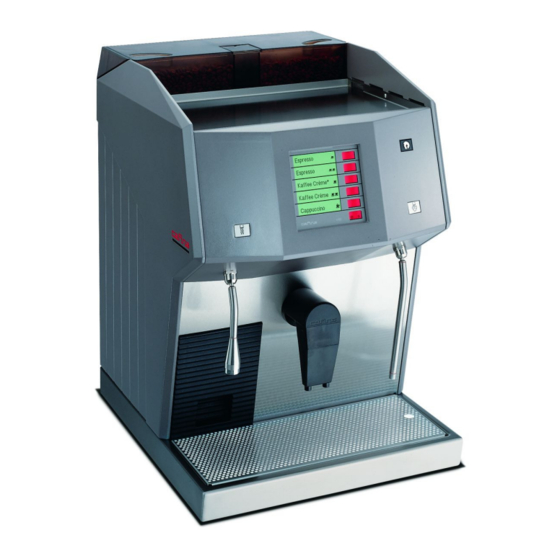

OPERATING INSTRUCTIONS Coffee Center c60 Cafina Ltd. Phone +41 (0)62 889 42 42 Roemerstrasse 2 +41 (0)62 889 42 89 5502 Hunzenschwil E-Mail info@cafina.ch Switzerland www.cafina.ch... -
Page 2: Table Of Contents
CONTENTS Connection and installation ♦ Warning ♦ Dimensions and parts of the machine ♦ Description of the parts ♦ Controls ♦ Commissioning ♦ Coffee bean container ♦ Choice of coffee beverage ♦ Different kind of coffee ♦ Coffee grounds drawer ♦... -
Page 3: Connection And Installation
CONNECTION AND INSTALLATION All Cafina machines are supplied ready for connection. Before a machine can be installed, however, the service outlets and the drain must be prepared (according to the connections diagram) and be located within 1 m. This work must be carried out by appropriately qualified personnel and be in strict accordance with the applicable regulations. -
Page 4: Warning
WARNING Maximum safety is one of those Cafina product features which receives our very special attention. Nevertheless if it is used incorrectly, an element of danger always remains with every item of technical apparatus in spite of all the precautions taken in the design. -
Page 5: Dimensions And Parts Of The Machine
DIMENSIONS AND PARTS OF THE MACHINE... -
Page 6: Description Of The Parts
DESCRIPTION OF THE PARTS Drip tray Coffee grounds drawer Hot water outlet Coffee outlet Steam outlet Hot water button Steam water button Key switch Coffee beverage button Display Cup tray Coffee bean container 1 Decaffeinated coffee filler Coffee bean container 2... -
Page 7: Controls
CONTROLS ON THE CAFINA c60 COFFEE MACHINE Manager KEY SWITCH POSTIONS: Maint. Service Position "0" = machine OFF (or cleaning) ♦ Position "Service" = machine ON ( key N° 1 ) ♦ Position "Manager" = programming by manager ( key N° 2 ) ♦... -
Page 8: Commissioning
COMMISSIONING Before switching the machine on, check that the water stop-cock is open and the electrical power is switched on. As soon as electricity is applied to the machine, " c60 " appears on the otherwise unilluminated display. Up to 15 different beverages can be programmed and listed on three display pages. Pressing the SHIFT button switches from one page to the next. -
Page 9: Coffee Bean Container
COFFEE BEAN CONTAINER Fill the coffee bean container (12, 14) with coffee beans of your choice for coffee with ♦ cream, espresso or decaffeinated coffee. When a coffee bean container is empty, the names of the beverages supplied by its ♦... -
Page 10: Choice Of Coffee Beverage
CHOICE OF COFFEE BEVERAGE The Cafina c60 provides a choice of different coffee beverages such as Espresso, Café ♦ Créme, Pot, Jug etc. The machine automatically prepares and dispenses the coffee upon pressing the desired beverage button (1 to 5) on the panel (9). Refer to page 8 (Commissioning) for programming the buttons. -
Page 11: Different Kind Of Coffee
DIFFERENT KIND OF COFFEE If you wish a different kind of coffee to that already loaded in the coffee bean container ♦ (e.g. decaffeinated espresso etc.), the procedure is as follows: Press the button marked "Decaffeinated". The cover (13) opens and "put in coffee" ♦... -
Page 12: Coffee Grounds Drawer
COFFEE GROUNDS DRAWER The dry coffee grounds are ejected into the coffee grounds drawer. When the drawer is ♦ full, the machine stops and "empty drawer!" appears on the display. The drawer cannot be over-filled. Cups of coffee already selected but not dispensed remain on memory. Take out the drawer, empty the coffee grounds and replace the drawer. -
Page 13: Hot Water And Steam Outlets
HOT WATER AND STEAM OUTLETS Either measured portions of hot water or steam can be obtained or the output can be ♦ controlled manually using buttons (6) and (7). Provision is made for the manager to program the portions and manual control buttons. There is also the possibility of controlling the hot water output via the coffee buttons. -
Page 14: Cleaning, Care And Maintenance
Coffee machines which are looked after do not only look better, they also make bettercoffee longer. For this purpose, Cafina machines include a carefully developed cleaning program. CAUTION: The machine must not be cleaned by immersing in water, pouring water over it or spraying it down. -
Page 15: Cleaning Program
The key switch can now be placed in the "Service" position, if you want the machine to start ♦ again after the cleaning program has finished, otherwise the machine switches itself off at the end of the program and "Cafina c60" appears on the display. -15-... -
Page 16: Setting And Programming
SETTING AND PROGRAMMING The following functions can be performed with the key switch in the "Manager" position: ♦ daily counter read and delete water quantity - adjust to suit coffee beverage - set pouring time and select hot water or steam coffee quantity set quantity in steps of +/- 1gramme lock buttons... -
Page 17: Daily Counter
DAILY COUNTER The daily counter registers all the beverages dispensed. Double orders count as two cups. ♦ The number of single and double orders are totalled for the various beverages. Measured output of hot water is also registered. To access the counter place the key switch in the "Manager" position and select the daily ♦... -
Page 18: Change Water Quantity
CHANGE WATER QUANTITY This menu item enables you to vary the quantity of water for each beverage to suit the size ♦ of cup. With the key switch in the "Manager" position, select the function "water quantity" from the ♦ menu. -
Page 19: Change Hot Water/Steam Flow Time
CHANGE HOT WATER/STEAM FLOW TIME This menu item enables you to vary the flow time to suit the size of cup and to program the ♦ output mode (manual control or measures). With the key switch in the "Manager" position, select the function "water quantity" from the ♦... -
Page 20: Change Coffee Quantity
CHANGE COFFEE QUANTITY This menu item enables you to either increase or decrease the quantity of ground coffee for ♦ each beverage by up to 1 gramme. With the key switch in the "Manager" position, select the function "coffee quantity" from the ♦... -
Page 21: Blocking The Buttons
BLOCKING THE BUTTONS The button block function enables you to block the machine without having to take it ♦ completely out of operation by activating the cleaning program. The boiler and flow-through heater remain in operation while the buttons are blocked. ♦... -
Page 22: Turbo, Self-Service And External Functions
TURBO, SELF-SERVICE AND EXTERNAL FUNCTIONS With the key switch in the "Manager" position, a number of functions are listed in menu II ♦ which can be switched on and off. TURBO FUNCTION: In the TURBO mode, the coffee for the next cup is ground immediately the preceding cup is ♦... -
Page 23: Self-Service Machines
SELF-SERVICE MACHINES Machines which only operate in the self-service mode are fitted with a "SELF key-pad" ♦ especially designed for the purpose. Espresso Café Créme Standard SELF key-pad On machines which only operate in the self-service mode: ♦ - only single cups can be ordered - the dispensing of beverages cannot be terminated - an order cannot be multiplied by repeatedly pressing the button - there is only one menu page of beverages (no switching to other pages) -
Page 24: Problems And Display Messages
PROBLEMS AND DISPLAY MESSAGES The operation of the Cafina c60 is continuously monitored. Should a problem arise, the ♦ control system attempts to remedy the situation itself with the aid of an "unjamming" routine. Disturbances are displayed either in plain language (e.g. "No water") or as a DP number. -
Page 25: Safety Instructions
Cafina AG cannot be held responsible for damage resulting from not carrying out ♦ maintenance, tampering with the machine or the installation of non-original parts. Cafina AG reserves the right to modify the design of the machine in the interest of technical ♦ progress at any time without prior notice. -
Page 26: Technical Data
TECHNICAL DATA c60 - 1 c60 - 1 c60 - Beta c60 - Beta c60 - 1 c60 - 12 c60 - Beta Quantities and data 230 V 230 V Spec. plus Capacity in cups of 60 ml / h Capacity in cups of 125 ml / h Capacity in cups of 250 ml / h Hot water in l / h...
