Summary of Contents for Akai APM100

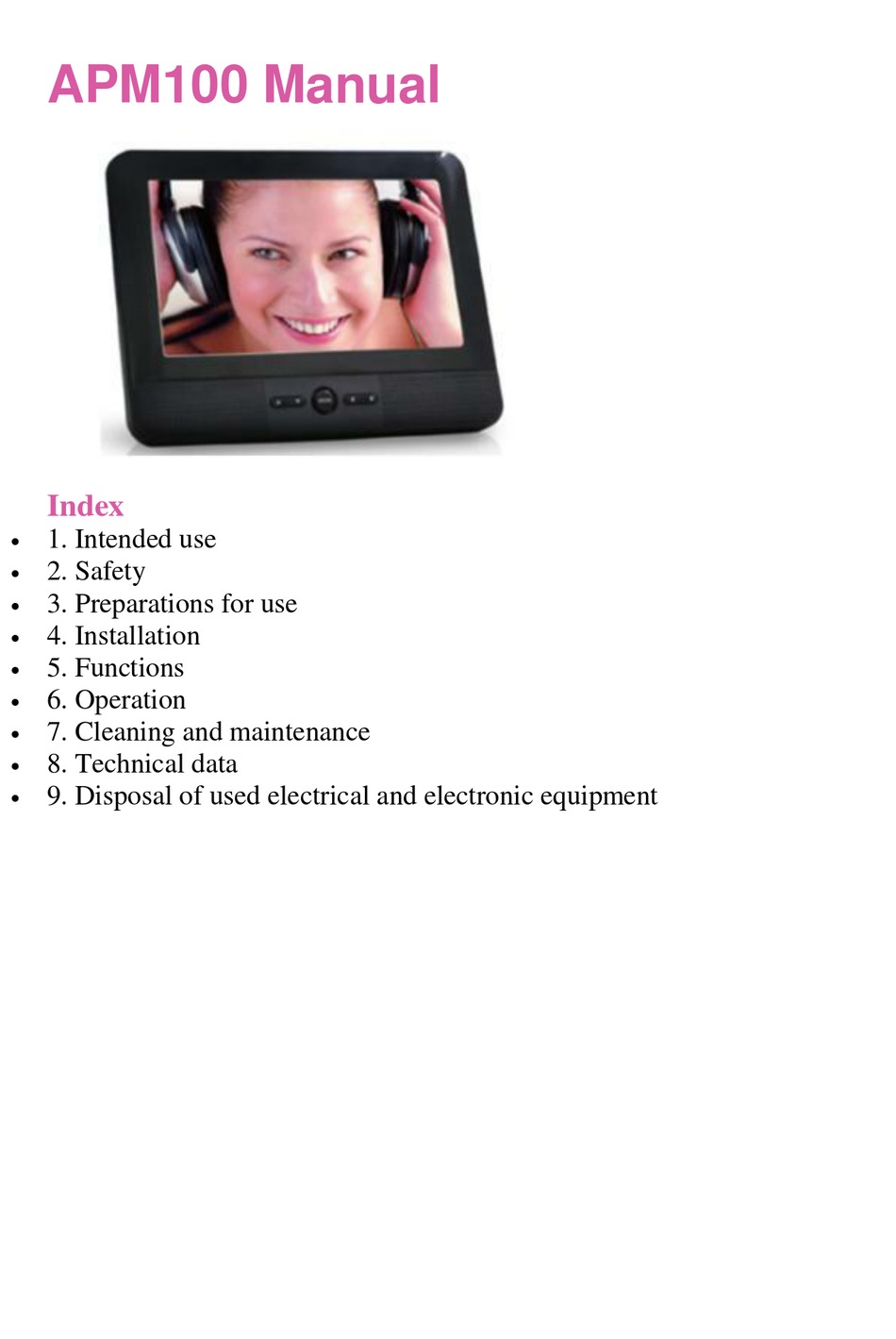

  • Page 1 APM100 Manual Index  1. Intended use  2. Safety  3. Preparations for use  4. Installation  5. Functions  6. Operation  7. Cleaning and maintenance  8. Technical data  9. Disposal of used electrical and electronic equipment...

  • Page 2: Intended Use

    Intended use The appliance works as portable media player. With this device it is possible to play music (MP3/WMA3), video (MPEG4 / Xvid), photo (JPEG) and E-book (only .txt) files. These files can be accessed either from external sources (including USB and SD card) or from the internal drive (1.6 GB) of the AMP100.

  • Page 3: Safety

    Safety Labels in this manual WARNING A warning means that injury or death is possible if the instructions are not obeyed. CAUTION A caution means that damage to the equipment is possible. A note gives additional information, e.g. for a procedure. General safety instructions CAUTION Do not spill any liquid on the appliance.

  • Page 4: Preparations For Use

    Preparations for use Unpacking  Unpack the appliance carefully. Check the package contents as described below. If any item is  missing, please contact your reseller. We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit.

  • Page 5: Package Contents

    Package contents The following items are included in the received package: 1 x APM100 1 x Remote control 1 x Button cell 1 x Quick start guide % 1% Headphone 1 x AC adapter 1 x 12V Car adapter NOTE: the button cell battery has already been inserted in your remote control If any item is missing, please contact your reseller.

  • Page 6: Installation

    Installation  Put the appliance on a horizontal flat surface.  Connect the appliance to the mains. See for instructions section 3.1 Connect the random equipment to the appliance. Read the paragraph "Connecting external devices". CAUTION Do not put the appliance near a heat source. Do not expose the appliance to direct sunlight.

  • Page 7: Functions

    Connecting external devices HDMI (1), USB (2) and SD Card (3) inputs You can connect the% 1% to a TV to display the pictures or video files on the TV screen. Use a standard HDMI cable for this. For extended instructions, read the paragraph "Operation" further on in this manual.
  • Page 8 Functions Remote control 1. MUTE button 2. AUDIO button 3. HOME button 4. PHOTO button 5. VOLUME - button 6. VOLUME + button 7. DISPLAYOUT button 8. LEFT button 9. SETUP button 10. ROTATE button 11. PLAY/ PAUSE button 12. STOP button 13.
  • Page 9 20. UP button 21. RIGHT button 22. OK button 23. RETURN button 24. DOWN button 25. ZOOM + button 26. ZOOM - button 27. FAST FORWARD button 28. FAST BACKWARD button APM100 Portable Mediaplayer Stereo sound: 2 x 1 Watt...

  • Page 10: Operation

    Operation Turning the device on and off. Set the switch in the ON position to turn the equipment on. Set the switch in the OFF position to switch off the device.
  • Page 11 HOME-page After you have turned on your AMP100, the HOME page will be loaded automatically. Press the OK button . Select CARD, external USB stick or (internal) hard disc. DESKTOP will be loaded automatically.
  • Page 12 Explorer  Select EXPLORER (1) to browse through all types of files on the local disk or other connected sources You can play any type of file. Select the preferred source using the UP (20) and DOWN (24) keys  ...
  • Page 13 Movie Select MOVIE (2) to browse your video files If the selected video file is playing, you can choose from several options. Use the keys SETUP (9) / OK (22) for this. Use the LEFT (8) and RIGHT (21) keys to navigate within the menu. The menu will automatically disappear, but if you wish to remove it sooner, press RETURN (23) ...
  • Page 14 You can now select from the following options:  Sort: to sort the files alphabetically (A-Z, Z-A)  Copy/Paste: copies the selected files and pastes them in a desired location  Delete: to delete selected files  Cancel: to exit the menu...
  • Page 15 Music Select MUSIC (3) to browse your music files If the selected music file is playing, you can choose from several options. Use the keys SETUP (9) / OK (22) for this. Use the LEFT (8) and RIGHT (21) keys to navigate within the menu. The menu will automatically disappear, but if you wish to remove it sooner, press RETURN (23) You can now select from the following options:...
  • Page 16  Sort: to sort the files alphabetically (A-Z, Z-A) Copy/Paste: copies the selected files and pastes them in a desired  location  Delete: to delete selected files Cancel: to exit the menu ...
  • Page 17 Photos Select PHOTO (4) to browse your photos and images If your images are displayed, you can choose from several options. Use the keys SETUP (9) / OK (22) for this. Use the LEFT (8) and RIGHT (21) keys to navigate within the menu. The menu will automatically disappear, but if you wish to remove it sooner, press RETURN (23) ...
  • Page 18 You can now select from the following options:  Sort: to sort the files alphabetically (A-Z, Z-A)  Copy/Paste: copies the selected files and pastes them in a desired location  Delete: to delete selected files  Cancel: to exit the menu...
  • Page 19 E-book Select E-BOOK (5) to browse your E-BOOK files If the selected E-BOOK is displayed, you can choose from several options. Use the keys SETUP (9) / OK (22) for this. Use the LEFT (8) and RIGHT (21) keys to navigate within the menu. The menu will automatically disappear, but if you wish to remove it sooner, press RETURN (23) ...
  • Page 20 You can now select from the following options:  Sort: to sort the files alphabetically (A-Z, Z-A)  Copy/Paste: copies the selected files and pastes them in a desired location  Delete: to delete selected files  Cancel: to exit the menu...
  • Page 21 Music(s) Select MUSIC (S) (7) to directly call the music file that is playing...
  • Page 22 Copy (general) Copying a file from one source to another source NOTE: Copying must be done from within the Explorer, as this may result in error messages when carried out from other sources.  Select the preferred file Press the LEFT button (8). ...
  • Page 23 The USB stick you use must be formatted as FAT32 file system. The device does play files from an NTFS formatted USB stick, but the APM100 cannot copy files to it. You must transfer the files to the USB stick via the computer...
  • Page 24 Output You can connect the% 1% to a TV to display the pictures or video files on the TV screen.  Connect your APM100 to your TV Use a standard HDMI cable for this.  Select "settings" Use the RIGHT (21) key for this.
  • Page 25 NOTE: If you select "LCD", the image will be displayed on the AMP100. If you select "aspect ratio" the image will be displayed on TV.  Consult the manual of your TV for the correct aspect ratio.  Press the RETURN (23) key to exit the menu ...
  • Page 26 Key tone  Select "settings" Use the RIGHT (21) key for this.  Press OK (22) to confirm.  Select 'key tone'. Use the UP (20) key or the DOWN (24) key.  Select 'on' or 'off'. Use the UP (20) key or the DOWN (24) key. ...
  • Page 27 Restore default settings Select "settings"  Use the RIGHT (21) key for this. Press OK (22) to confirm.   Select 'default' Use the UP (20) key or the DOWN (24) key.  Press OK (22) to confirm.  Select 'yes' or 'no' Use the LEFT (8) key or the RIGHT (21) key.

  • Page 28: Cleaning And Maintenance

    Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution.

  • Page 29: Technical Data

    USB 2.0 slot Slot-in for SD / MMC card Digital output: HDMI 2G internal memory Earphone jack An external hard disc is not compatible with the APM100, you can only use USB memory sticks Accessories Remote control % 1% Headphone...

  • Page 30: Disposal Of Used Electrical And Electronic Equipment

    For more information and warranty conditions, please visit: www.akai.eu Do not dispose of batteries as household waste but take them to a...
