SubliJetR QuickConnect Setup Manual

After installation of the QuickConnect bulk ink system with SubliJet IQ sublimation inks, you will
need to properly install the Epson printer driver, the Sawgrass PowerDriver and configure your
design software. Information on locating the step-by-step instructions is provided at the end of this
QuickConnect Setup Guide. Do not install the Epson printer driver at this time.

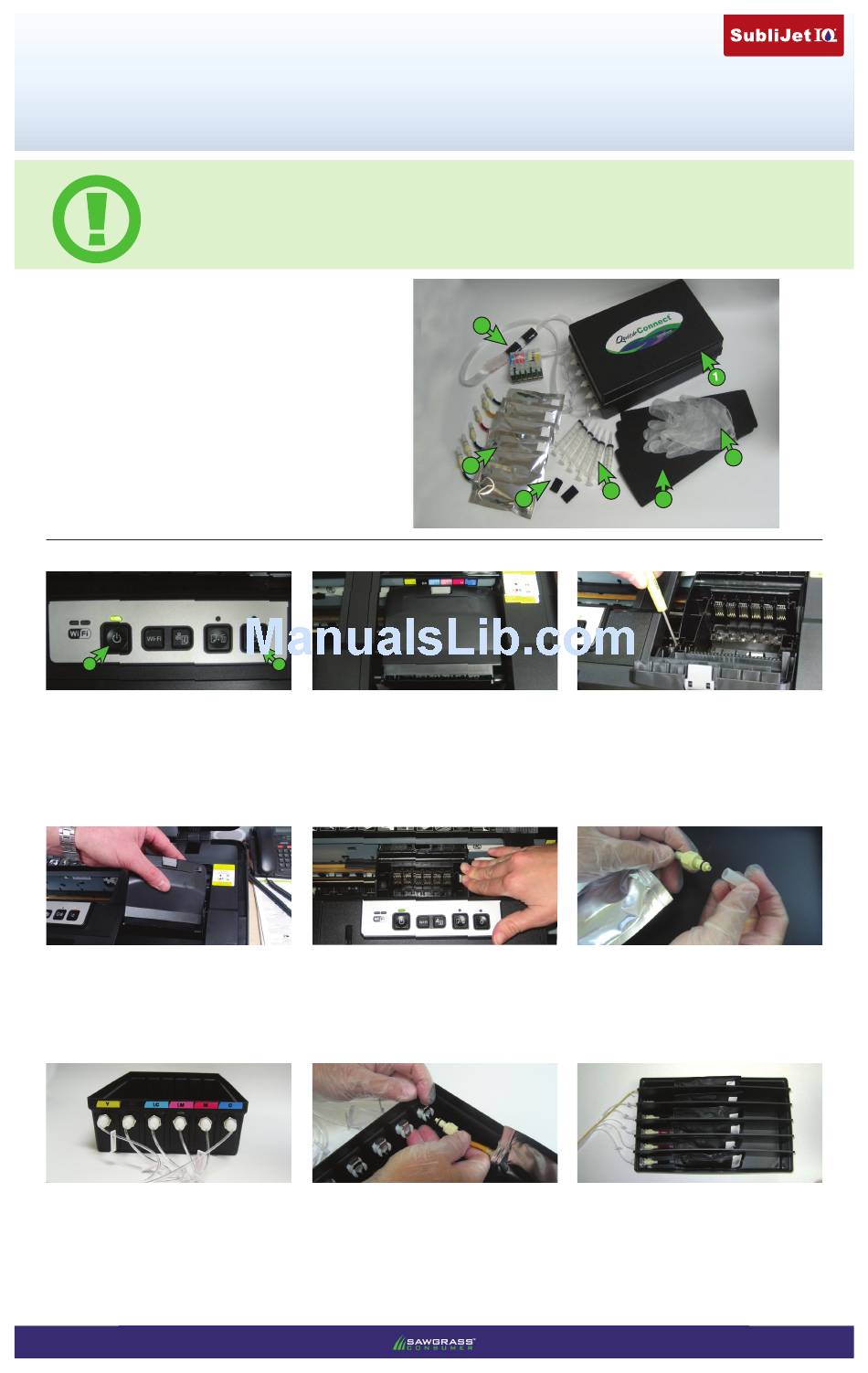

Check to make sure you have all the
components shown in the picture:
1) Ink box with bulk cartridge system
2) Rubber gloves
3) Plastic dividers (5)
4) Syringes (6)
5) Tube support clamp (2 parts)
6) Individual ink bags (6)
7) Tube support arm
A
1) Lift the lid on the printer and press the power
button. Once the printer has completed initializing,
press the ink button.
4) Then, in a twisting motion, pry the cartridge cover
from the cartridge bay. It is normal for the cartridge
cover hinges to break from the force required.
7) Note the position for each ink bag indicated by the
color label located on the outside of the ink box. With
the box situated with the connectors closest to you,
the bags should be installed in this order from left
to right: Yellow, Black, Light Cyan, Light Magenta,
Magenta and Cyan.
Epson Artisan 1430
QuickConnect Setup Guide
B
2) The cartridge bay will move into the "ink change"
position so that the cartridge cover can be removed.
The printer will function properly without the
cartridge cover, and it needs to be removed so that
the bulk ink cartridges can be installed and to provide
room for the tubing.
5) Once the cartridge lid is removed, manually slide
the cartridge bay to the left.
8) To attach each ink bag to the ink box, depress the
metal tab on the connector inside of the box. Then
insert the plastic valve of each ink bag. The metal tab
will spring up and lock when the connection has been
secured.
7
6
4
5
3) Remove the cartridge cover by using a flat head
screwdriver to unclip one side.
6) Place the ink box on a flat surface and after putting
on the rubber gloves, remove the protective end cap
from each of the ink bags. You may discard the caps
after removal.
9) After all of the bags have been connected in the
same manner, insert the plastic dividers into the ink
box, dividing it into separate sections, one for each
ink bag.
2
3
PAGE 1 of 2 >>
v20121114
