Summary of Contents for Golden Motor PW-8F20

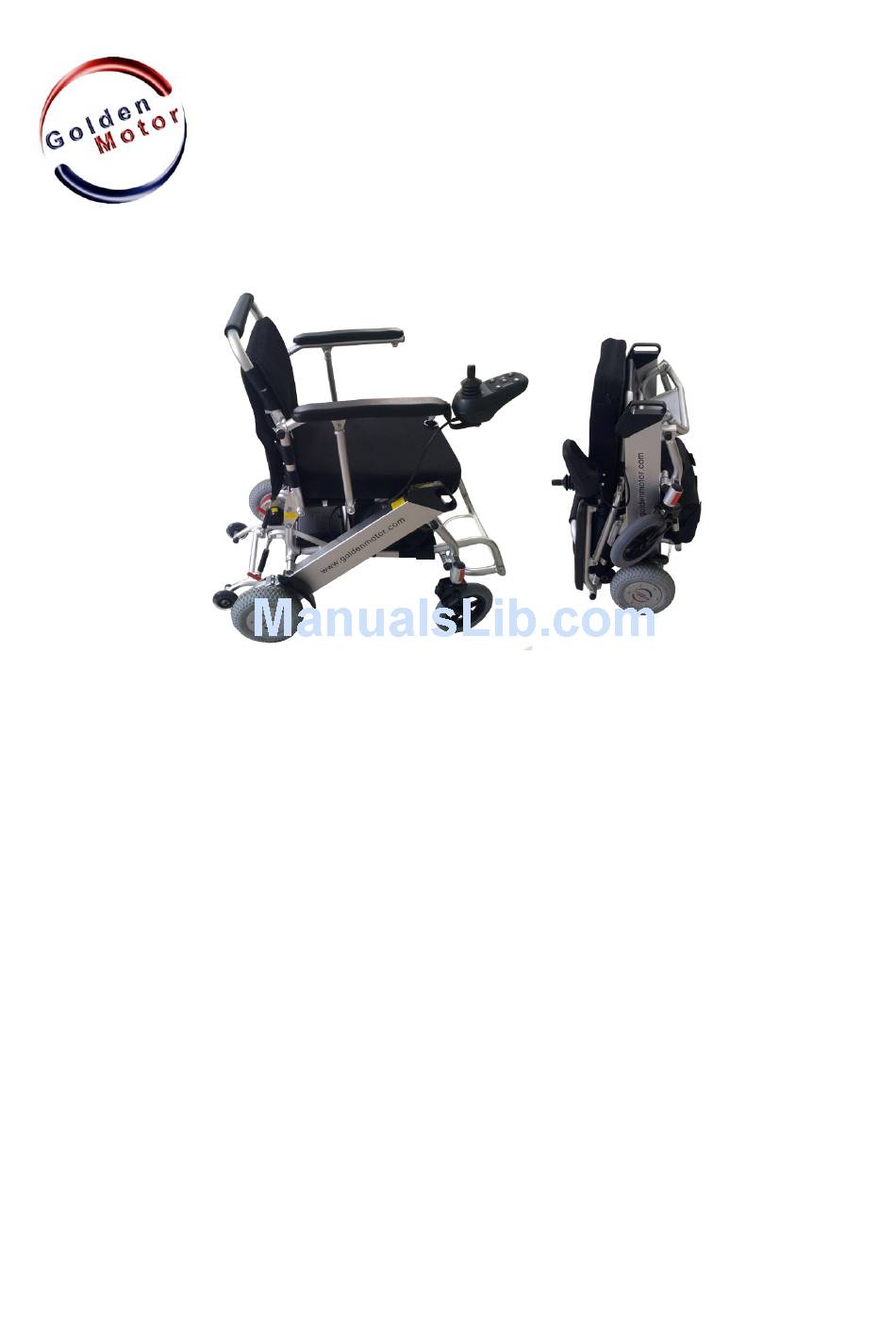

- Page 1 Brushless Electric Wheelchair Brushless Electric Wheelchair PW-8F20 User's Guide Version1.2 Golden Motor Technology Co.,Ltd March 27 ,2013...
- Page 2 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Control of Documents TIME ACTION EDITOR EXAMINE AND REVISE VERSION Draft Carmen Gao 2013.3.27...
- Page 3 Brushless Electric Wheelchair (PW-8F20) User's Guide PRECAUTIONS Thank you for buying product from Golden Motor technology co., ltd. We sincerely hope that it could bring you a convenient life and spiritual enjoyment. Please read the instructions before using the chair in order to operate and maintain properly..Golden Motor assumes no responsibility for personal injury or...
-
Page 4: Table Of Contents
1 Product Structure 2 Safety note 3 Wheelchair Open&Folding Method 4 Charging Instructions 5 Driving&Operation Method 6 Electric&Hand Push Range 7 Transport&Storage 8 Maintenance and Test 9 Trouble Shooting 10 Technical Paramters 11 PW-8F20 Power Chair Wiring Diagram 12 After-sales Service... -
Page 5: Product Structure
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 1 Product Structure Backrest cover Backrest side Armrest Controller Joystick Seat Cushion Lithium battery Foot rest Joystick fixed knob Suspension front caster Control host Anti-tip wheel Gas Spring Fender Driving rear wheel All rights reserved.Golden Motor Technology Co.,Ltd 2013... -
Page 6: Safety Note
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 2 Safety note The user must be conscious and have judge and control ability. The user must read the manual before using the product. Warning The user must understand the product features and repeated practice on open, flat and safe ground to manage the driving skills before normal use. - Page 7 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Across Stairs Uphill Driving Enter & Exit Elevator ● ● ● The user should pay attention to The body should be tilt forward to Slowly driving cross the stair. The elevator door open and close interval keep the center of gravity forward step should not higher than 3cm.
- Page 8 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Warning Driving on too steep slope may lead to a rollover accident and endangering personal safety. Nursing person should be accompanied while the user is driving on slope. Nursing Warning ...
- Page 9 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Warning If the electromagnetic brake is not close, driving downhill will lead to slip accident and endangering personal safety. The electromagnetic brake must be closed. Warning Pay attention to traffic light switching time when crossing the road. Otherwise, it may lead to endangering personal safety.
- Page 10 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide The user is prohibited to try to repair the product by yourself, it may cause the product permanent damage and even endanger personal safety The product should be repaired by a professional repair shop or maintenance service personnel.
- Page 11 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Battery is prohibited to dismantling or violent impact, otherwise, it may cause battery burn and even fire. Battery is prohibited to use in heat or severe cold environment, otherwise, it will reduce battery performance and even damage.
-
Page 12: Wheelchair Open&Folding Method
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 3 Wheelchair Open&Folding Method Picture2 Picture1 PIC1: Put the chair on ground, use foot to press the footrest, meanwhile, use hands to pull the armrest. PIC2: Pulling up the armrest until hearing the click sound which means the it fully... -
Page 13: Charging Instructions
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Warning Assure the locking device is in right position after chair opened. Otherwise, the chair will fold when the user sits on chair. It may lead to a accident and endangering personal safety, even death. - Page 14 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Warning Prohibit turning on the controller power or using chair during charging period. Ensure the charger and battery is cooling during charging period. Otherwise, it may cause product damage or even fire.
-
Page 15: Driving&Operation Method
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Warning Solar charging plate is very fragile. Avoiding tread, press and bend. Prohibit turning on the controller power or using chair during charging period. Charging time is generally 4 hours. Pull out the plug after charging completed. - Page 16 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Joystick Function Keys Speaker Joystick: control chair direction and speed. Power on Power on: press to turn on the power Accelerate Power off: press to turn off the power Power display Speed display ...
- Page 17 Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Master Wheelchair Driving Operation Method After the user seat in the chair, turn on the power and push joystick. Pushing joystick forward to go forward, pulling joystick back to go back, pushing joystick left to turn left, pushing joystick right to turn right.
-
Page 18: Electric&Hand Push Range
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 6 Electric&Hand Push Range Press the clutch handle to keep the electromagnetic brake at separation position, nurse can push the chair. Lift the clutch handle to keep the electromagnetic brake at engaged state, the chair could be driven by electricity, could not be pushed manually. -
Page 19: Maintenance And Test
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide Main Points Avoiding the chair placed in heat, cold or direct sunlight environments, otherwise, the rubber parts will be easy to age and shorten the service life. The battery is easy to burn in high temperature environment and it may cause fire accident. -
Page 20: Trouble Shooting
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 9 Trouble Shooting Problem Reason Solution Controller host power is not connected. Controller host power is not connected. Power can not Controller host and joystick are not Four core plug contacts with joystick. -
Page 21: Technical Paramters
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 10 Technical Paramters Electrical Parameter Main Size & Structural Parameter Motor: Brushless DCmotor Dimension：Length 800mm Width 570mm Rated Voltage ：DC24V Rated Power：180WX2 Height 840mm EP-2410F Battery Model： Wheelbase：450mm Tread：550mm Charger power：AC220 V,50Hz Rated Capacity ：10Ah Ground clearance：100mm... -
Page 22: Pw-8F20 Power Chair Wiring Diagram
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 11 PW-8F20 Power Chair Wiring Diagram All rights reserved.Golden Motor Technology Co.,Ltd 2013... -
Page 23: After-Sales Service
Originality、Innovation、Creation Brushless Electric Wheelchair (PW-8F20) User's Guide 12 After-sales Service Warranty coverage Warranty period Remark Frame 3 years non-deliberate damage Motor 3 years non-deliberate damage Lithium battery 2 years non-deliberate damage Controller host 1 year non-deliberate damage Joystick 1 year...
