Summary of Contents for movie-intercom DMX-TX

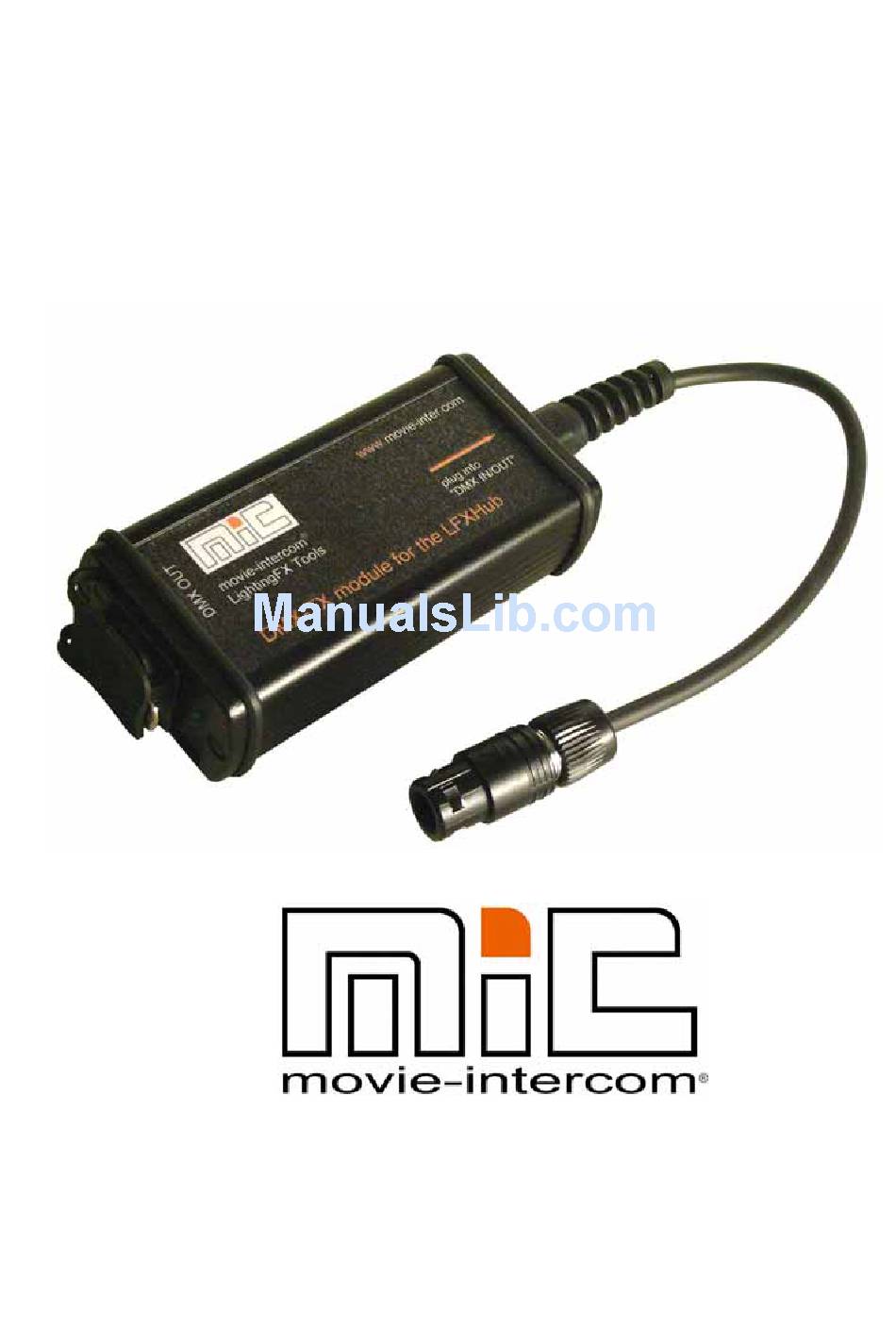

- Page 1 DMX-TX module ® for the LFXHub LightingFX Tools for professional filmmakers www.movie-inter.com...
- Page 2 © movie-intercom® 2006 edition 2006-0410V1e This user manual is valid for the DMX-TX module for the LFXHub download the latest user manual: http://www.movie-inter.com This user manual is also available in german language http://www.movie-inter.com/de/support/downloads/index.html movie-intercom® und LFXHub® are registered trademarks of Olaf Michalke, movie-intercom LightingFX Tools.
-
Page 3: Table Of Contents
DMX-TX module for the LFXHub page 3 of 16 chapter table of content page safety first please read me first quick start function overview conditions for operation with the LFXHub included in delivery indicators and interfaces connect DMX-TX module at the LFXHub... -
Page 4: Safety First Please Read Me First
This user manual is always available for download from the homepage of movie-intercom > http://www.movie-inter.com/en/support/downloads/index.html Please protect the DMX-TX module against humidity and rain before and during operation. This optional available DMX transmitter "DMX-TX module" is exclu- sively engineered to be operated with the LFXHub. -
Page 5: Quick Start
DMX-TX module for the LFXHub page 5 of 16 quick start connect the DMX-TX module at the LFXHub´s socket "DMX IN/OUT" LFXHub read all DMX IDs from the LFXHub DMX IDs at the receiver turn rotary switch "EFFEKT"... -
Page 6: Function Overview
DMX IDs via the display of the LFXHub Requirements of the LFXHub for operation of the DMX-TX module The operation of the DMX-TX module requires the latest DMX software in the LFXHub. Because of the software based engineering of the LFXHub, the required software can be installed later either. -
Page 7: Indicators And Interfaces
DMX-TX module for the LFXHub page 7 of 16 indicators and interfaces output for DMX-512 receiver connector 5-pin XLR female plug into "DMX IN/OUT" of the LFXHub behind protector status indicator DMX is flashing during transmission of a DMX signal The serial number is located on the bottom of the module. -
Page 8: Connect Dmx-Tx Module At The Lfxhub
8 of 16 connect DMX-TX module at the LFXHub The plug of the DMX-TX module is self-locking. To lock or unlock the plug please exclusively move the centre part of the plug (as marked below.) The external DMX module is powered by the LFXHub. -
Page 9: Menu Structure For Dmx At The Lfxhub
DMX-TX module for the LFXHub page 9 of 16 menu structure This menu is visible when the DMX-TX module is connected to "DMX IN/OUT" and the rotary switch "EFFECT" is in position "DMX IN/OUT". connection status LED LCD menu level 1... -
Page 10: Setting Up Dmx Channels
" alert during change of an DMX-ID Resetting DMX-IDs to factory settings The DMX-TX module stores all set up DMX-addresses without any time limit. Please consider: The DMX-IDs are stored in the external module, not in the LFXHub. We do recommend resetting to factory settings if the LFXHub is returned to the rental house. -
Page 11: Upgrading The Software Of The Lfxhub
DMX-TX module for the LFXHub page 11 of 16 Upgrading the software of the LFXHub The functionality of the LFXHub is based upon software. Additional software can be installed to the LFXHub to extend the functionality e.g.. -
Page 12: Trouble Shooting / Maintenance / Disposal
If you have a problem which can not be solved by this manual, please disconnect the DMX-TX mod- ule from the LFXHub / DMX line and contact movie-intercom. cleaning the unit ONLY clean the unit when disconnected completely from all cables! Use a clean slightly wet cloth. -
Page 13: Specifications
DMX-TX module for the LFXHub page 13 of 16 Specifications general operation voltage 5VDC (powered by the LFXHub) temperature range -20°C ...50°C dimensions (l x b x d) 125 x 61 x 26 mm (without cable) -
Page 14: Address / Support
DMX-TX module for the LFXHub page 14 of 16 Address / Support Do not hesitate to contat movie-intercom. We are looking forward to answer your questions. postal address movie-intercom Wegenerstr. 4 10713 Berlin Germany... -
Page 15: Index
DMX-TX module for the LFXHub page 15 of 16 Index channel set-up -page 10 connection to LFXHub -page 6 contact to movie-intercom -page 14 dimmer pack -page 5, 10 displays -page 7 disposal -page 12... - Page 16 www.lfxhub.com...
