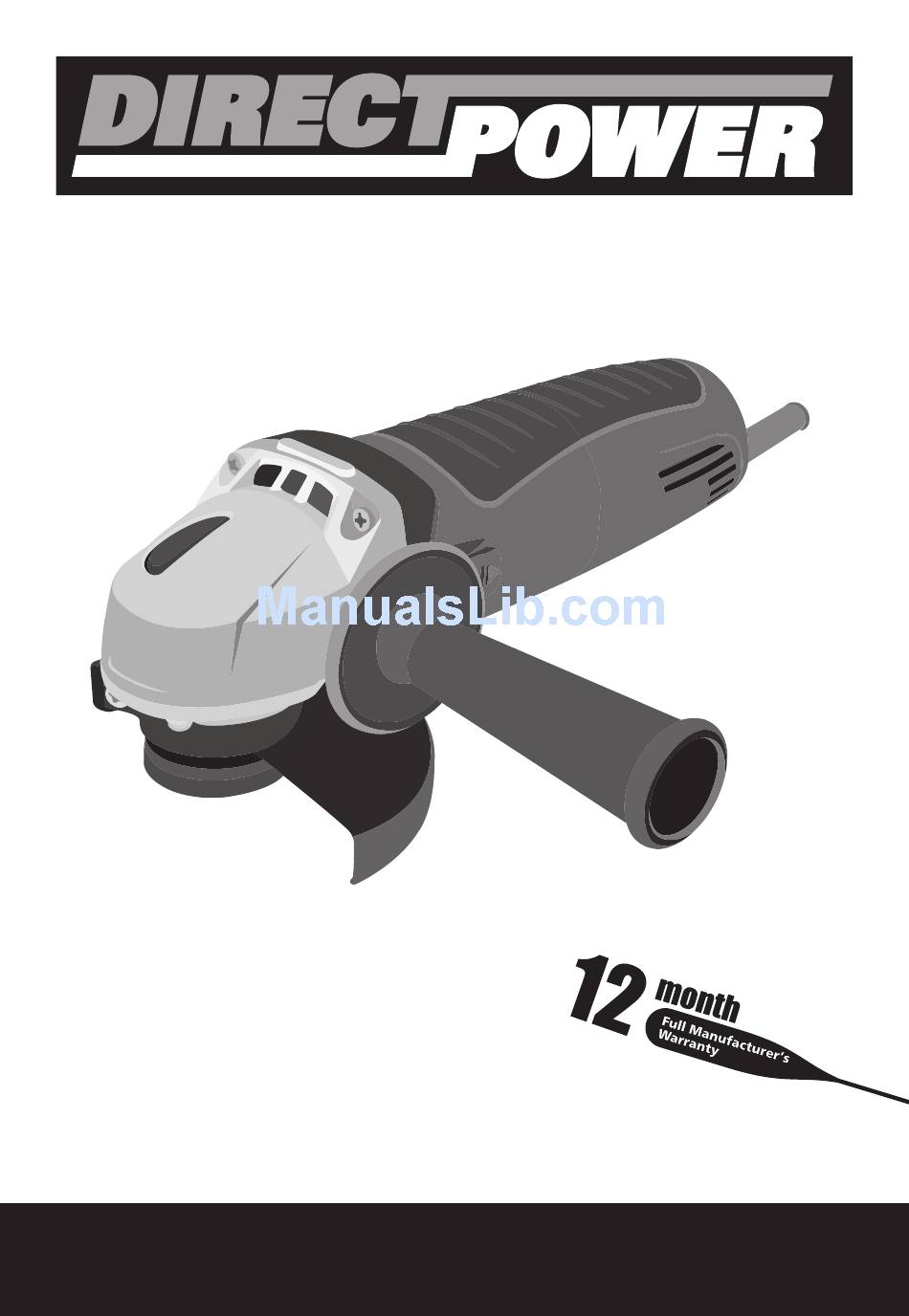

SAFETY AND OPERATING MANUAL
115MM ANGLE GRINDER
DPB095GRD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPB095GRD and is the answer not in the manual?

Questions and answers

Summary of Contents for Direct power DPB095GRD

  • Page 1 SAFETY AND OPERATING MANUAL 115MM ANGLE GRINDER DPB095GRD...
  • Page 3 This guarantee does not affect your statutory rights. This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. 115MM ANGLE GRINDER DPB095GRD...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 WARNING! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). 115MM ANGLE GRINDER DPB095GRD...
  • Page 6 You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. You should: - Work in a well-ventilated area. - Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles.
  • Page 7 The use of other tools will reduce the users’ total working period on this tool. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) 115MM ANGLE GRINDER DPB095GRD...
  • Page 8 If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10C or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.

  • Page 9: Component List

    COMPONENT LIST 1. On/Off switch 2. Power cord 3. Spindle locking button 4. Wheel guard 5. Auxiliary handle 6. Spanner 7. Inner flange 8. Outer flange 9. Allen key 115MM ANGLE GRINDER DPB095GRD...

  • Page 10: Technical Data

    TECHNICAL DATA Voltage 230-240V~50Hz Input power 900W No load speed 11,000min Maximum disc diameter 115mm Spindle size Disc bore 22.2mm Protection class Machine weight 1.8kg TECHNICAL DATA Sound pressure level: 90.3 dB(A) Sound power level: 101.3 dB(A) ACCESSORIES Auxiliary handle Spanner...
  • Page 11 To move the guard you must release the guard lock bolt using the Allen key. The guard can then be rotated to provide maximum protection against sparks and debris. Finally, tighten the guard bolt. Fig B 115MM ANGLE GRINDER DPB095GRD...
  • Page 12 3. FITTING THE DISCS (See Fig C1&C2&C3) Put the inner flange onto the tool spindle. Ensure it is located on the two flats of spindle (see C1). Place the disc on the tool spindle and inner flange. Ensure it is correctly located. Fit the threaded outer flange making sure it is facing in the correct direction for the type of disc fitted.
  • Page 13 Be prepared for a stream of sparks when the disc touches the metal. For best tool control, material removal and minimum overloading, please keep the disc vertical to the work piece (See Fig F). Never 115MM ANGLE GRINDER DPB095GRD...

  • Page 14: Working Hints For Your Angle Grinder

    change the cutting angle - this will stall the unit and damage the cutting disc. Exert light pressure on abrasive disc for efficient operation. Pushing too hard will cause a drop in speed and may result in motor overload and damage.

  • Page 15: Maintenance

    Dispose of old wheels sensibly. 4. If working on aluminum or a similar soft alloy, the wheel will soon become clogged and will not grind effectively. 115MM ANGLE GRINDER DPB095GRD...

  • Page 16: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. For further information visit www.recycle-more.co.uk...

  • Page 17: Plug Replacement

    L. A 13AMP (BS1363 or BS1363/A) plug must be used and a 13 AMP fuse must be fitted. 13 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP 115MM ANGLE GRINDER DPB095GRD...

  • Page 18: Declaration Of Conformity

    Declaration of Conformity We, Importer Direct Power (UK) Ltd BA22 8RT Declare that the product 115mm ANGLE GRINDER DPB095GRD Complies with the essential health and safety requirements of the following directive: Machinery Directive 98/37/EC Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC...
