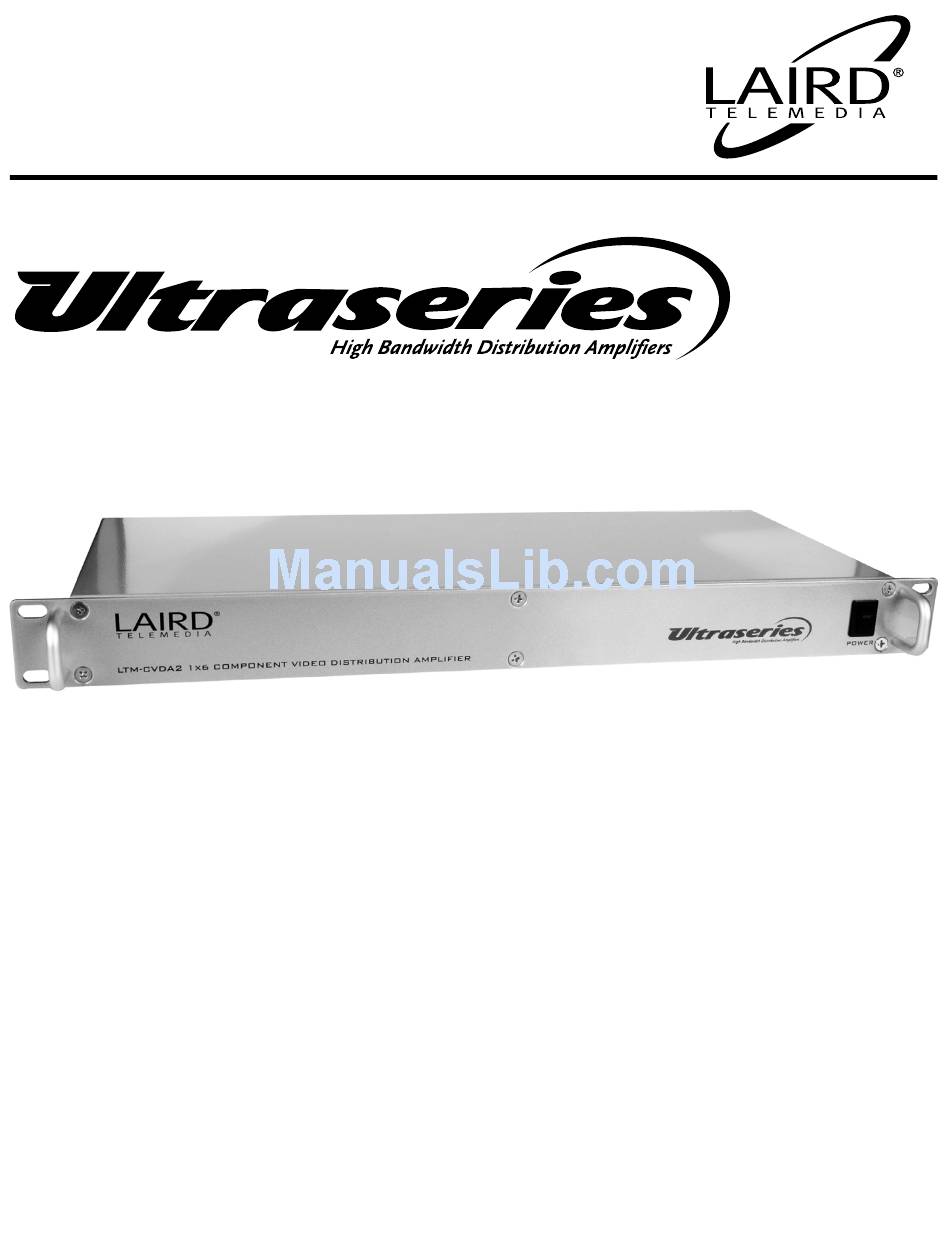

- Page 1 Model LTM-CVDA2 User Manual LTM-CVDA2 1x6 Buffered Component Video Distribution Amplifier © 2006 Laird Telemedia.
- Page 3 1x6 Buffered Component Video Distribution Amplifier The Laird LTM-CVDA2 is a broadcast product for video component signal distribution. Designed using the latest in monolithic high bandwidth integrated circuitry, the LTM-CVDA2 provides unmatched performance in a single rack enclosure. Broadcasters and high-end production facilities need to distribute Component video signals.
- Page 4 5. The LTM-CVDA2 requires no adjustments or calibrations. The unit is shipped unity calibrated. ULTIFORMAT The LTM-CVDA2 is designed to work with any standard analog video signal. Should the requirement be such that there is a need for signals other than component signals, simply connect those signals and follow the correct input-output proce- dures.
-
Page 5: Safety Precautions
LTM-CVDA2 1x6 Buffered Component Video Distribution Amplifier Safety Precautions 1. To prevent fire or shock hazard, do not expose this equipment to the environment of Humidity and/or dust. Do not use this equipment in an unprotected outdoor installation or any area classified as a wet area. - Page 6 2000 Sterling Road • Box 720 Mount Marion, NY 12456 800-898-0759 • 845-339-9555 Fax: 845-339-0231 www.lairdtelemedia.com...
