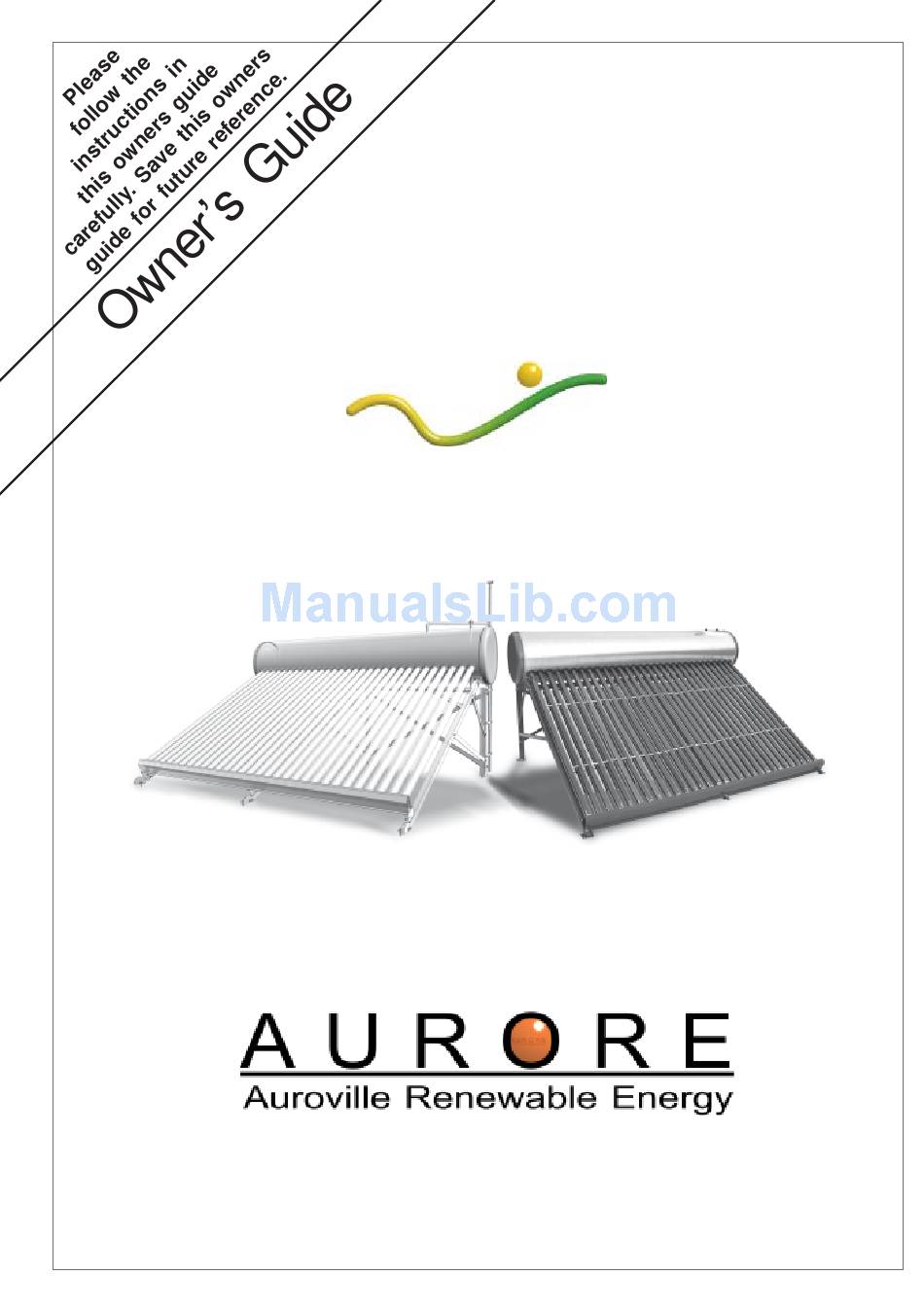

Page 1 Solar Water Heater From...
Page 2 Dear Friends, Greetings from Aurore. Congratulations on acquiring an ‘Aura’ solar water heater. You have joined a growing family of conscious change-makers who have started using renewable energy for their daily use. You are saving precious electricity and contributing towards the reduction of harmful carbon dioxide emitted in the production of electricity.
Page 3: Table Of Contents
Co nt en t s Chapter Page 1. Solar Water Heater Parts 2. Safety Guide 3. Working Principle 4. Performance 5. Installation Tips 6. Optimal Usage 7. After Care Do’s/Don’ts 8. Trouble Shooting 9. Technical Specifications 10. Accessories 11. Warranty...
Page 4: Solar Water Heater Parts
Glass Tube Water Heater ( Evacuated Tube Collector “ETC” ) Vent Outer Cold tank water inlet Inner tank Drain Glass tubes Vent Tube support bracket Support structure For grouting Horizontal stay channel Electrical heater Vent support Right hand, Cradle Right hand, Upper tie channel Right hand, Diagonal stay channel Right hand, Main load channel...
Page 5: Safety Guide
Safety Guide NOTE : Before installing the Solar Water Heater Place the evacuated glass tube collector out of reach of children and infants. If there is a risk of hailstorms in your locality, additional protection should be provided to the Evacuated Glass tubes by means of a mesh.
Page 6 The back-up electrical element should be installed by a trained electrician who should provide a proper earth connection and protect the cable connections from water and moisture. Do not use a pipe wrench for installation of pipe lines. Kitec fitting NOTE : Before using the Solar Water Heater Test water before bathing, Hot water above 50 o C can cause severe burns...
Page 7 Do not drop hard objects on the glass tubes. Blockage or damage to the vent pipe can create severe damage to the solar water heater. Should this occur, call the authorized service provider immediately. In case of emergency, like breakage of tubes or leakage in tank, close the cold water inlet and hot water outlet valves Close...
Page 8: Working Principle
Working Principle of a Solar Water heater A solar water heating system consists of a vacuum glass tube collector, an insulated storage tank and connecting stand parts (page 4). The evacuated glass tubes are filled with water and exposed to sun, thus heating up the water in the glass tubes. As the specific gravity of cold water is heavier than hot water, the hot water in the glass tubes starts rising in the insulated water tank, and the cold water in the insulated water tank sinks into the glass tubes.
Page 9: Performance
Thermosiphon Hot water Cold water Main tank Tube Per formance The output of a solar water heater system will depend on the amount of solar radiation available. On a good sunny day with 6 to 7 hours of sunlight, the glass tubes will collect enough solar energy to heat water up to 60 C.
Page 10: Installation Tips
Installation Tips It is essential that a certified/trained plumber and electrical technician carry out this installation. 1. The location of the solar water heater should be south facing on an even surface with plenty of sunlight and free of shadows between at least 9 am and 4 pm.(Fig.4). South facing Grouting 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2...
Page 11 Vent Pipeline Installation with Vent grouting Vent - - - - - - - - - - - - - - - - - - - Overhead tank < 2.75 mts Main tank Inlet/Drain Valve Shower outlet Mixing valve Hot water Cold water Grouted Vent support Earthing...
Page 12 The recommended number of usage points are: 100 & 125 Litres = 1 - 2 usage points 150 & 200 Litres = 3 - 4 usage points 250 & 300 Litres = 5 - 6 usage points In case your solar water heater runs out of water due to non usage it is necessary to ensure the first filling of cold water is done in the early morning hours when the temperature within the tubes is low to avoid damage to the glass tubes.
Page 13: Optimal Usage
Optimal Usage Tips / Maintenance There our some recommendations and tips which if followed can go a long way to improve the over all efficiency of the solar water heater. Plan the consumption of hot water in quick intervals at one time (either in the morning or evening) to minimize heat loss in the pipeline.
Page 14 7. Regularly inspect the solar water heater tank to make sure it’s not damaged and that no rainwater runs into the tank insulation. Also check for any rusting in the plumbing lines. Do necessary repairs using the authorized service provider. 8.
Page 15: After Care Do's/Don'ts
After Care ( Do’s & Don’ts ) ✔ This non- ✘ ✘ ✘ ✘ ✘ pressurized solar water - - - - - - - - - - heater and it should not be > 2.75 mts connected directly to a pressure pump or more <...
Page 16 5. The water temperature can be very high in the summer months and steam can be observed coming out of the vent pipe. If the solar water heater is not in use in the summer or for a long period of time, it is advisable to cover the glass tubes with a canvas cloth or a mat.
Page 17 ✘ ✘ ✘ ✘ ✘ ✔ 9. Prevent any shade falling on the glass tubes: Regularly trim back the branches of trees in the vicinity of the glass tubes to allow as much as possible sunlight to fall on them. ✘...
Page 18: Trouble Shooting
Trouble shooting If after using this trouble-shooting guide, you still cannot solve the problem, please contact Authorized Service provider. Problem Cause Remedy a) Clean the pipes & descale Water is not a) Cold water inlet pipe from sediment. coming from overhead tank or hot water outlet pipe from the solar water the tap.
Page 19 Problem Cause Remedy Hot water flow Air vents of overhead tank Provide suitable air vent for both irregular. and solar water heater is not the tanks, clean the vent pipe and put provided or blocked. it back properly. b) Air lock. b) Remove hot water outlet pipe from valve to clear air or drain and refill water from the solar water heater.
Page 20 Problem Cause Remedy Water is boiling a) System not in use for a long a) If the system is not being used, and steam is time. cover the glass tubes with a shade or being released install a steam trap on the air vent. from vent.
Page 21: Technical Specifications
Technical Specifications...
Page 22: Accessories
Model Width (cms) Aurore - 100 Aurore - 125 Aurore - 200 Aurore - 250 Aurore - 300 Accessories Makeup Tank: The Domestic Solar water heater is designed to be used with a maximum pressure of 2.75 meters of water. If it is more than 2.75 meters of water column or if a pressure pump is being used then a small insulated steel tank called “Make up tank”...
Page 23: Warranty
WAR RANTY CAR D Upon installation of the solar water heater, the dealer responsible for the sale will fill out the warranty card and the customer will complete a record of it and retain it for future servicing. This limited warranty covers the glass tubes, hot water tank and tank support frame for tube-breakage, leakage or any other malfunction caused by defects in the materials and/or workmanship.
Page 24 Product Model No………..........Product Serial No………..........Name of Purchaser: ............................Address: ....................................................................Phone No:..............Email ............... Date of Purchase ............Dealers Name: ..............................Dealer’s Stamp / Date:...
Page 26 Solar Water heaters Represented by : CSR Office, Auroshilpam, Auroville 605101, Tamil Nadu. Phone: 0413-2622749 / 168 / 277 Fax: 0413-2622057 email: aurore@auroville.org.in http://www.auroville.com/aurore...
