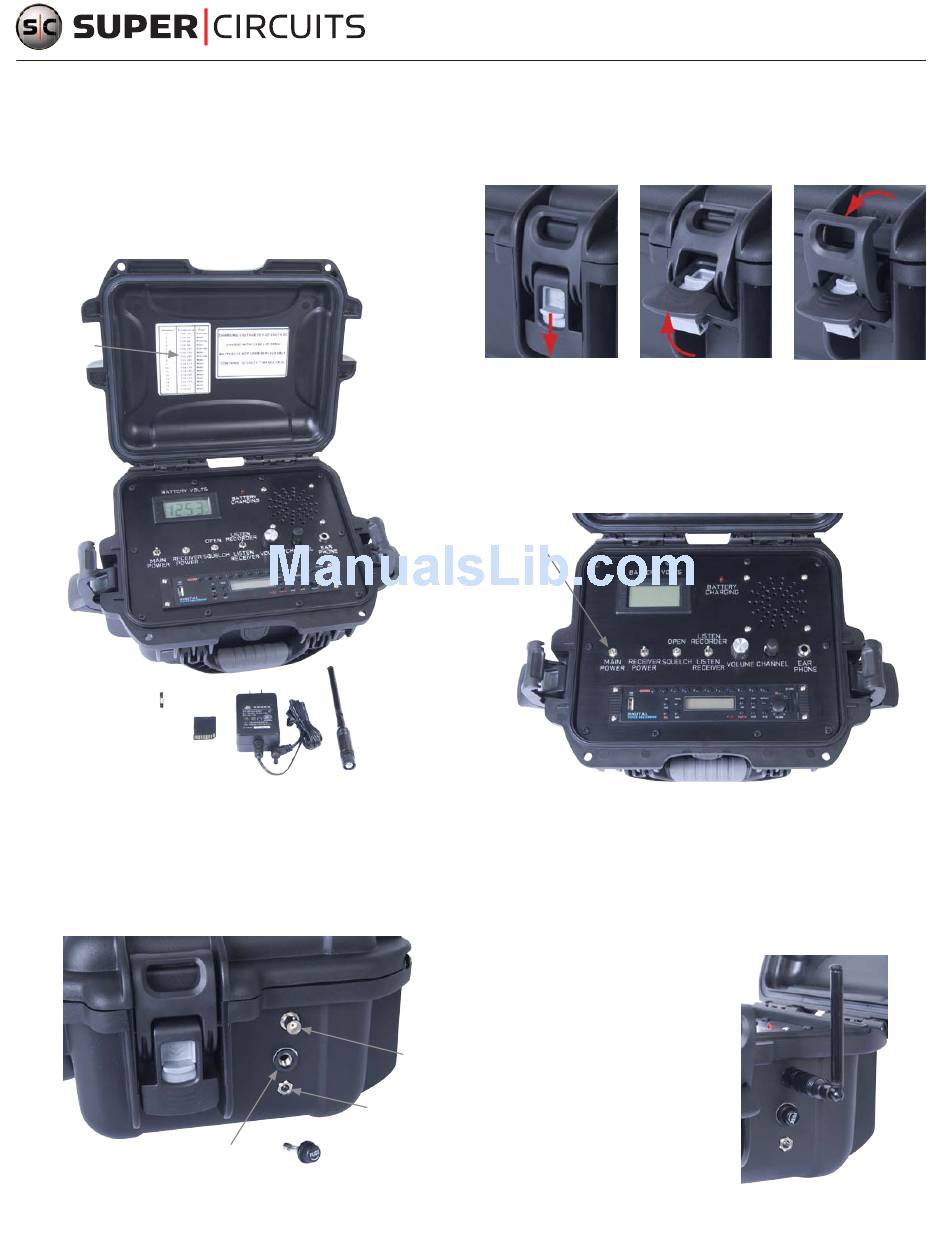

ARX-6 VHF Audio Receiver/Recorder
Quick Setup Guide
The ARX-6 is a powerful VHF band audio surveillance receiver/recorder for monitoring in-progress
investigations or recording evidence. The audio transmitter is not included. ARX-6 features include:
One-button recording to SD card media (2GB SD card installed) or USB flash drive
•
Internal battery for up to 12 hours of operation
•
Receives and records 1 of 16 preset VHF channels
•
Deck
cover
Channel/
frequency
chart
ARX-6 deck
Cover latch (2)
Fuse
SD card
ARX-6 components
Step 1.
Charging the ARX-6
Charge the ARX-6 before use. It may take up to 8 hours to fully charge the unit. A fully charged ARX-6 will
provide about 12 hours of use.
1.
Unscrew the fuse socket cover located on the right side of the case.
Fuse socket
2.
Insert the fuse provided into the fuse socket cover (see above).
1
www.supercircuits.com
Antenna
Power
adapter
Power adapter
plug
Fuse in fuse
socket cover
3.
Screw the fuse socket cover with the fuse back onto the fuse socket.
4.
To unlatch the ARX-6 cover:
a.
Push and hold down the locking tab (1).
1
b.
Flip out the bottom of the latch (2).
c.
Let the top of the latch fall away from the cover (3).
d.
Open the other latch the same way, then open the cover.
5.
On the ARX-6 deck, toggle the main power switch to off (toward the MAIN POWER label).
MAIN POWER
switch
6.
Plug the power adapter into the power adapter plug on the right side of the case (below the fuse
socket), then plug the power adapter into a standard 120 Vac outlet. The BATTERY CHARGING
indicator on the deck will light.
7.
Allow the ARX-6 unit to charge fully. When the battery is fully charged, the voltage indication is at
about 12.90 Vdc.
8.
After charging the ARX-6, disconnect the power adapter.
Step 2.
Connect the antenna
Connect the antenna to the BNC connector on the
right side of the case above the fuse socket. Adjust
the antenna so that it is vertical.
Antenna
connector
2
3
LE_ARX-6_RQ
1/9/13
