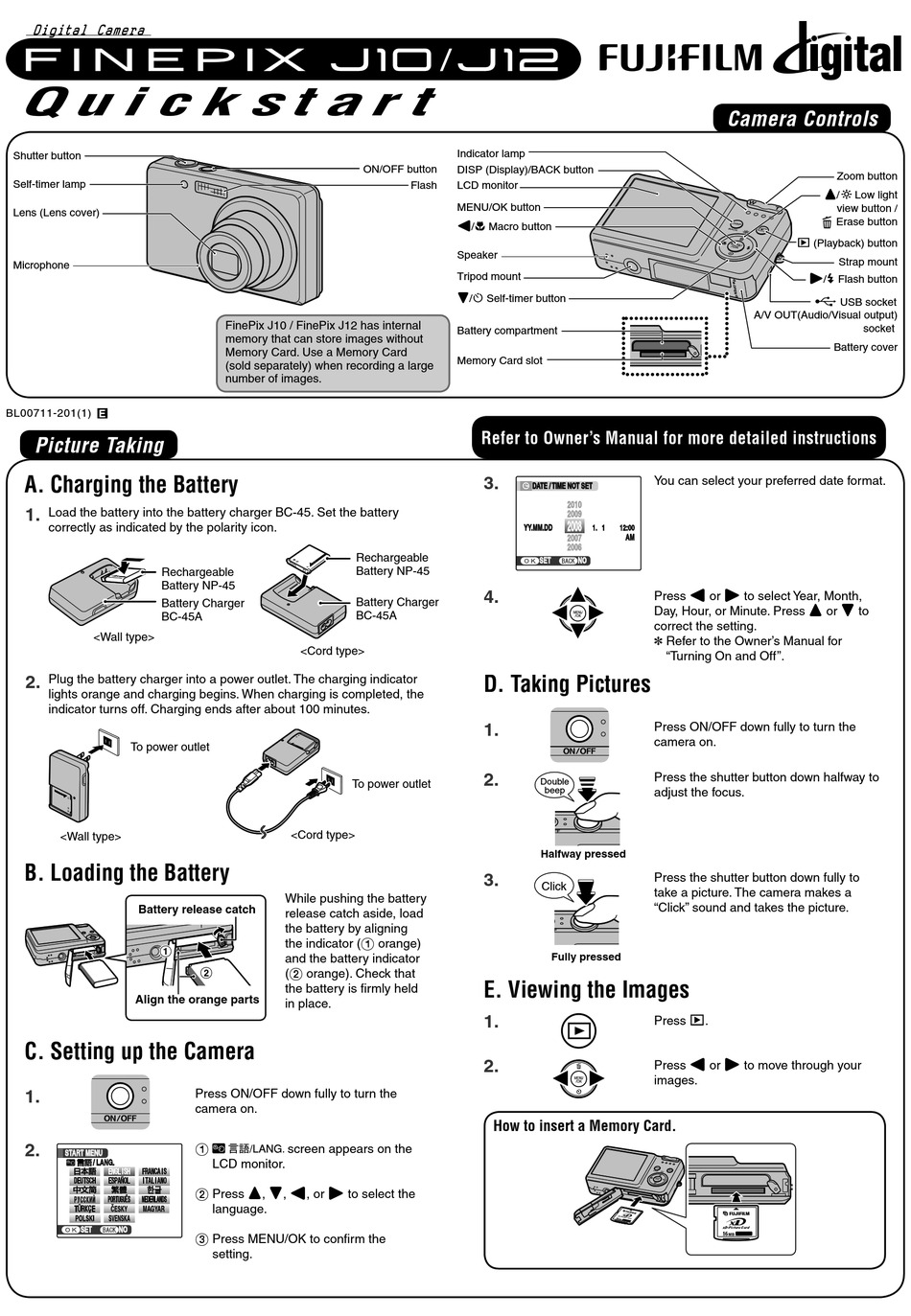

Shutter button
Self-timer lamp
Lens (Lens cover)
Microphone
BL00711-201(1)
E
Picture Taking
A. Charging the Battery
1.
Load the battery into the battery charger BC-45. Set the battery
correctly as indicated by the polarity icon.
Rechargeable
Battery NP-45
Battery Charger
BC-45A
<Wall type>
2.
Plug the battery charger into a power outlet. The charging indicator
lights orange and charging begins. When charging is completed, the
indicator turns off. Charging ends after about 100 minutes.
To power outlet
<Wall type>
B. Loading the Battery
Battery release catch
Align the orange parts
C. Setting up the Camera
1.
2.
START MENU
START MENU
/ LANG.
/ LANG.
SET
SET
NO NO
ON/OFF button
FinePix J10 / FinePix J12 has internal
memory that can store images without
Memory Card. Use a Memory Card
(sold separately) when recording a large
number of images.
Rechargeable
Battery NP-45
Battery Charger
BC-45A
<Cord type>
To power outlet
<Cord type>
While pushing the battery
release catch aside, load
the battery by aligning
the indicator (A orange)
and the battery indicator
(B orange). Check that
the battery is firmly held
in place.
Press ON/OFF down fully to turn the
camera on.
A
screen appears on the
LCD monitor.
B Press n, o, p, or q to select the
language.
C Press MENU/OK to confirm the
setting.
Indicator lamp
DISP (Display)/BACK button
Flash
LCD monitor
MENU/OK button
p/e Macro button
Speaker
Tripod mount
o/* Self-timer button
Battery compartment
Memory Card slot
Refer to Owner's Manual for more detailed instructions
3.
DATE / TIME NOT SET
DATE / TIME NOT SET
2010
2010
2009
2009
2008 2008
YY.MM.DD
YY.MM.DD
2007
2007
2006
2006
SET
SET
NO NO
4.
D. Taking Pictures
1.
2.
Double
beep
Halfway pressed
3.
Click
Fully pressed
E. Viewing the Images
1.
2.
How to insert a Memory Card.
Camera Controls
A/V OUT(Audio/Visual output)
You can select your preferred date format.
1. 1
1. 1
12:00
12:00
AM
AM
Press p or q to select Year, Month,
Day, Hour, or Minute. Press n or o to
correct the setting.
✽ Refer to the Owner's Manual for
"Turning On and Off".
Press ON/OFF down fully to turn the
camera on.
Press the shutter button down halfway to
adjust the focus.
Press the shutter button down fully to
take a picture. The camera makes a
"Click" sound and takes the picture.
Press w.
Press p or q to move through your
images.
Zoom button
n/j Low light
view button /
Erase button
w (Playback) button
Strap mount
q/d Flash button
; USB socket
socket
Battery cover
