Summary of Contents for CoCo PIR-2050

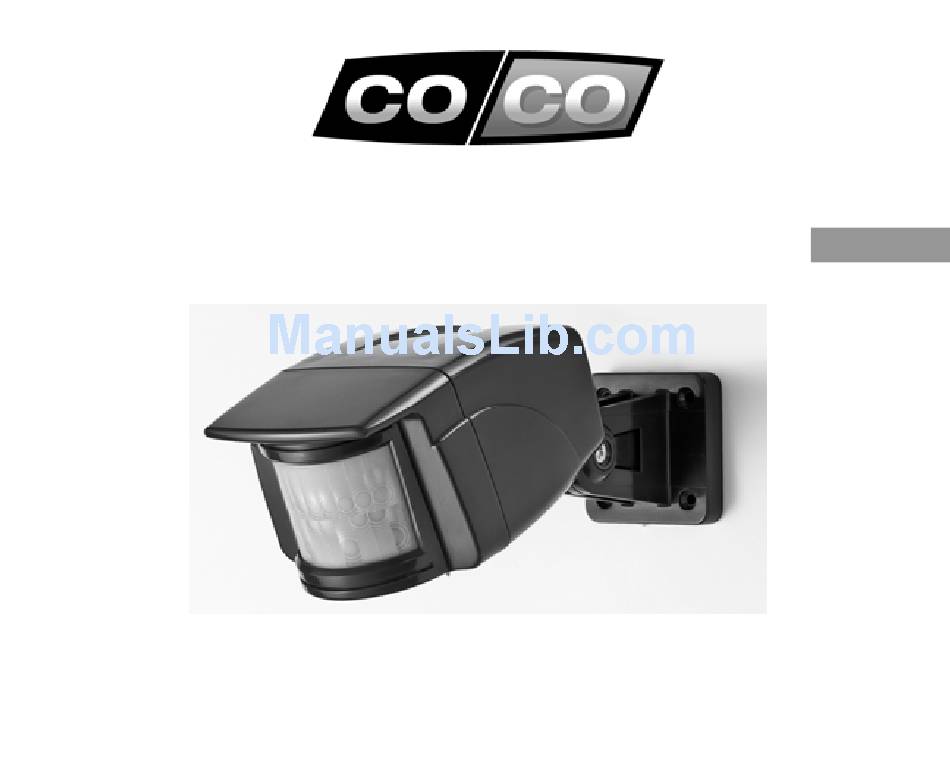

- Page 1 USER’S MANUAL version 1.1 English PIR-2050 WIRELESS MOTION SENSOR...
- Page 2 PIR-2050 WIRELESS MOTION SENSOR A: Letter code selector E: Automatic code switch B: Number code selector F: Protection cover with Picture of an arbitrary COCO mains socket switch C: Doorbell switch “Lux” switch and (not included) fastening clip D: Time switch...
- Page 3 PIR-2050 WIRELESS MOTION SENSOR [1] Unscrew the bracket from the motion sensor. [2] Determine the desired mounting location and make the necessary holes. Attach the bracket to the wall. The standard height for a good detection range is 3 metres!
- Page 4 PIR-2050 WIRELESS MOTION SENSOR [3] Use a screwdriver to firmly press the tab (under [4] Slide the sensor cover off of the housing. the protection cover) inward. Now push the tab downward to release the sensor cover. Attention: There is a seal ring between the cover and the housing.
- Page 5 PIR-2050 WIRELESS MOTION SENSOR [5] Install 3 batteries. Pay attention to the correct [6] Set the desired code. Follow the instructions in orientation of the + and – poles (as shown on the [7 – 9]. inside). The setting is dependent on the type of receiver: [7] doorbell chime, [8] receiver with manual code, or [9] receiver with automatic code.
- Page 6 PIR-2050 WIRELESS MOTION SENSOR [7] Linking to doorbell chime: (1) Set “Code” to [8] Linking to receiver with manual code: (1) Set “ML”. (2) Set the time switch to the bell symbol. (3) “Code” to “YC”. (2) Set the switch to the desired Set the letter selector to the same house code as "switch off"...
- Page 7 PIR-2050 WIRELESS MOTION SENSOR [9] Linking to receiver with automatic code: (1) Set [9a] Deleting a code from the memory of the “Code” to “YC”. (2) Set the switch to the desired receiver: (1) Push the search mode button on your "switch off"...
- Page 8 PIR-2050 WIRELESS MOTION SENSOR [10] Make sure the rubber seal ring is positioned [11] Screw the motion sensor to the bracket. properly. Click the cover onto the housing. Press the protection cover back in place. Incorrect installation of the seal ring or...
- Page 9 PIR-2050 WIRELESS MOTION SENSOR [12] Tilt the motion sensor (upward or downward) to the desired angle. The motion sensor can be tilted through a total angle of 202.5 degrees. The maximum range is 10 metres! The sensor achieves its maximum range at a height of 3 metres and an angle of 22.5 degrees.
- Page 10 PIR-2050 WIRELESS MOTION SENSOR [13] Turn the motion sensor to the desired horizontal angle. The motion sensor can be turned through a total angle of 216 degrees. However, the horizontal sensor range never exceeds 110 degrees!
- Page 11 PIR-2050 WIRELESS MOTION SENSOR [14] If necessary, move the sensor screens to [15] Press the “Lux” button on the sensor to set the adjust the sensor range. desired light level. Example: Press the button at 9:00 p.m. The The sensor screens can be reduced in size if...
- Page 12 Remarks Reminders • This product must be used in combination with at least one COCO receiver. The wireless system can be expanded indefinitely with other COCO remote controls and/or receivers. • This product is a motion sensor (transmitter) for the wireless control of one or more receiver(s) when the built-in sensor detects motion.
- Page 13 This product complies with the essential requirements and other relevant provisions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.coco-technology.com. If possible, submit this product for recycling after use. Do not dispose of the product with household trash.
- Page 14 PIR-2050 WIRELESS MOTION SENSOR Warranty and copyright This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without permission from Pan-Trade International B.V. is expressly prohibited.
- Page 15 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation PIR-2050 WIRELESS MOTION SENSOR item number 74019 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015 and EN 301 489-1/3.
