Summary of Contents for messaoa NCB752

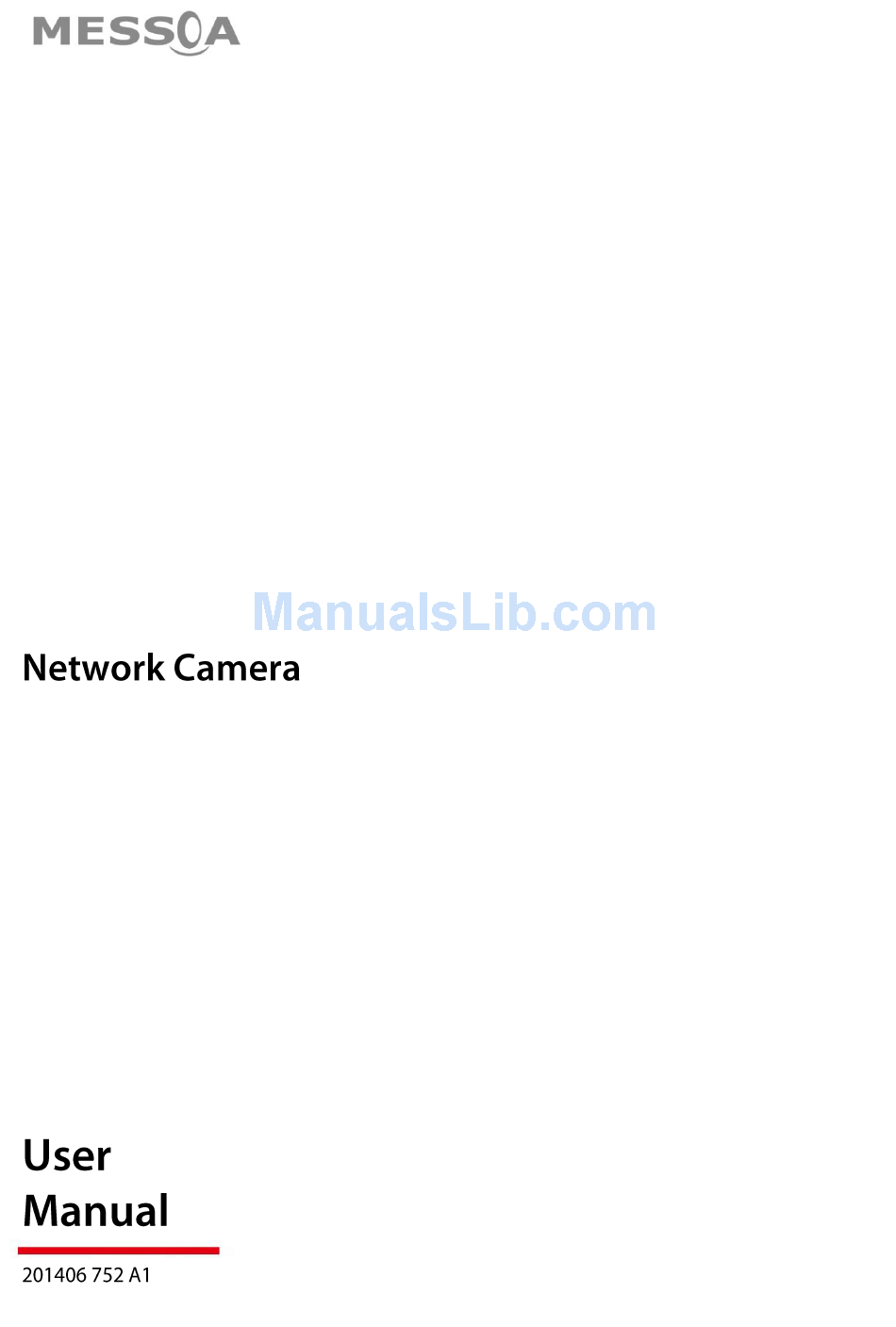

  • Page 1 NCB752...

  • Page 2: Table Of Contents

    Table of Contents Important Notices – Read Before Use ................2 Overview ......................... 2 Package Contents ......................3 Installation ........................4 Hardware Installation ............................... 4 Software Installation ................................ 4 Discover IP Cameras ................................ 4 Assigning IP Address to the device ..........................5 Discovering devices in Windows Network ........................

  • Page 3: Important Notices - Read Before Use

    Important Notices – Read Before Use This instruction manual is intended for administrators and users of the IP Camera, including instructions for using and managing the camera on your network. The use of video surveillance devices can be prohibited by laws that vary from country to country.

  • Page 4: Package Contents

    Package Contents Camera Hardware Pack Screws Camera Stand Quick Start Guide...

  • Page 5: Installation

    Installation Hardware Installation 1. Identify the type of network device. 2. If the network device supports PoE (Power over Ethernet) function, simply connect the camera to it via Ethernet cable. 3. If not, both Ethernet cable and power supply (DC12V or AC24V) should connect to device. Software Installation Discover IP Cameras Discovery Tool is a utility provided for not only searching and displaying the available IP cameras information...

  • Page 6: Assigning Ip Address To The Device

    Assigning IP Address to the device The steps of applying this search tool are described as below. 1. Launch Discovery Tool (IPCAMDiscovery.exe) 2. Assign IP address The selection is based on a single or multiple camera devices. [Set IP] This is applied to one specific camera selected from the Device List. Step1: Select one specific camera device Step2: Input desired IP information The default account information is admin / 1234.
  • Page 7 [Auto Set IP] This is applied to a group of specific cameras selected from the Device List. Step1: Select specific cameras Step 2: Input Account / Password The default account information is admin / 1234. If the values have been reset, please enter the set values.

  • Page 8: Discovering Devices In Windows Network

    Discovering devices in Windows Network If the IP camera is installed in a network with DHCP and UPnP services, after obtaining an IP address from DHCP server, it can then be discovered in “Windows Network” of a client PC, see figure below. The reason for ...

  • Page 9: Activex Add-On Installation

    ActiveX add-on Installation It is recommended to use Internet Explorer 8 or later as the primary browser to access the IP cameras website. The first-time access to the camera webpage will be prompted to install the ActiveX. To allow the installation, click “Install”...
  • Page 10 NOTE If, however, there is not any prompted message or ActiveX cannot be installed at all, it is needed to change the IE security level and settings. <Example> Internet Explorer 9: Internet Options  Security  Custom level Ensure the “Download signed ActiveX controls” setting is either “Enable” or “Prompt” selected.

  • Page 11: Accessing The Camera

    Accessing the camera Viewing the live video With the correct installation and IP settings, the camera device can be approached via network. There are three ways to view the live video from the camera: Internet Explorer, RTSP players, and NVR / CMS software. 1.
  • Page 12 NOTE IP cameras also support the other web browsers for viewing the live video such as Firefox, Google Chrome or Safari. 2. RTSP Player The live video of the camera can be played with RTSP players, such as VLC or QuickTime. ...

  • Page 13: The Live View Page

    The Live view page The following illustration shows you the front page of IP camera website. Quick Index Live Window Video Stream Operations Live Video Window Quick Functional Buttons...
  • Page 14 Snapshot: Press the button to capture an image photo Record: Press the button to start recording. Press again to stop it. Set Path: Set up a file path that video clips and snapshots can be stored. Full Screen: Press the button to enter the full screen mode. Press ESC key to return. Manual Trigger: Press the button as triggering an event.

  • Page 15: Video & Audio

    Video & Audio This section describes how to configure the video streaming of the device and the related camera image configurations. Users with Administrator or Operator authority  (see System User Management) are able to do these configurations. Click on “Setup” of Quick Index to enter the “Video & Audio” page shown as below. There are 4 sub-settings under “Video &...
  • Page 16 Camera Setting Image Setting Brightness: the luminance of image view. Default value is 8; adjustable from 0 to 16. Contrast: the ratio of luminance of white to black. Default value is 8; adjustable from 0 to 16. Saturation: colorfulness of a color related to its own brightness. Default value is 8, adjustable from 0 to 16.
  • Page 17  Mirror: rotate the image horizontally.  Flip: rotate the image vertically. Note: These operations are usually applied when camera must be installed in an exceptional position. For the example of ceiling installation, camera must be installed upside-down. Day/Night Day/Night Mode: Switch the video images for Day (plenty of light) or Night (Low light) scene.
  • Page 18 Exposure Level: Adjust Exposure level for a target exposure time that is the amount of light allowed for the image sensor. Image Enhancement: Image enhancement used for strengthen the edge of object. Higher the level, stronger the edge strengthen effect. DNR: Digital Noise Reduction DNR Mode: Auto: The DNR level is set to a default value.
  • Page 19 Video Setting Video Stream This tab provides detailed stream configurations. These settings can affect video size, quality. The maximum transmission performance can be expected under the condition of full network bandwidth. The camera supports up to 2 video streams. Each stream can be configured with following items. Video Format: H.264, MPEG4 and MJPEG are available for the selection.
  • Page 20 Enable ROI: Enable this option; you may decide the ROI of image with related stream and deliver the stream with various video resolutions. Frame Rate: It represents the number of frames that are displayed per second. Higher the frame rate implies better/smoother video stream.
  • Page 21 Before applying the Region of interest function, please click checkbox “enable ROI” on video setting page. With ROI, you may determine the monitoring region by yourself, just hold and drag any corner of the red rectangle to resize the window, the modified video resolution will show on right window in red words.
  • Page 22 Audio Setting Check the “Enable Audio” checkbox to enable the video streaming with audio. The audio encoding supports G.711 ulaw and AAC. For Audio Input Setting, there are two types of input sources: Internal / External Microphone. The default setting will be internal microphone.

  • Page 23: Network Configuration

    Network Configuration The IP Camera acts as one of the network devices. It allows user to configure the network functionalities based on applications. This section will describe the network configurations. Fundamentally, for instance, the IP assignment of the device can be done via DHCP server, static IP option or PPPoE to obtain IP from the service provider.
  • Page 24 NOTE1: If you would like to connect camera with IPv6 address, please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above. NOTE2: (Link with IPv6 address as following steps) 1.
  • Page 25 Quality Service Quality Service provides network traffic management to guarantee the quality of services in higher priority, especially when network is insufficient. DSCP (Different Service Code Point) is a 6-bit IP header which defines the service level of the packet. According to the DSCP value, routers with PHB (Per-Hop Behavior) will define a specific class of traffic for the packet, in terms of bandwidth, latency, or loss rate, etc.
  • Page 26 The HTTP port is basically provided for device’s webpage access. When the video format is set to MJPEG, user is able to retrieve the live video via HTTP URL, e.g. Http://<ip_address>/operator/get_video.cgi?channel=[1, 2] , where channel is to specify stream1 or stream2 RTSP port: RTSP (Real-Time Streaming Protocol) is used to control the live media streaming.
  • Page 27 Access IP Filter This setting also provides a basic security by filtering the accesses from other hosts. Enable this function and choose “Allow / Deny” of the listed IP addresses. Up to 15 IP address can be added in the list.

  • Page 28: Recording

    Recording This section provides the recording configuration on the camera. Unlike the recording function (Quick Functional Button) on the live view page, video can also be is recorded to the storage attached to the camera (microSD card) or local network storage (Samba) according to a time based schedule. There are 4 subdirectories in the “Recording”...
  • Page 29 Mon ~ Sun: Displays the hours in days of a week that recording is effective Src. (Source): The video source selected Dest. (Destination): The stored path for the recording file Remove: Click to delete this recording plan. Add / Edit Recording Plan Plan Name: Identifier of the recording plan Video Source: The selection of the video source to be recorded.
  • Page 30 SD Card Status:  Syncing: Display when the card database is in the process of synchronization  Ready: Display when the micro SD card is in a ready state  Detached: Display when there is no micro SD card detected ...
  • Page 31 Searching the Records The SD storage would keep massive records after the “recording plan” and/or “event handling” (see Event Management) has been launched. The search criteria are provided to look for particular records in the SD card. There are 3 categories of search criteria: 1.
  • Page 32 NOTE The search criteria can be multiple selected for each searching. For instance, the search result can be the combination of Network Fail and Digital Input. Samba This page allows user to configure the file storage via Samba. To begin with it, click Enable Samba and then input the related information.

  • Page 33: Event Management

    Event Management Event management describes the handling of events with the corresponding actions. A common case can be example distorting a captured image to a local storage (Actions), when there is a Motion Event (Trigger Condition). This chapter gives the configurations of Triggers (what to detect?) and Actions (“what to send”...
  • Page 34 Server Name: Identifier of the event server Server Type Email: Send the media file via email when an event is triggered.  Mail Server Address: Enter a host name or IP address of the email server.  User Name: Enter the user name of the email account. ...
  • Page 35 Motion Configuration There are 3 MD (Motion Detection) areas that can be enabled. Each MD can be individually enabled/disabled, defined the covering range and trigger sensitivity. To enable and verify the MD, follow the steps provided below: 1. Check the box to enable the motion area 2.
  • Page 36 Audio Detection If you have enabled audio function for the camera, you may enable audio detection function to detect the monitoring area whether has any abnormal sound over the threshold, this could be an event source to trigger event notification and alarms. Tamper Detection With tamper detection, the camera is capable to detect tampering and could be event source to trigger event notification and alarms.
  • Page 37 DI/DO Setting The DI/DO setting provides the information of Digital I/O’s initial and current status. The initial status can be configured while current status is detected by the IP camera system. Digital input (DI) can be configured as one of the trigger conditions. When its current status is different from the initial, the trigger is activated.
  • Page 38 Event List List a summary of configured events. That is the selection of trigger condition(s) and the corresponding actions, as well as the scheduling. Up to 10 event objects can be configured. To begin with it, click on “Add New” button to extend for the detailed configurations.
  • Page 39 Event Name: Enter an event name, e.g. Motion Detection, to identify this configured event. Select All: 24/7 continuous recording Schedule Pattern: User-defined time frame Triggered by: This describes the selection of trigger conditions which include:  Motion Detection: Select the motion detection area(s) used for trigger condition. To enable and configure the motion detection areas, go to Motion Configuration.

  • Page 40: Examples Of Event Handling

    Examples of Event Handling The following cases are provided as the examples of Event Handling. Scenario 1 While viewing live video, user can manually trigger an event anytime simply by pressing the button, on the web page. It will then start generating a video clip to SD card and sending email with the captured pictures.
  • Page 41 Step 2: Configure Media Type  On the same web page, configure the Media Type. For the following example, the system is configured to capture 1 picture before (pre-alarm) the event and 2 pictures for the event and after (post-alarm). For video clip, both pre- and post-alarm are configured for 8 seconds video record.
  • Page 42 Scenario 2 A user is to define the motion detection area(s) in the camera view. When someone goes across these areas, the camera is aware of the trigger activated and starts generating video clips to the SD card. Meanwhile, an illuminator device attached to the camera will be lighted up. This detection should be activated from 22:00 to 08:00 every day.
  • Page 43 - Event of Motion Detection - Check the box to enable this event. Give a name of this event setting; e.g. MD Event (stands for Motion Detection). This is an identity of an object of event handling. Select time frame in the schedule table, for the requirement that is available from 00:00 to 08:00 every day.

  • Page 44: System Options

    System Options System Options provide users to obtain and configure the system settings of the IP camera system. It contains the page of System Information, Date and Time, User Management, Maintenance and Log Service. The details about each subcategory will be described as below. System Information The page gives details of the IP camera system.
  • Page 45 Date and Time This section describes the date/time adjustment for the IP camera system. The ways to adjust the IP camera’s date/time can be automatic (Synchronize with NTP Server / PC) or manual settings. Current Date & Time Display current system date/time of the IP camera. The date format can be changed from the drop-down list in Configure Date &...
  • Page 46 User Management By default, the access to the camera is user authenticated. For security, the IP camera should be restricted to account only accesses. It is able to enable/disable user accounts, as well as to manage the added users in this page.
  • Page 47 Maintenance This page provides tools for camera system maintenances. Reboot: Restart the camera system Restore to Factory Default: Restore camera factory default settings. The network setting can be kept by checking the “Except Network Type” checkbox. Backup Configurations: The system settings can be backed up and exported to a file. The file can be applied to upload the previous user settings to the camera, or other cameras.

  • Page 48: Connectors& Led

    Connectors& LED Front and Back Panels Focus Assist Button I/O connectors – Pin definitions Signals Function RX-IN Digital Input Ground DO-OUT Digital Out Schematic diagram of Digital I/O...

  • Page 49: Led Indicators

    LED Indicators There are 2 type of LED indicators; RJ45 LEDs (back panel) and System LED (front, bicolor). These LEDs can help to recognize the current device status. RJ45 LEDs for Network Status: LED1 (Green) LED2 (Amber) 10 Link / Traffic Steady ON / Flashing OFF / OFF 100 Link / Traffic...

  • Page 50: Focus Assist Button

    Focus Assist Button Focus Assist Button allows users to adjust the camera focus with precision by a simple click. [Steps of Process] Step 1: "Press" Focus Assist Button  Rotate the lens focus clockwise or anticlockwise to either end (N or ∞) ...

  • Page 51: Troubleshooting

    Troubleshooting Check firmware version Firmware version may imply the functionalities’ updates or availability in the camera system. Therefore, in the first step of troubleshooting and then reporting, it helps to locate the found issues. Newer version firmware may have these issues corrected. The version code can be found in Setup ->...
  • Page 52 Figure 1 Figure 2 Figure 3...

  • Page 53: Recover Device Settings

    Recover device settings In some cases, camera system does not respond to any operation. A certain recovering processes would help to get the unit back to initial status, so that it can resume operable / configurable. This will be the operations on the “Reset Button”.

  • Page 54: Technical Specifications

    Technical Specifications Video Sensor Type 1/2.7" 2MP progressive scan CMOS sensor Active Pixels 1920 x 1080 (HxV) Compression H.264/MPEG4/Motion JPEG Streaming Dual simultaneous streams Resolution 1920x1080, 1280x720, 800x450, 640x360, 320x180 Max. Frame Rate Full HD (1920x1080) at 30/25fps (NTSC/PAL) Day/Night Mechanical (ICR) D/N Control Day/Night Mode Auto/Day/Night...
  • Page 55 Operating 0ºC ~ 50ºC (32ºF ~ 122ºF) Temperature Operating 20~ 90% RH Humidity Storage -10°C ~ 55°C ( 14°F ~ 131°F ) Temperature Regulatory Approvals CE, FCC, RoHS Ordering Information NTSC: NCB752-N5-MES; Model No. PAL: NCB752-P5-MES Accessories Wall Mount Stand...
