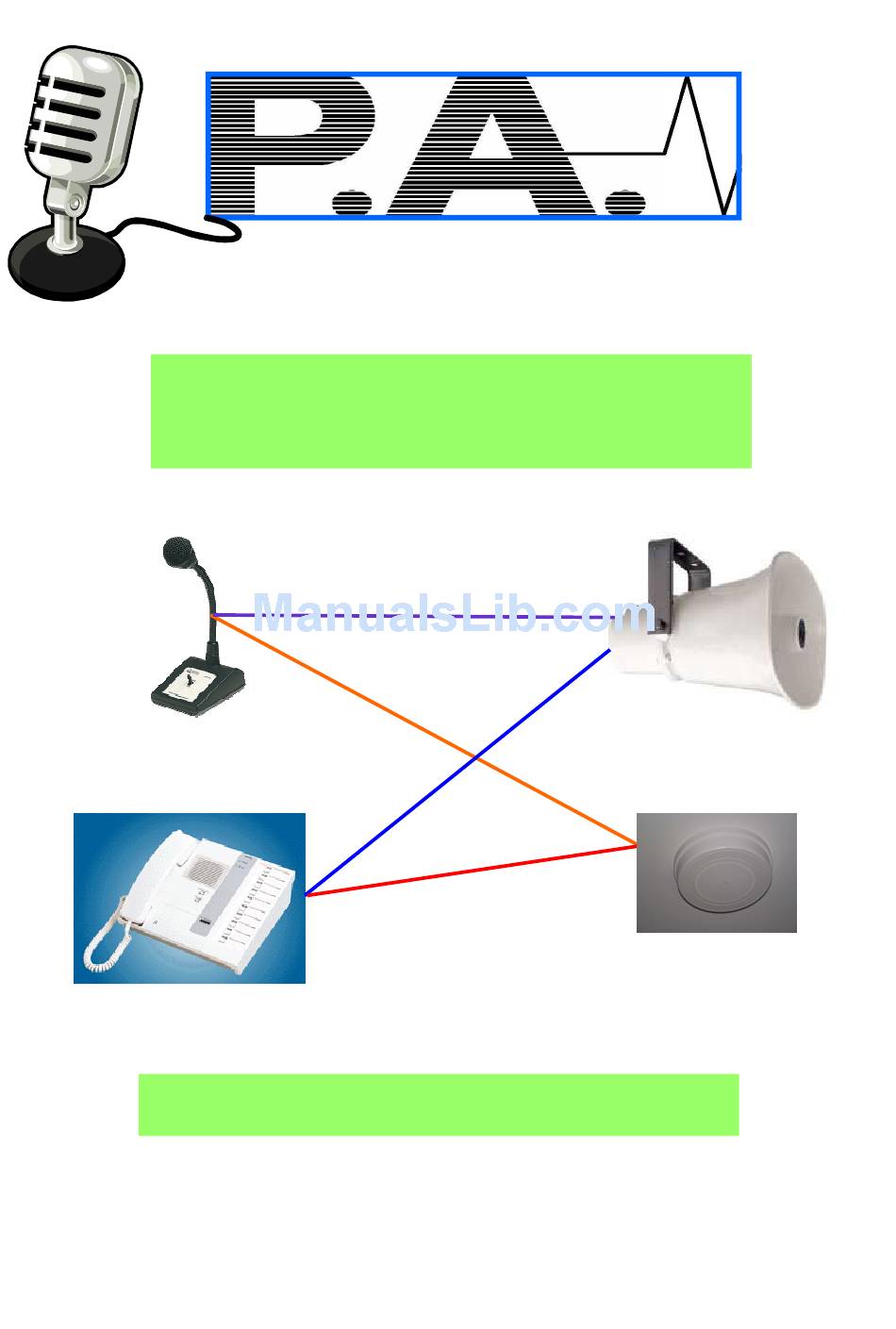

- Page 1 DELUXE SCHOOL PA AND INTERCOM SYSTEMS OPERATING MANUAL Version 2.4—2014...
- Page 2 Introduction Congratulations. Your investment in a new PA Matthews Audio integrated school communications system will now give your school years and years of trouble free operation. If your system is a completely new install then this booklet will explain all the equipment items and how they work. However if your system was a renovation of an older one and still contains some older components (such as an older PA amplifier or music playout equipment) then the operation principles are the same but the actual photographs here may not always be the same as your system.
- Page 3 Regular Drills (one per term) should be held in the school to familiarise staff and students with these tones. PA Matthews Audio also strongly recommend these tones be briefly TESTED every month (as a minimum) to ensure they are operational in the case of an emergency.
- Page 4 When the office hangs up, Party A and Party B may continue to talk k.) System will clear when both parties hang up. Note : PA Matthews Audio recommends that the intercom unit be switched off and unplugged from the main termination box during school holidays.
-
Page 5: Detailed Instructions
Detailed Instructions—Page 5 2.1) Theben TR622top2 Bell Timer The timer controls the BELL sound and the LINE UP MUSIC. Bell : Channel 1 controls the BELL. Each bell is programmed as a PULSE with a normal duration of 10 seconds. Each programmed time is written in to a day (usually Monday or Day 1) and then “Copied”... - Page 6 Detailed Instructions—Page 6 To completely erase all settings from Using the OBELISK storage card BOTH CHANNELS of timer and start again The OBELISK card is used to transfer programs from 1.) Press MENU & Press OK the USB computer programmer to the timer (see next 2.) Press 3 times (DELETE)
- Page 7 Detailed Instructions—Page 7 2.2) Using the Obelisk card Programmer (continued). Using the OBELISK top2 : 1.) Install the program on the CD to your computer and open the program. Click on “Termina top2” and then select “tr622top2” and then “OK”. 2.) Connect the programmer to a free USB slot.
- Page 8 Detailed Instructions—Page 8 2.3) Changing the audio files on the MP3 Player. Overview : The A1741 unit plays MP3 files on demand as controlled by the PA system timer and control box. Each file is To Remove / Insert SD Card placed in a specific folder.
-
Page 9: Troubleshooting Guide
Troubleshooting Guide—Page 9 This section will enable you to trouble shoot the system so you can either fix most problems yourself or know what to tell us when you call for service. It’s written as a series of common problems, the likely fault, and what you should do to test or remedy the problem. -
Page 10: Service Contact
Speaker taps not correctly set when system Call service / warranty repair was installed or system incorrectly specified. SERVICE CONTACT : PA Matthews Audio (02) 4576 5571 zordmaker@hotmail.com...
