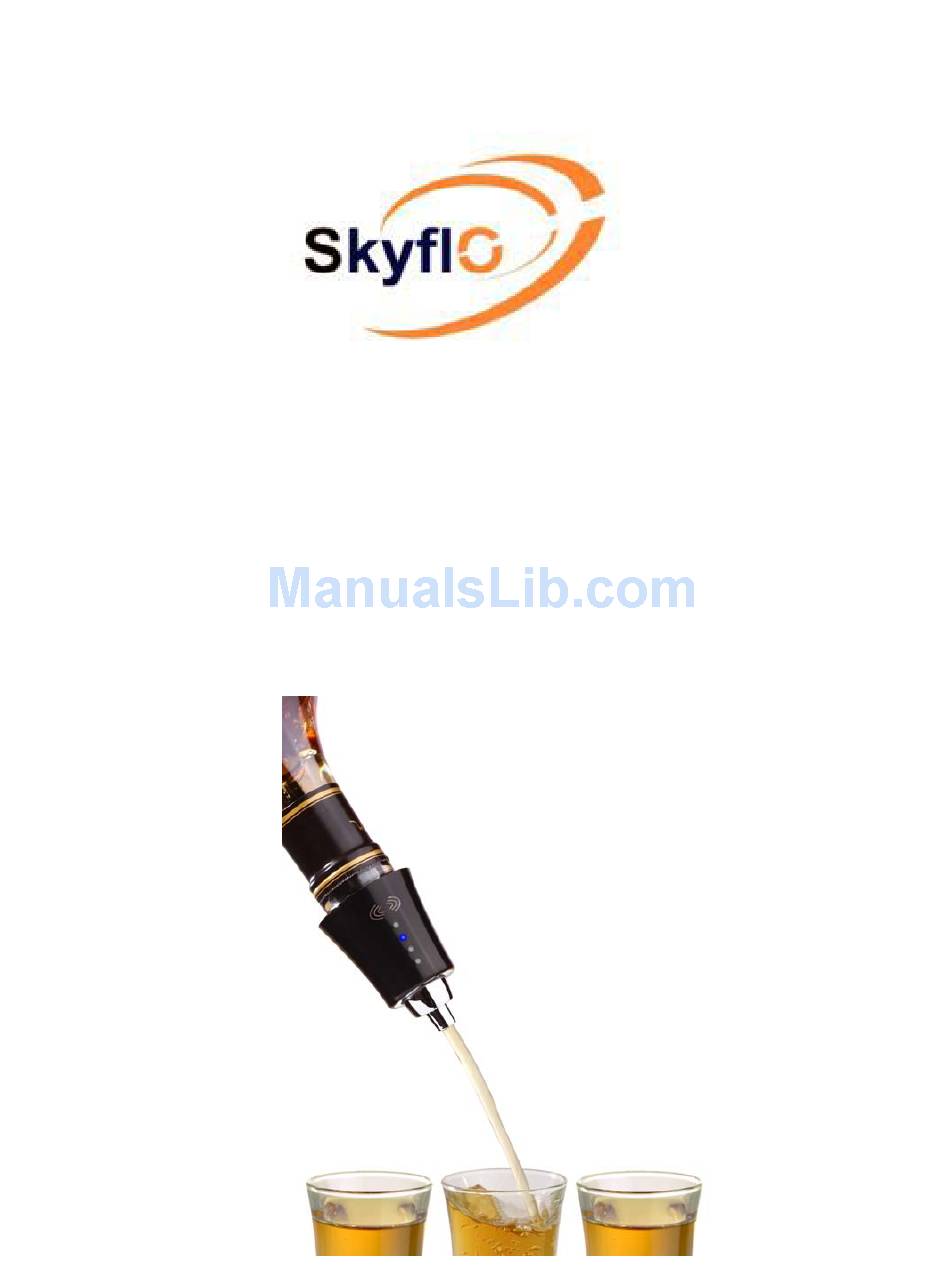

Page 1 Wireless Liquor Management System User Guide ...
Page 2 PREFACE The purpose of assembling this Skyflo User Manual is to provide basic information required to use and configure our products. This manual is a “work in progress” – if you see corrections, or would like to suggest additions or other changes which will make this reference more useful to yourself and others, please let us know.
Page 3 3 INDEX Page Using SKYFLO Pour Spout Using the Washing Key Using a Charging Key Calibration Key for SKYFLO Pour Spout Beerflo – Wireless Beer Monitor Beerflo Box – Wireless Beer Monitor Optic pearl Skytag FAQ Frequently Asked Questions ...
Page 4 4 Using SKYFLO™ POUR SPOUT Important – when shipping Skyflo always ensure you put it to Sleep using the washing key. RF devices must always be switched off in transit! Preparation Unpack the box and check contents as per the packing list.
Page 5 Low battery status is printed on your report. Technical Comments The Skyflo Spout is currently designed to transmit pour data to the Master immediately, and if it gets no response, to continue sending after 2/4/8/16/30/60/120/240/480 seconds, then attempt to transmit every 8 minutes until it succeeds.
Page 6 6 Charging the Washing Key If you depress the Washing Key button and no LED blinks it needs charging. Plug the Washing Key to the power supply and the ‘open’ light will turn red. This signifies normal charging progress. When the Washing Key battery is full the Washing Key ‘open’ light turns green. Recharge can be done in two hours.
Page 7 Using a Charging Key to charge a Spout Charging the Charger: A full charger can charge approximately 1.5 Skyflo Spouts. The Charging Key should be fully charged before charging a Spout. Plug in the Charging Key and wait for the “Charger” red light to go out.
Page 8 8 Signs of proper charging process: “Spout” LED blinks blue, meanwhile Spout “top LED” blinks red. Nb. When the Spout runs completely out of power, the “top LED” will not immediately blink red after the Key is placed on it. It wakes up the Spout = Spout “top LED” blinks blue and the motor runs - opening and closing one time.
Page 9 LED increase LED How to Use: Sit Skyflo Spout on the bottle, but ensure the bottle presence sensor is not depressed. Put the Calibration Key on Spout. Adjust Pour size to smaller: Push the Key button for 1 second and the ‘decrease LED’ light will turn green; Push Key button once and the same key light blinks once.
Page 10 10 Adjust Pour size bigger: Push the Key button for 1 second and ‘ increase LED’ light will turn green. Push the Key button once and see same key light blinks once. This means the Spout pour rate is increased 0.5%; each push should follow with the ‘increase LED’ blinking green once. When you have finished leave the key on Spout for about 3 seconds, you will then see the ‘decrease LED’...
Page 11 11 Skyflo™ Wireless Beerflo Brief Instructions to use the Wireless Beerflo For security reason during transportation, the Beerflo was previously entered Cleaning Line mode to avoid sending signal. After unpack it for install, the first thing is to exit Cleaning Line mode, refer below steps.
Page 12 12 Mind how the RFModule is connected to the Flow Meter. (RF Module “+V” hole to Flow Meter “+V” pin) Attention: wrong connection is prohibited as it may lead beerflo over heated and battery flat!! ...
Page 13 With LCD display, touch keypad, and 8 beer line LEDs 1. Power is DC12 volts. **Do not connect this power supply to any other Skyflo product. 8 flowmeter connections, RS485 port (not in use) & DC power 12V (though silkscreen is 24V).
Page 14 14 3) Connect the flowmeter cable to the Beerflo PCB. • Printed Circuit Board: “V” for Power “S” for signal “G” for Ground • Titan Beverage Meter 300-010: Red cable = “V” for Power Blue cable = “S” for signal Black cable = “G”...
Page 15 15 3) Connect the Beerflo Monitor power line, enter Menu and find “Remove keg”, input your beer line channel (numbered from 1 to 8). Touch button “Enter” on Beer Monitor Keypad, you will be able to see the Beerflo device ID on the Skyman screen, input a name for this Beer Monitor (maximum 5 digits).
Page 16 16 In “LCD default display” mode, touch “Fn”+”#” to display system information 1. Version 2. Device ID 3. Time (auto synchronize with Master) Format: “Month-Day Hour:Minute:Second” 4. 6,7,8,9. Some debug data 5. Pour data in the buffer; “A-X-X”: A is saved events in the memory, X for debug. A.
Page 17 17 Note: If the beer line is left running with water without entering cleaning mode previously, Beerflo will send every 10,000 pulses to Master Unit. Application software must treat those big readings plus final small readings as cleaning events. Otherwise it will influence the accuracy of dispense record.
Page 18 18 Wireless Optic Pearl Economic Liquor Control Solution Wireless pearl counter The system comprises of: Standard Measure Brackets, pearl, wireless pearl counter, bottle inserts. Standard Measure Brackets Pearl & bottle inserts. Available pearl: 25ml, 35ml, 50ml; bottle insert for 75cl & 1 liter bottle. ...
Page 19 19 Using the Optic Pearl Replace your old support with Replace your old support with the Skyflo Optic Pearl support the Skyflo Optic Pearl support Insert the optic into the support Skyflo Optic Pearl support Bottle switch Dispensing switch Optic Pearl...
Page 20 20 How to Replace Pearl Counter Battery Button Cell Battery: CR2032, 3V 200mAH Screw off the Cover of Pearl Counter. Take Battery Holder PCB out of Counter Housing 4. Use a non-metallic tool to push battery completely out of the holder. 5.
Page 21 21 Skytag Attached to individual bottles, Skytag wirelessly transmits pour data by the millisecond when the bottle is tilted. ...
Page 22 It will not pour if it cannot sense liquid. For high alcohol drinks the Spout should be configured to a higher sensitive setting. 5 After unpack Skyflo Spout, I insert it on a bottle with whisky, why it starts free pours without stopping? When I want to change size by touch the button, I see middle 2 LEDs turns on and turns off.
Page 23 Please charge the spout as it shows low battery by blinking red. 16 How to do if I want to compare the POS report with Skyflo control report? Skyflo system is not connected to any POS system yet, keep the Skyflo spout and Master within max RF range to make sure the pour data will be transmitted.
