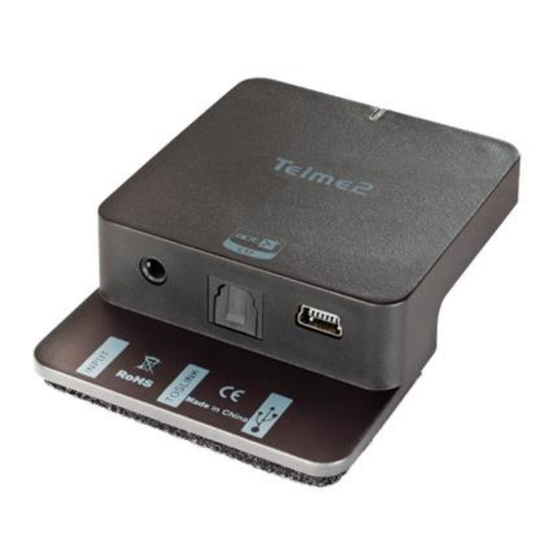

Telme2 TosBlue-X Installation And User Manual

Hide thumbs

Installation

TosBlue-X

Installation Guide for TosBlue-X and TosBlue-X2

NOTE: The installation procedure for both products is the same.

If your TV is equipped with an optical output port (SPDIF), then you are

recommended to use the enclosed optical cable – and not the 3,5 mm signal cable.

If your TV does not have the optical output, then use the 3,5 mm stereo signal

cable instead.

(Only 2 of the 3 included cables should be used).

Optical cable

The unit should be located on back of your TV so that the top of the unit is visible

from the front.

Find a flat surface on the back of your TV and make sure the surface is clean.

Both ends of the optical cable are protected with plastic caps. Remove the

caps.

User Guide

and

TosBlue-X2

and

3,5 mm cable

TosBlue mounted on the back of the TV

for

USB cable

Table of Contents

Need help?

Do you have a question about the TosBlue-X and is the answer not in the manual?

Questions and answers

Summary of Contents for Telme2 TosBlue-X

Page 1 User Guide TosBlue-X TosBlue-X2 Installation Guide for TosBlue-X and TosBlue-X2 NOTE: The installation procedure for both products is the same. If your TV is equipped with an optical output port (SPDIF), then you are recommended to use the enclosed optical cable – and not the 3,5 mm signal cable.
Page 2 NOTE: Do not sharply bend the optical cable as it may be severely damaged, causing weak or no signal to go through. Connect one end the optical cable to the unit. ( ) Make sure that Middle connector the cable is well connected …..i.e. well pushed into the socket. NOTE: If not well connected, no or weak signals may be transmitted and you may experience sound disturbance, or no sound at all!
Page 3 User Guide for Tosblue-X TosBlue-X can only connect with one receiving unit – for example one headset. Once you have installed the TosBlue-X unit – you are ready to use it for the first time. Turn your TV ON. The LED on top of the TosBlue-X unit starts flashing quickly red and blue.
Page 4 When paired, the TosBlue-X LED will be emitting a blue light fading slowly in and out - indicating the unit is paired and ready to transmit sound. The LED in the headset will be flashing blue now and then – indicating the unit is paired and is receiving sound from TosBlue-X.
Page 5 User Guide for Tosblue-X2 TosBlue-X2 may connect with 2 Bluetooth receivers at the same time – and the pairing procedure is slightly different. Do this: Turn your TV ON. The TosBlue-X2 LED starts flashing quickly red and blue, indicating the unit is in “Bluetooth Search Mode”...
Page 6 The LED of the headsets will be flashing blue now and then – indicating the unit is paired and receiving sound from TosBlue-X2. Please consult the User Guide of your Bluetooth receiving device for the exact procedure of pairing for the first time – and for reconnecting later on. Connecting the receiving Bluetooth units the following times to TosBlue-X2 The next time you want to connect the headset to the TosBlue-X2 unit, you simply turn the BHX headset A ON.
Page 7 IMPORTANT INFORMATION TosBlue-X and X2 are equipped with the best aptx technology for hi-fi sound performance and no sound delay. Our BHX headsets are equipped with same technology. This means that when the TosBlue units are used with our BHX headsets you will notice no sound delay compared with the sound from the TV speakers.
