Summary of Contents for StoneAge FC-SG

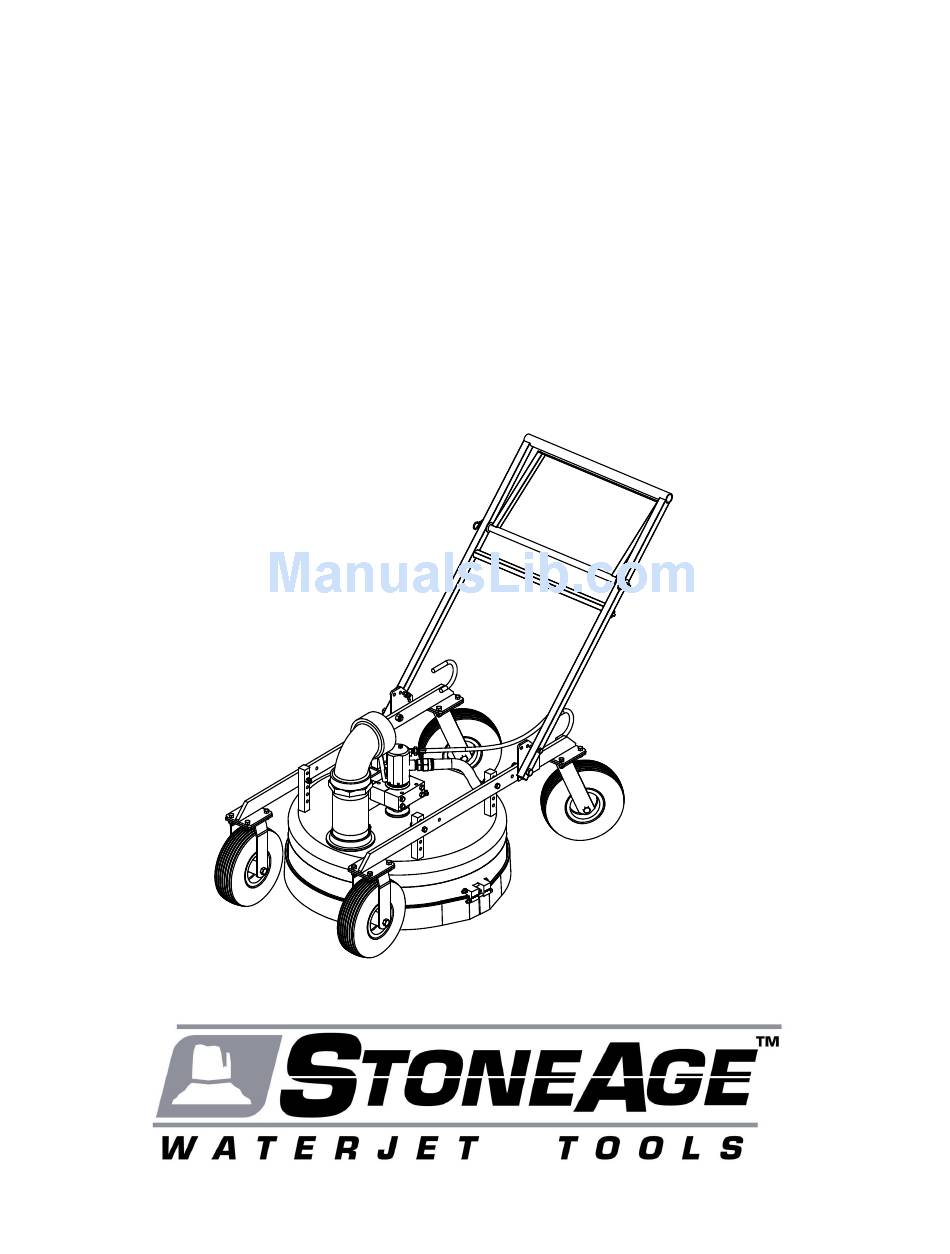

- Page 1 WATERBLAST FLOOR CLEANER FC-SG FC-SV OPERATION AND MAINTENANCE MANUAL 54 Girard St. Durango, Colorado 81303 (970) 259-2869 Phone (970) 259-2868 Fax www.stoneagetools.com sales@stoneagetools.com © 09/05...
- Page 2 All operating personnel responsible for the care of this equipment should be familiar with the information in this manual. If you have any questions or problems with this equipment, please contact the distributor you obtained the product from, or the manufacturer: StoneAge, Inc. 54 Girard St. Durango, CO 81303 970-259-2869 Phone 970-259-2868 Fax www.stoneagetools.com...
- Page 3 WHEEL ORIENTATION There are two possible wheel orientations for FC-SG Floor Cleaner. When the swivel wheels are located at the front of the assembly, the machine is easier to turn. When the swivel wheels are located at the rear of the assembly, it is easier to travel in a straight line.
- Page 4 3.1 Angle Settings/Adjustment Flow Rate, GPM !!!WARNING!!! The angle of the arms controls the rotation speed and direction. .024Ø .032Ø .035Ø .038Ø .042Ø .047Ø Always angle the arms so that the jet torque tightens the manifold 16° 10° 8° 7° 5°...
-
Page 5: Parts List
4.0 PARTS LIST Parts list shown for 15,000 and 20,000 psi self-rotating assembly. Air or hydraulic powered assemblies include the SG-40/50 or UH-40/50 assembly; these parts are shown in their manual in the appendix if applicable. AF 063-M12 Adapter FC 018 Splash Guard FC 112 Wheel, fixed... - Page 6 FC 200-27 5.0 FCSV EXPLODED ASSEMBLY DRAWING Push Handle FC 307 Cotter Pin (2) FC 306 Dump Handle FC 302 CRS-M Dump Cable Swivel FC 203 Dump Handle Pin FC 122 Mount Collar FC 139 Spacer Block (2) FC 123 Vacuum Elbow FC 311 Dump Hose...
- Page 7 5.1 Wheel Orientation Mount Type 'A'- Fixed wheels in Rear Mount Type 'B'- Fixed wheels in Front for Maneuverable Travel for Straight Line Travel Mount Point Front Rear Type 'A' Front Wheel Mount Rear Wheel Mount Mount Point Type 'B' Mount Type A: This configuration allows for maneuverability Mount Type B: This configuration allows for straight line and ease of turning.
- Page 8 FC 122 Swivel Mouning Collar Half (2) There are two different head units that can be placed on the FC-SG Floor Cleaner; the 15K model and the 20K model. The 15K model uses a pipe thread seal/fitting to connect the arms to the manifold.
-
Page 9: Limited Warranty
StoneAge, Inc. shall in no event be held liable for damages or delay resulting from or arising out of defective products nor for consequential damages or otherwise except for repair or replacement of items of defective material or workmanship aforesaid.
